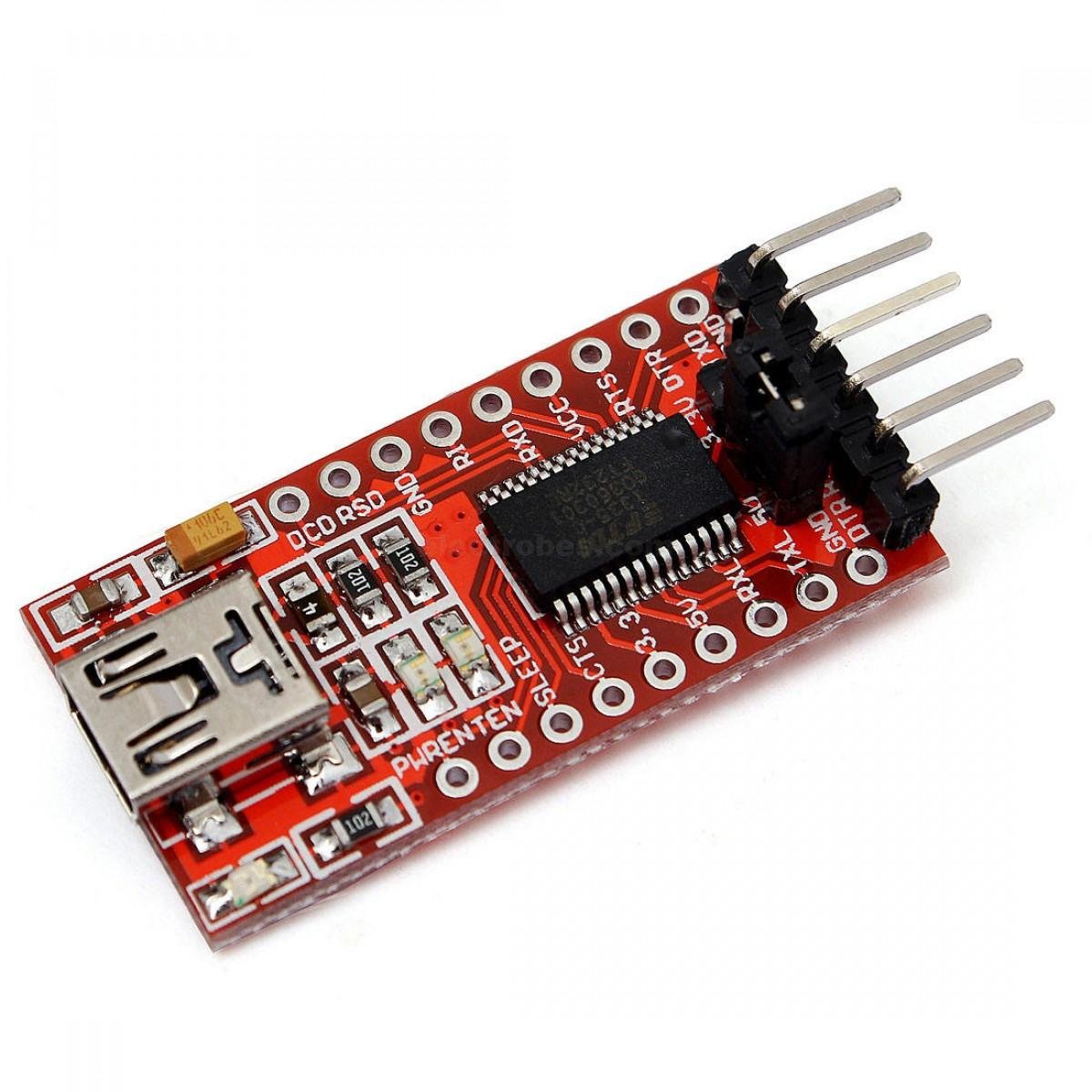

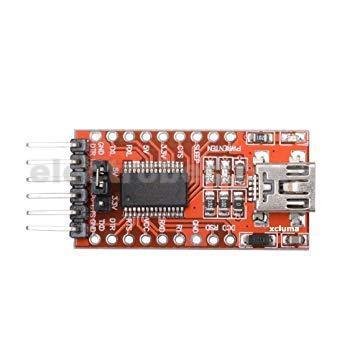

FT232RL 3.3V 5.5V FTDI USB to TTL Serial Adapter Module for Arduino Mini Port

FT232RL 3.3V 5.5V FTDI USB to TTL Serial Adapter Module for Arduino Mini Port. Draw out all signal port of FT232RL chip. Buy online in Pakistan at Electrobes.

Compare
Availability:

In stock

 380  400

In stock

FT232RL 3.3V 5.5V FTDI USB to TTL Serial Adapter Module for Arduino Mini Port

USB TO UART TTL 5V 3.3V FT232RL Download Cable To Serial Adapter Module is a basic breakout board for the FTDI FT232RL USB to serial IC. Pinout of this board matches the FTDI cable to work with official Arduino and cloned 5V Arduino boards. It can also be used for general serial applications. The major difference with this board is that it brings out the DTR pin as opposed to the RTS pin of the FTDI cable. DTR pin allows an Arduino target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. With auto reset pin any Arduino board that has the reset pin brought out to a 6-pin connector.

Features of FT232RL FTDI usb to TTL:

  • Chip: FT232RL
  • Draw out all signal port of FT232RL chip.
  • RXD/TXD transceiver communication indicator.
  • USB power supply, can choose 5V or 3.3V ,set by jumper.
  • With over current protection, using 500MA self-restore fuse.

Specifications of FT232RL FTDI USB to TTL:

  • Pin definition: DTR,RXD,TX,VCC,CTS,GND
  • Pitch: 2.54mm
  • Module size: 36mm(length)*18mm(width)
  • Interface: Mini USB

Package included:

1X FT232RL USB to TTL Serial Adapter Module

FT232RL 3.3V 5.5V FTDI USB to TTL Serial Adapter Module for Arduino Mini Port FT232RL 3.3V 5.5V FTDI USB to TTL Serial Adapter Module for Arduino Mini Port at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan

  • Chip: FT232RL
  • RXD/TXD transceiver communication indicator
  • USB power supply, can choose 5V or 3.3V ,set by jumper
  • With over current protection, using 500MA self-restore fuse
  • Pin definition: DTR,RXD,TX,VCC,CTS,GND
