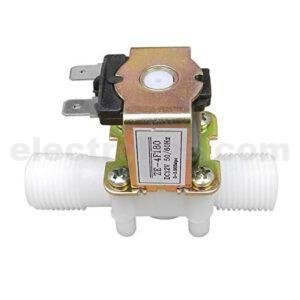

1 inch 24V AC/DC Solenoid Valve Normally Closed

Product Description:

• UW series is direct diaphragm, multiplex, connected, conductive and normally
• 2/2-way closed (NC) solenoid valve.
• Can operate directly under low pressure
• Fluid type availability: water, air, light oil
• Acceptable for Viton(130℃), Silicone(130℃) and EPDM(130℃) customization

Usage:

• Water and low viscosity fluids.
• Gases

Features:

• Durable and practical.
• Made of high quality plastic and metal, long life.
• Very convenient to use, open or close when power on or off.

PRECAUTIONS:

. Before pipelining, the pipeline line should be very clean without any contaminants or anything else should not be existed.

. To extend the product life, Y-line filter should be installed in the front end of the solenoid valve.

. AC voltage tolerance: ± 10%; DC voltage tolerance: ± 1%

. It must be installed horizontally; vertical installation is not recommended.

Not Suitalbe for the fluid as below:

. Liquid state when at high temperature; solid status when cool.

. Corrosive fluid

. Viscosity greater than 20cst
