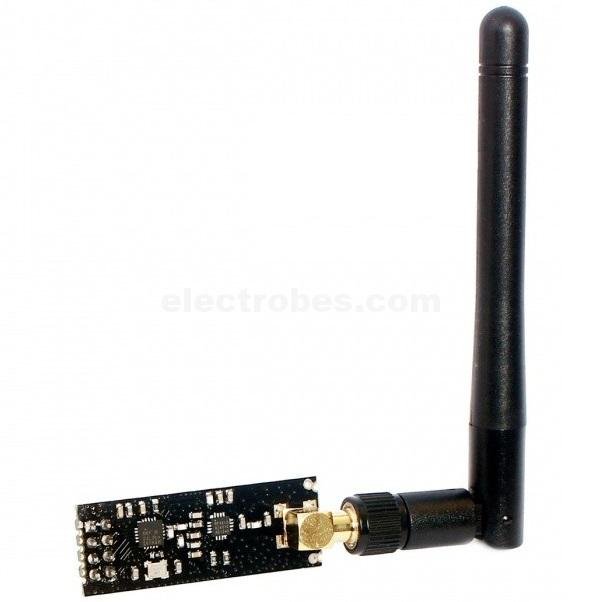

2.4GHz NRF24L01+PA+LNA Wireless RF Module
2.4GHz NRF24L01+PA+LNA Wireless RF module operates in Free license 2.4G ISM band and can also be composed of star network. Buy online in Pakistan.
Availability:
In stock
₨ 550
In stock
2.4GHz NRF24L01+PA+LNA Wireless RF Module
NRF24L01 + PA + LNA wireless module operates in Free license 2.4G ISM band, you can do point to point application and can also be composed of star network. The Data transmission chip NRF24L01+, and match with the department’s professional design, Add the the chip of power PA and LNA, RF switch, band pass filter composed of a professional full two-way RF power amplifier, making the effective communication distance has been greatly expanded. Small size: 45.54mm x 16.46mm, easy to embed in any space-constrained products, customers can use the SPI port of Arduino or any other MCU to control NRF24L01P + PA + LNA, Wireless module to complete long distance wireless data transmission system design.
Features
- It uses 2.4G global open ISM band, with license free.
- Transmit power is greater than +20 dbm. Support six-channel data reception. 2Mbit/s speed makes high-quality VoIP possible Low
- Operating voltage: 2.7 to 3.6V
- Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
- Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal; SPI interface facilitates the communication with MCU I/O port.
- Facilitate the development for customers, without development RF part.
- Software programming is fully compatible with NRF24L01 modules.
- Size: 37.4mm * 16.6mm
Applications:
Remote control, telemetry, wireless meter reading, access control systems, residential paging, industrial data acquisition systems, wireless tags, identification, contactless RF smart card, small wireless data terminal, fire safety systems, wireless remote control systems, bio-signal acquisition, wireless 232, wireless 422/485 data communications.
Specifications:
- Voltage: 3-3.6V
- Max output power: +20 dBm
- Working current in transmit mode: 115mA
- Working current in receiver mode: 45mA
- Current in mode: 4.2uA
- Operating temperature: -20°C-70°C
- Receiver sensitivity:
- -92dBm in 2Mbps mode
- -95dBm in 1Mbps mode
- -104dBm in 250kbps mode
- PA growth: 20dB
- LAN growth: 10dB
- LAN noise figure: 2.6dB
- Antenna growth: 2dBI
- 2M rate: 520m
- It uses 2.4GHz global open ISM band, with license free.
- Transmit power is greater than +20 dBm.
- Support six-channel data reception.
- 2Mbit/s speed makes high quality VoIP possible
- Multi frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
- SPI interface facilitates the communication with MCU I/O port.
- Facilitate the development for customers, without development RF part.
- Software programming is fully compatible with NRF24L01 modules.
- Dimensions: 48×15.5x14mm
- Antenna length: 108mm
Pin Definition
| PIN | Function | Direction | |
| Pin1 | GND | Ground | |
| Pin2 | VCC | VCC, 1.9~3.6V | |
| Pin3 | CE | Operating Mode, RX/TX | In |
| Pin4 | CSN | SPI chip select | In |
| Pin5 | SCK | SPI clock | In |
| Pin6 | MOSI | SPI Input | In |
| Pin7 | MISO | SPI Output | Out |
| Pin8 | IROAM | Interrupt Output | Out |
Package Includes :

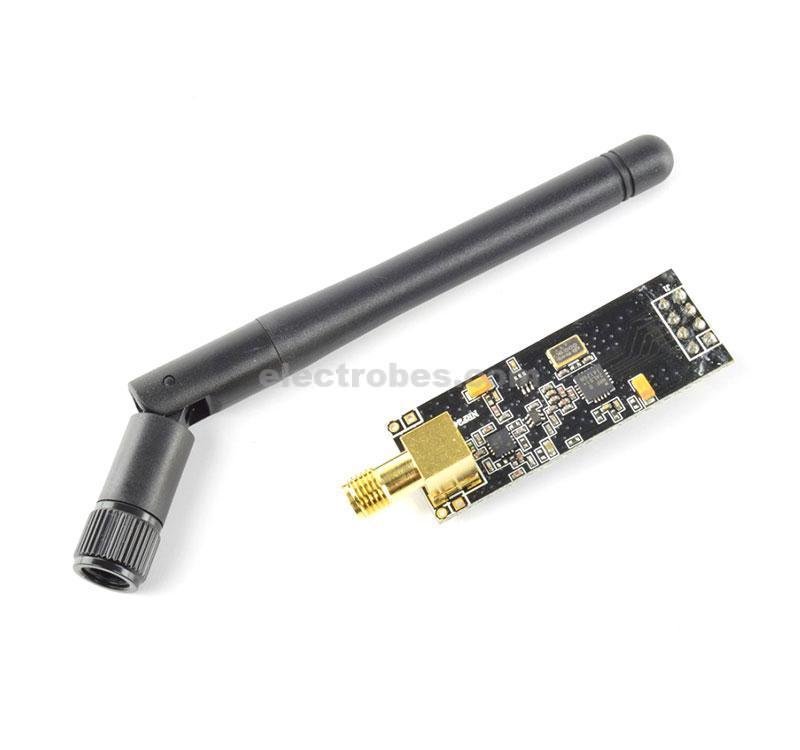

1 x 2.4GHz NRF24L01 Transceiver module.
1 x SMA Antenna.
- Operating Frequency: 2400MHz ~ 2524MHz
- Modulation: GMSK
- Transmit power: more than +20 dbm, 50Ω
- Receiver sensitivity:-95dbm
- Operating voltage: 2.7V ~ 3.6V
- Max Emission current: 115mA
- Max Receive current: 45mA
- Operating temperature: -45 degrees to +85 degrees
- Storage temperature: -45 degrees to +125 degrees
- Gain Of PA: 20 dB
- Gain Of LNA: 10 dB
