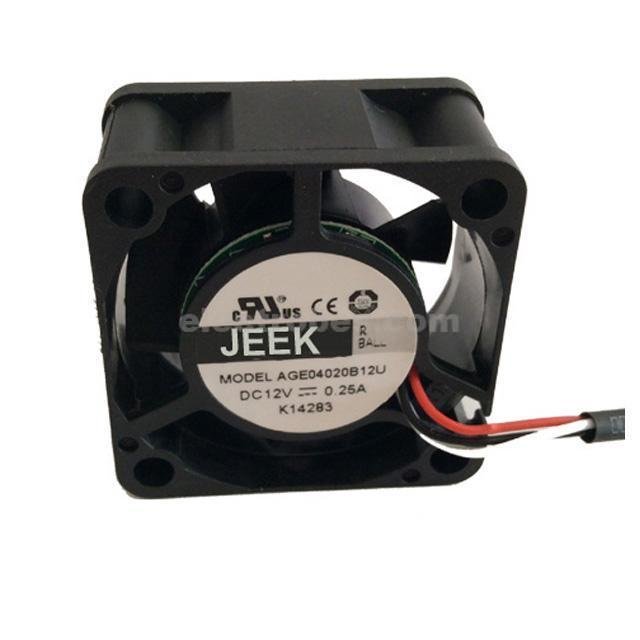

DC 12V Cooling Fan 40x40x20mm – Used Condition
- Rated voltage: 12VDC
- Voltage range: 8-13.8VDC
- Rotation speed: 2000 RPM +/- 10%
- Rated current: 0.8A +/- 10%
- Rated power: 1W
- Airflow: 76.72 CFM
- Noise: 33.5dB
- Dimensions: (40 x 40 x 20mm)
- Mounting holes: 0.165″ (4.2mm)
- Life expectancy: 15,000 Hours
Availability:
In stock
₨ 150
In stock
Ideal for compact PC cases (HTPC, ITX, Small Form Factor) and other chassis (intake & exhaust), replacement fan for NAS and other devices, etc.
Features:
- Dimensions: 40mm(L) x 40mm(W) x 20mm(H)
- Rated Voltage: DC 12V; Rated Current: 0.8Amp ±10% ; Rated Speed: 2400 RPM; Air flow: 76.2CFM ±10%; Noise: 32dBA ±10%
- Connector: XH2.54-2Pin; Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two wire cooling fan; Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees.
Notes:
- Check the voltage whether fit your need. power the fan with corresponding voltage.
- Make sure the “+” (RED wire) and “－”（Black wire）are connected to power correctly.
