EM18 – 125Khz RFID Reader Module
EM-18 is a nine pin device. Among nine pins, 2 pins are not connected, so we basically have to consider seven terminals.
| Pin Number | Description |
| VCC | Should be connected to positive of power source. |
| GND | Should be connected to ground. |
| BUZZ | Should be connected to BUZZER |
| NC | No Connection |
| NC | No Connection |
| SEL | SEL=1 then o/p =RS232 SEL=0then o/p=WEIGAND |
| TX | DATA is given out through TX of RS232 |
| DATA1 | WEIGAND interface DATA HIGH pin |
| DATA0 | WEIGAND interface DATA LOW pin |
Availability:
In stock
₨ 1,600
In stock
The EM18 RFID Reader Module is your gateway to seamless 125khz RFID card reading. Whether you’re building an access control system, inventory management solution, or attendance tracking application, this module delivers reliable performance. Here’s why you’ll love it.
Key Features:
- Compact Design: The EM18 module is small and easy to integrate into your projects.
- 125kHz Read Frequency: It operates at the widely used 125kHz frequency, making it compatible with a variety of RFID tags.
- EM4001 Tag Compatible: Works seamlessly with EM4001 64-bit RFID tags.
- TTL and RS232 Output: Choose the output mode that suits your application.
- Magnetic Stripe Emulation: Emulates magnetic stripe data output for added versatility.
- Wide Read Range: Detects RFID cards within a 100mm range.
Why Choose EM18?
- Affordable: Get started with RFID technology without breaking the bank.
- Easy Integration: The 2.54mm pin spacing allows direct fitting on a breadboard.
- Versatile Applications: Access control, attendance systems, inventory tracking, and more.
Features:
- Operating voltage of EM-18: +4.5V to +5.5V
- Current consumption:50mA
- Operating temperature: 0C to +80C
- Operating frequency:125KHz
- Communication parameter:9600bps
- Integrated Antenna.
Pin Out

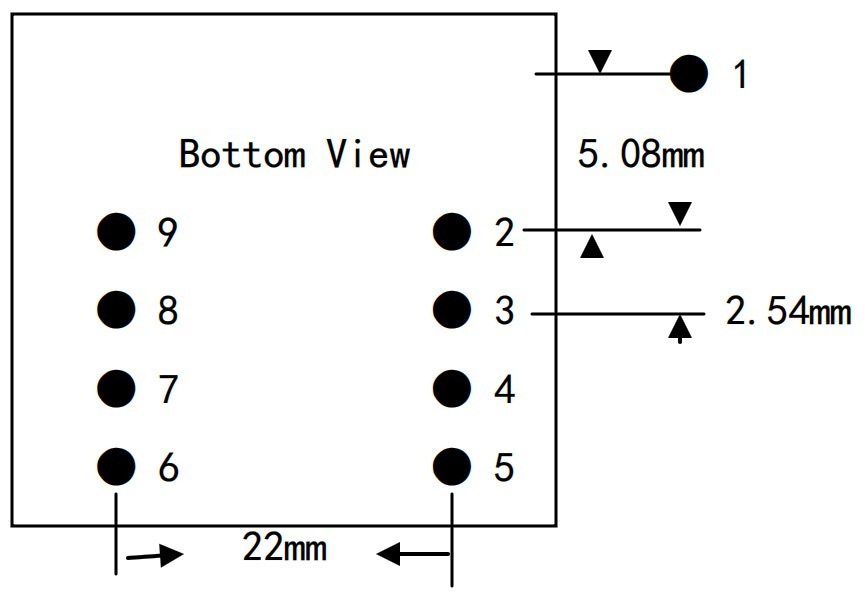

EM-18 RFID Reader Module – Bottom View
| Pin No. | Name | Function |
|---|---|---|
| 1 | VCC | 5V |
| 2 | GND | Ground |
| 3 | BEEP | BEEP and LED |
| 4 | ANT | No Use |
| 5 | ANT | No Use |
| 6 | SEL | HIGH selects RS232, LOW selects WEIGAND |
| 7 | TX | UART TX, When RS232 is Selected |
| 8 | D1 | WIEGAND Data 1 |
| 9 | D0 | WIEGAND Data 0 |
- 5v supply
- 100mm read range
- magnetic stripe emulation output
- Can operate on LOW power
- EM4001 64-bit RFID tag compatible.
