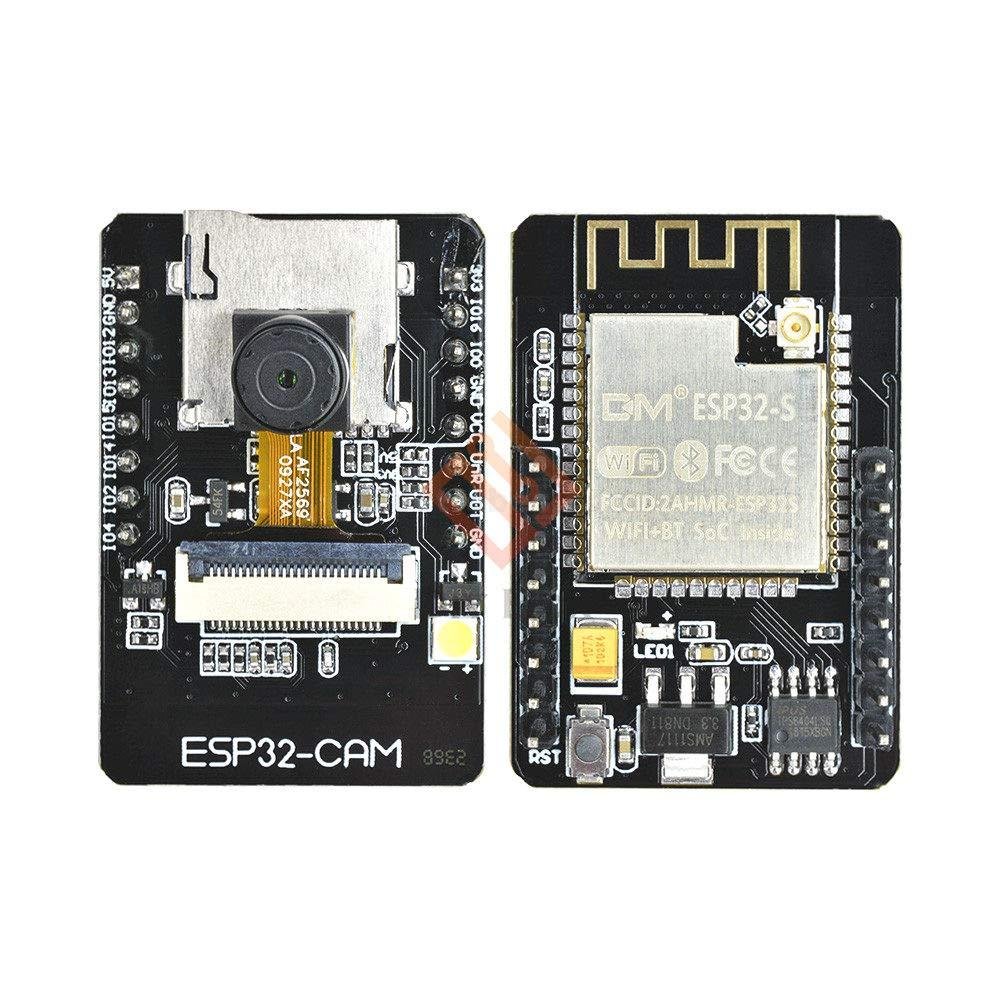

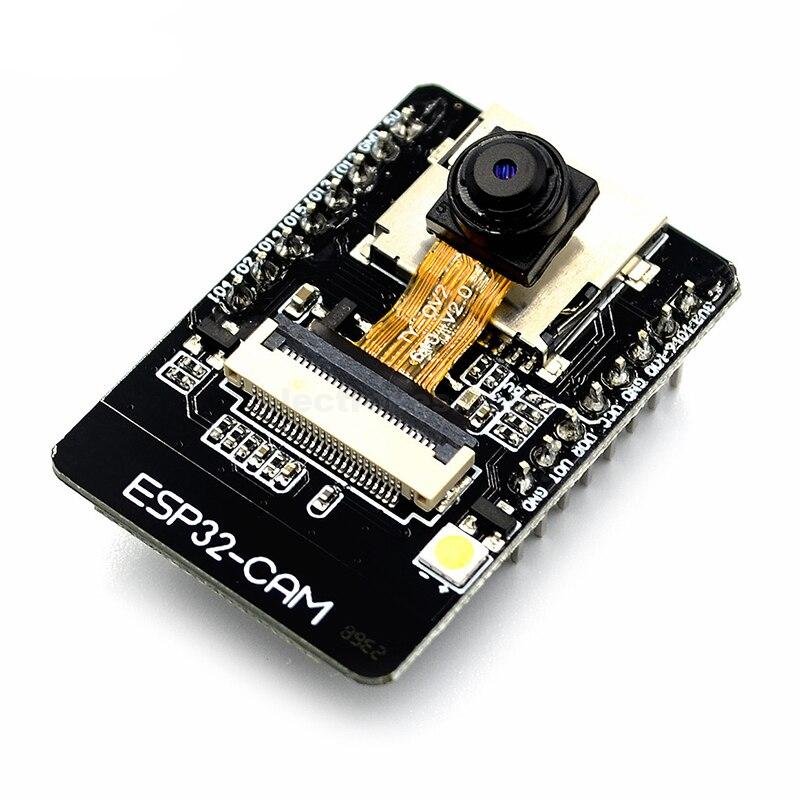

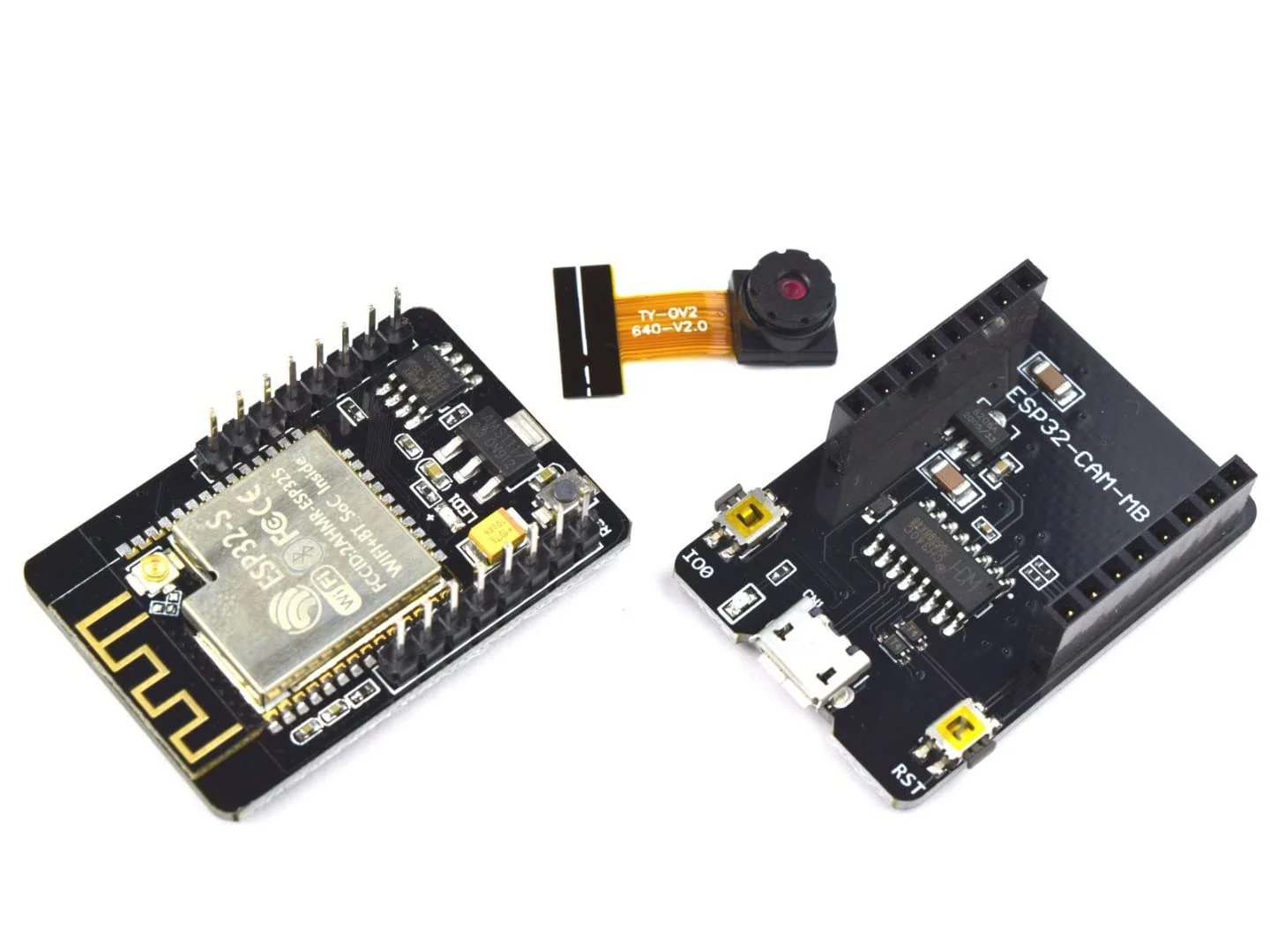

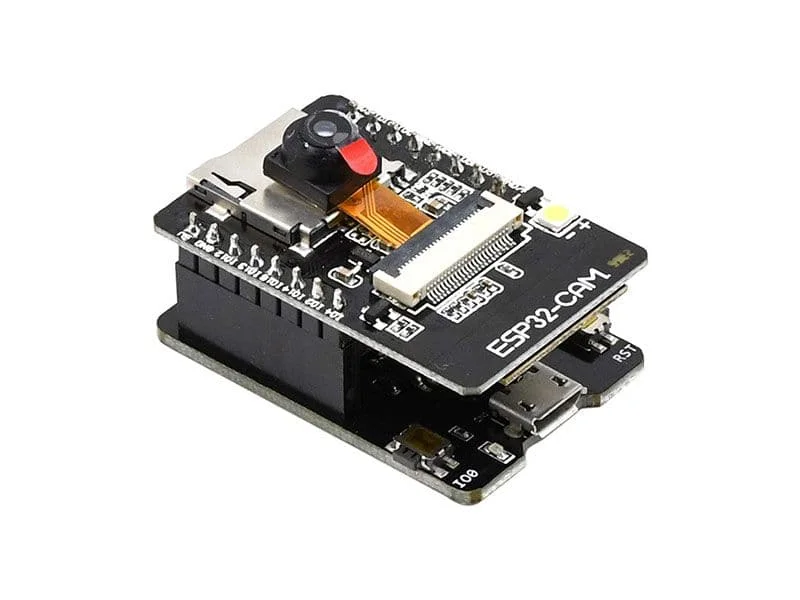

ESP32-CAM WiFi Bluetooth Development Board Module OV2640 2MP Camera Module ESP32 5V Dual-core 32-bit CPU with Camera Module

Features:

• The ESP32CAM is a tiny module based on the ESP32 chip and OV2640. You can even program the ESP32CAM via the ESP-IDF by installing the ESP32 core.
• The ESP32CAM equips the ESP32 with everything needed to program, run and develop on the Wonder Chip. In addition, the card reserved the MPU6050, BME280 and an analogue MIC.
• ESP integrates WiFi, traditional Bluetooth and BLE beacon with 2 powerful 32-bit LX6 CPUs, a 7-stage pipeline architecture, a main frequency setting range from 80MHz to 240MHz, an on-chip sensor, a hall sensor, a temperature sensor, etc.
• It is fully compatible with WiFi 802.11b/g/n/e/ i and Bluetooth 4.2 standards and can be used as a master mode to create an independent network controller or as a slave for other host MCUs to add network functions to existing devices.
• ESP32-CAM can be used in various IoT applications. It is suitable for intelligent home devices, industrial wireless control, wireless monitoring, wireless QR identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

Specifications:

• WIFI module: ESP-32S
• Built-in Flash: 32Mbit
• RAM: Internal 512KB + External 4M PSRAM
• Antenna: Onboard PCB antenna
• WiFi protocol: IEEE 802.11 b/g/n/e/i
• BT: BT 4.2 BR/EDR and BLE
• WIFI mode: Station / SoftAP / SoftAP+Station
• Security: WPA/WPA2/WPA2-Enterprise/WPS
• Supported TF card: up to 4GB
• Peripheral interface: UART/SPI/I2C/PWM
• IO port: 9
• UART baud rate: default 115200bps
• Power supply: 5V

Package includes:

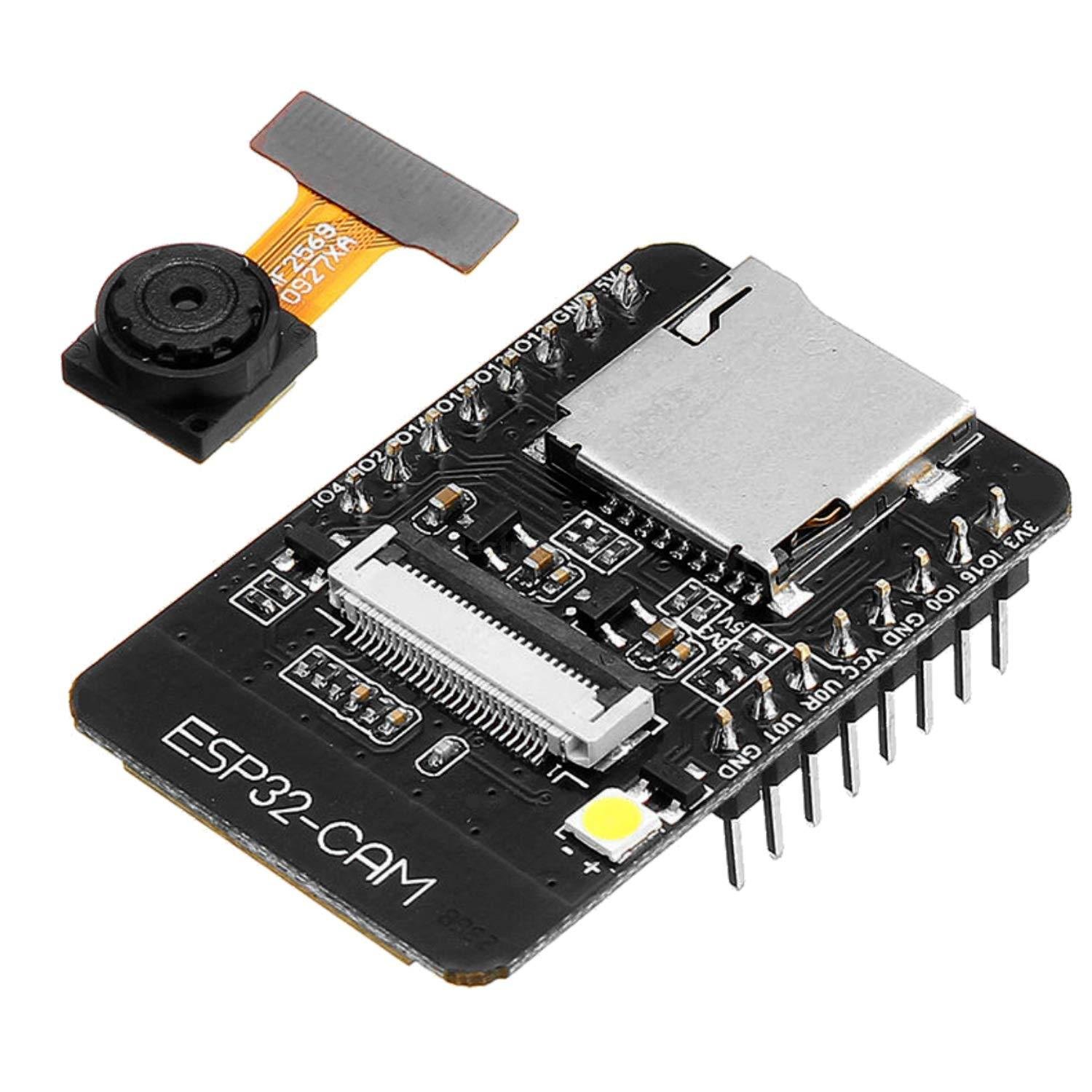

1 x ESP32 cam module
1 x camera module OV2640 2MP

Note:

1.Please make sure the module input power is at least 5V 2A, otherwise the picture will become unstable.

2. The ES32-GPIO32 pin controls camera power. When the camera is working, pull down the GPIO32.

3. As IO0 is connected to the XCLK camera, let IO0 float when in use. Do not connect high and low levels.

4. The factory has the standard firmware. No additional download available. Please handle it carefully when you need to re-burn other firmware.
