Antennas, Discrete Electronic Components Compare

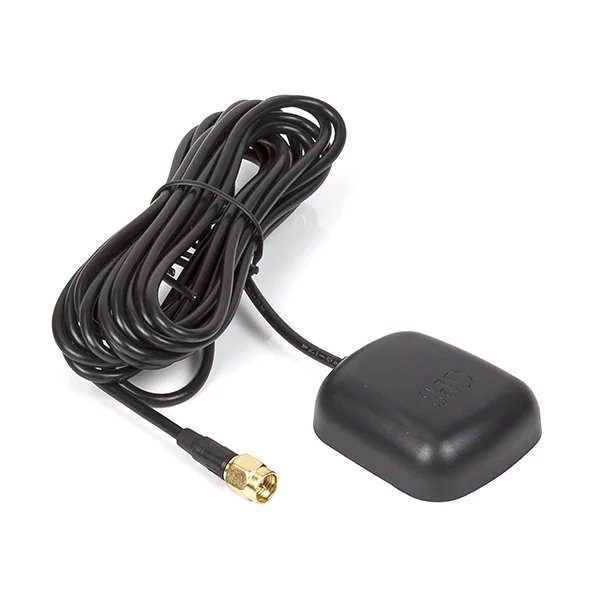

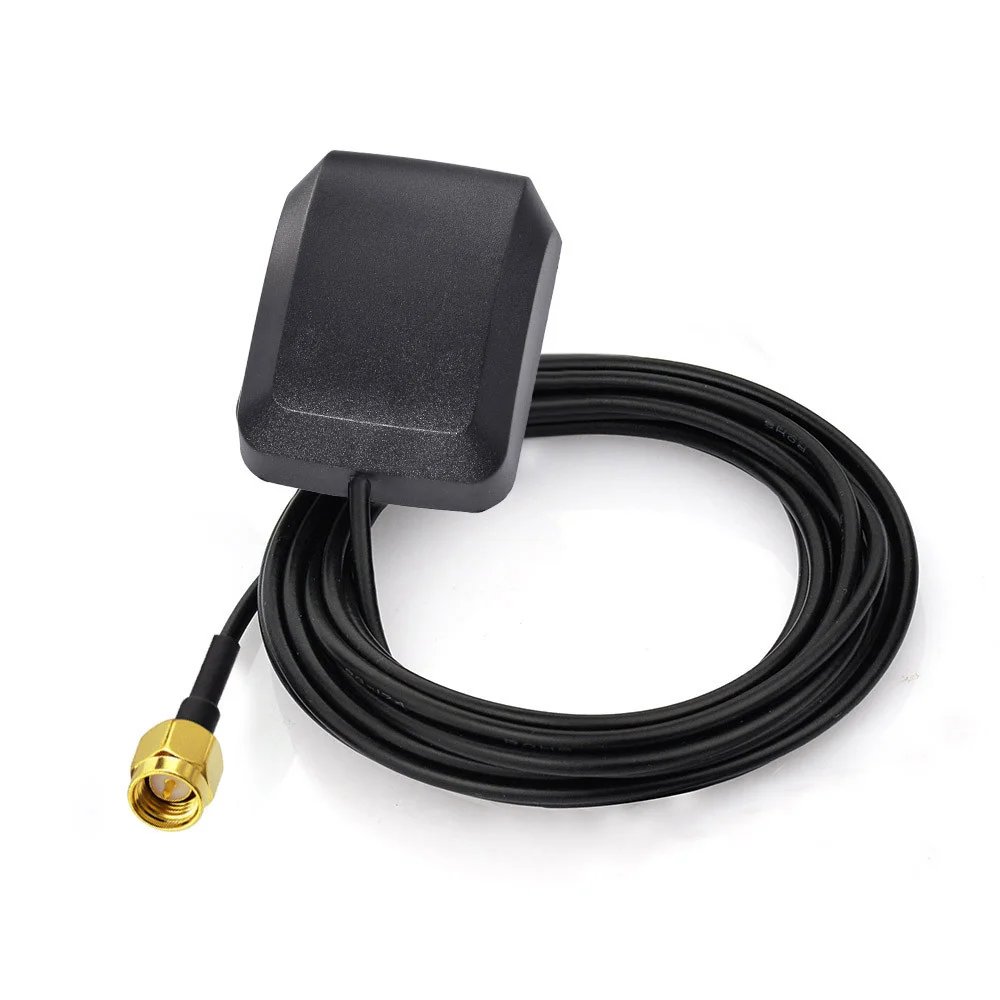

GPS Antenna – External Active Antenna – 3-5V 28dBi 3 meter SMA
GPS Antenna – External Active Antenna – 3-5V 28dB 3 Meters SMA Give your Ultimate GPS V3 a boost with this external active antenna. Buy online in Pakistan.
Availability:
In stock
₨ 950
In stock
Give your Ultimate GPS V3 a boost with this external active antenna. This GPS antenna draws about 10mA and will give you an additional 28 dB of gain. It’s got a 3 meters long cable so it will easily reach wherever you need it to. The antenna is magnetic so it will stick to the top of a car or truck (or any other steel structure)
Comes with a standard SMA connector on the end. If you want to connect to our Ultimate GPS V3 module, be sure to pick up a uFL to SMA adapter!
GPS not included.
- Frequency: 1575.42 MHz, 1602 MHz
- Center frequency: 1590 MHz
- Weight: 70g

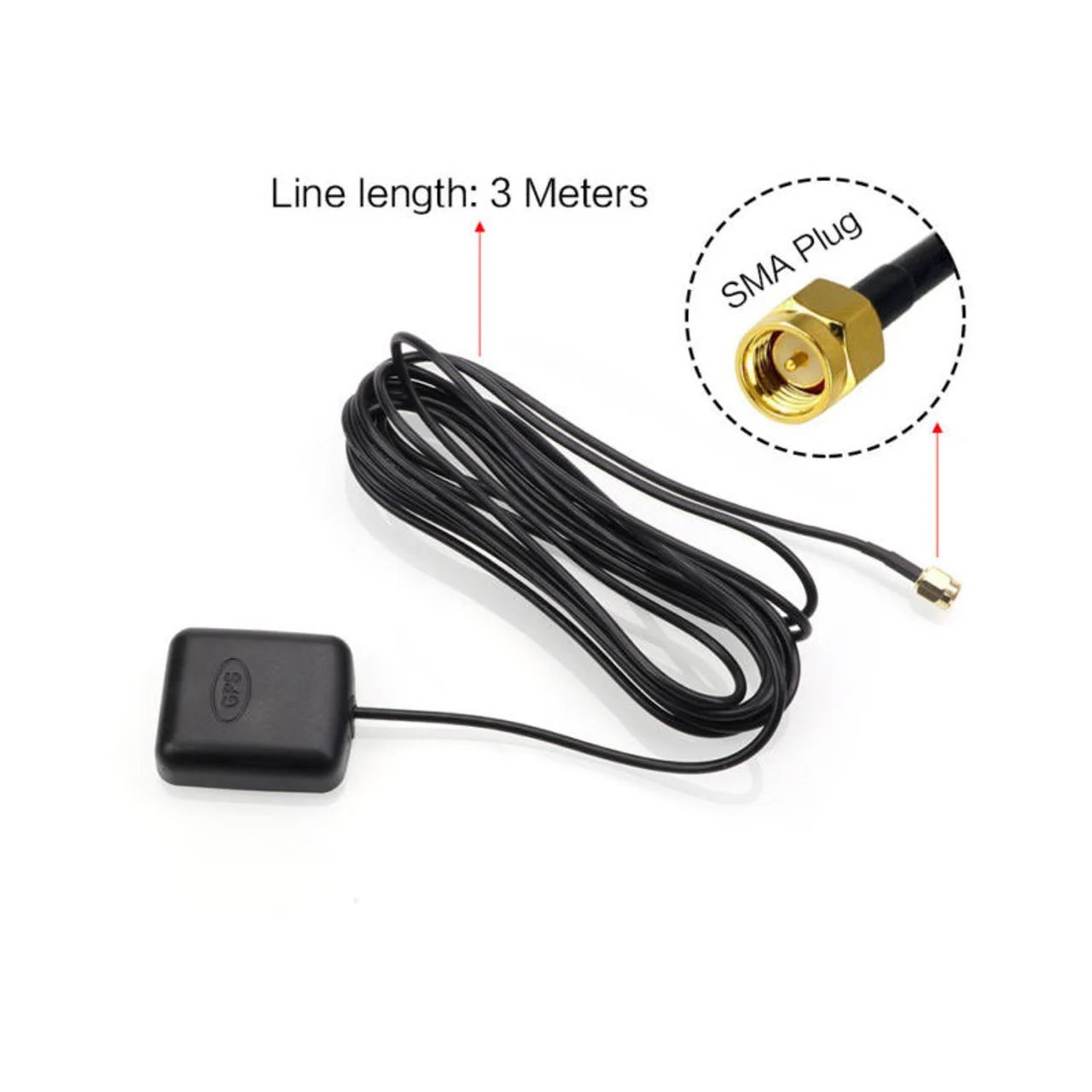

- Cable: 3.0 m
- Connector: SMA Bend Plug Connector
- Antenna Gain: 32dbm
- Noise Figure: 1.5db
- Power: 2.8 V-5.0 V, standard 3.3 v
- Power Consumption: 10mA
- Length: 3.0 m
- Operating temperature: -40 ° C ~ + 85 ° C
- Storage temperature: -40 ° C ~ + 105 ° C
- Waterproof: Yes
