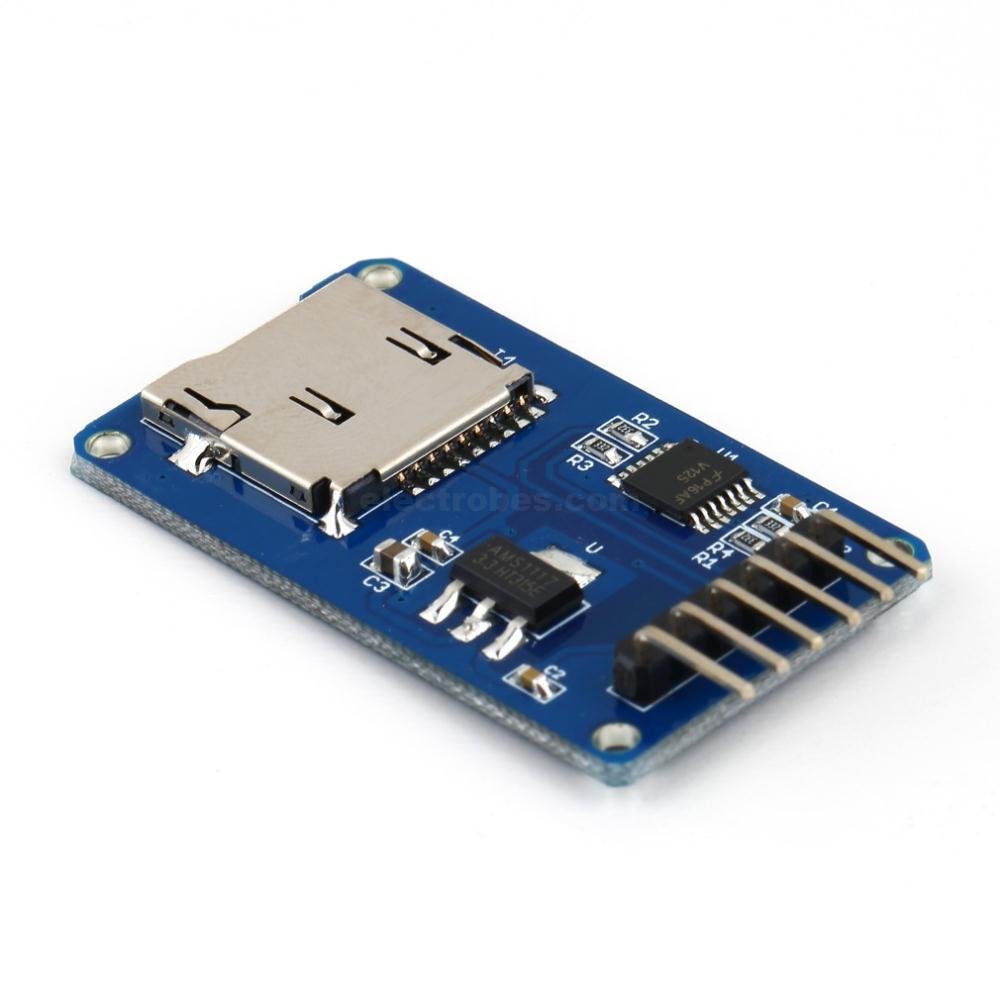

Micro SD TF Card Reader Adapter Module for Arduino
The module of the reader of micro SD cards with gold pin connectors – 2.54 mm pitch. It communicates with the main board via SPI interface. It works with a supply voltage from 3.3 V to 5 V.
In stock
₨ 150
In stock
Micro SD TF Card Reader Adapter Module for Arduino
The module (MicroSD Card Adapter) is a Micro SD card reader module, and the SPI interface via the file system driver, microcontroller system to complete the MicroSD card read and write files. Arduino users can directly use the Arduino IDE comes with an SD card to complete the library card initialization and read-write.
Features:
- Support Micro SD Card (<=2G), Micro SDHC card (<=32G) (high-speed card)
- The level conversion circuit board that can interface level is 5V or 3.3V
- Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
- Communication interface is a standard SPI interface
- 4 M2 screw positioning holes for easy installation
- Size: 4.1 x 2.4cm
Control Interface:
A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin
3.3V regulator circuit:
LDO regulator output 3.3V as level converter chip, Micro SD card supply
Level conversion circuit:
Micro SD card into the direction of signals into 3.3V, MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal
Micro SD card connector:
It is a self-drilling card holder for easy insertion and removal of the card.
Positioning holes:
4 M2 screws positioning hole diameter of 2.2mm, the module is easy to install positioning, to achieve inter-module combination
SD Card Module Connection to Arduino:

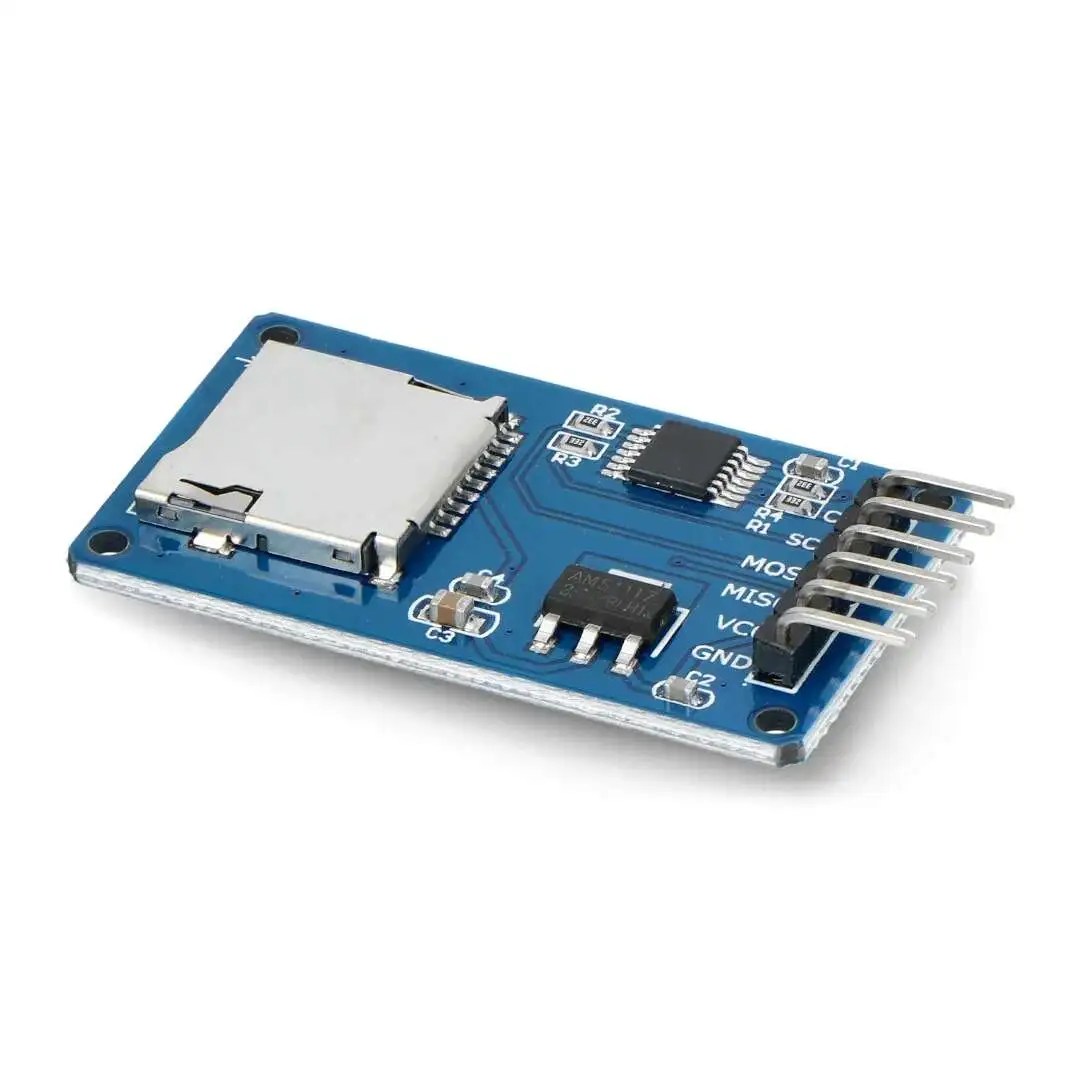

Pin Configuration of Micro SD Card Adapter Module
The module contains 6 pins for power and communicating with the controller. The table below describes the pin type and role of each pin on the module.
| Pin Type | Pin Description |
| GND | Ground |
| VCC | Voltage Input |
| MISO | Master In Slave Out(SPI) |
| MOSI | Master Out Slave In(SPI) |
| SCK | Serial Clock(SPI) |
| CS | Chip Select(SPI) |
Package includes:
1 x Micro SD TF card module
How to Interface with Arduino?
Tutorial to interface Arduino with SD TF card module
- Supply voltage: 4.5 V to 5.5 V
- Integrated voltage regulator: 3.3 V on SPI pins
- Current: about 80mA
- Interface: SPI
- Pins’ pitch: 2.54 mm
- Mounting holes M2: spacing of 38 mm and 20 mm
- Module dimensions: 42 x 24 mm
