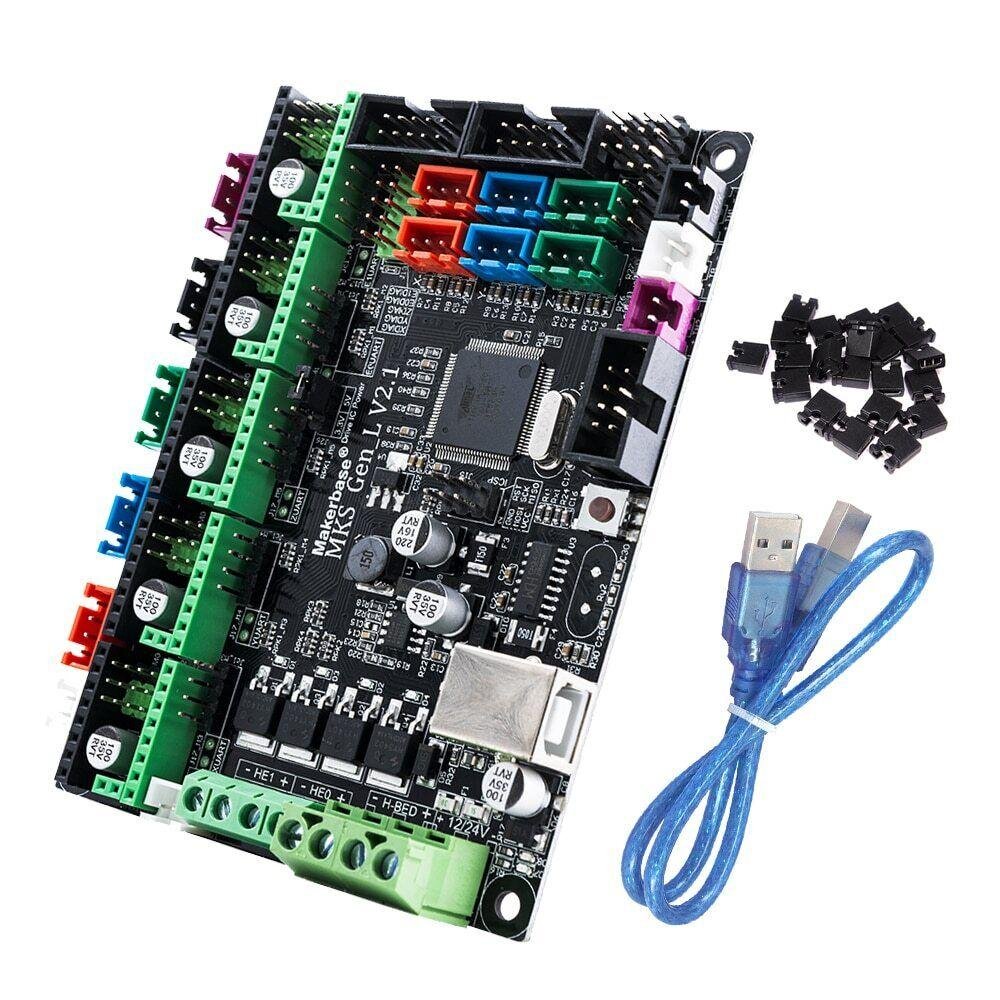

MKS Gen L V2.1 3D printer control board  Mega 2560 R3 motherboard RepRap Ramps1.4 compatible

MKS Gen is an all-in-one electronics solution for 3d printers and other CNC devices. The MKS Gen was designed by maker base as a radical upgrade to RAMPS board. It features an onboard ATmega2560. Its five motor outputs are powered by A4988, DRV8825 or TMC2208 stepper drivers. The board features a developer friendly expansion port supporting giving access the same as Ramps1.4. MKS Gen is designed to be flexible in the user’s power source availability, allowing any power supply from 12V-24V.

Features:

• Mega 2560 and ramps1.4 set on a board, to solve complicated Ramps 1.4 combination of interfaces, the problem of failure prone.
• Replace the motor drive, drive and support 4988 8825 drive.
• The circuit board with high-quality 4-layer, heat and made a special optimization; ramps are 2 shelves.
• Using high-quality MOSFET, and better heat dissipation.
• Using a dedicated power chip, support 12V-24V power input, the voltage converter chip to solve the heat problem Ramps.
• MEGA2560 and RAMPS 1.4 set on a board, to solve complicated RAMPS1.4 combination of interfaces, the problem of failure prone.
• Support up to 5 motor driver (A4988 or DRV8825).
• The circuit board with high-quality 4-layer, heat and made a special optimization; ramps are 2 shelves.
• Using a dedicated power chip, support 12V-24V power input, the voltage converter chip to solve the heat problem Ramps.
• Can accept 24V input power under the same system can be hot-bed current is reduced to 1/4, an effective solution to the hot bed MOS pipe heat problems.
• The firmware can use open source firmware Marlin, ramps1.4 identical configuration and can directly replace Ramps1.4.

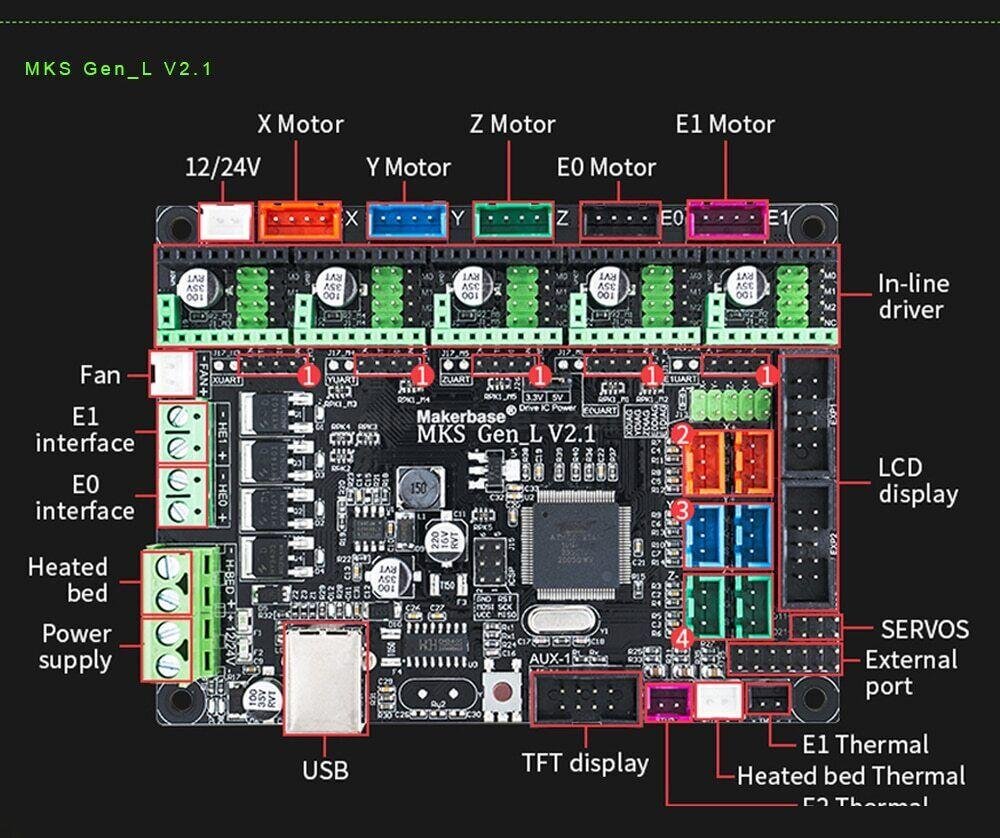

• Can be directly connected to the control panel and 12864LCD Ramps1.4, 2004 LCD control panel.
• Reserved for motor pulse and direction output ports for easy plug-in high-current To add a large current (eg 2A, 5A) motor drive circuit.
• Reserved Ramps1.4 on Servos, AUX-1, AUX-2 interface that provides three 5V output, three 12V outputs.
