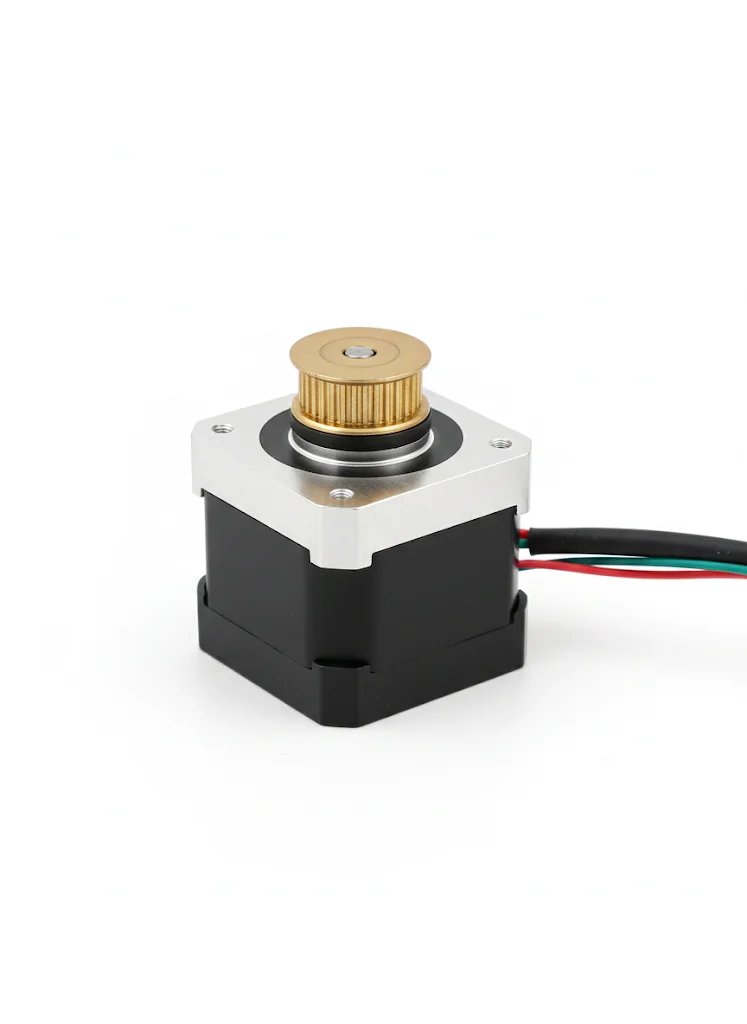

Nema17 12-24V High Torque Stepper motor 1.8/step 4 Wire (New)
NEMA17 4 Wire Bipolar Stepper Motor NEMA17 Stepper Motor NEMA 17 Stepper Motors very useful in the various application especially which demands low speed with high precision Many machines such as 3D Printers CNC Router and Mills Camera Platforms XYZ Plotters etc Nema17 4 wire Bipolar Stepper.
Only 1 left in stock
₨ 1,700
Only 1 left in stock

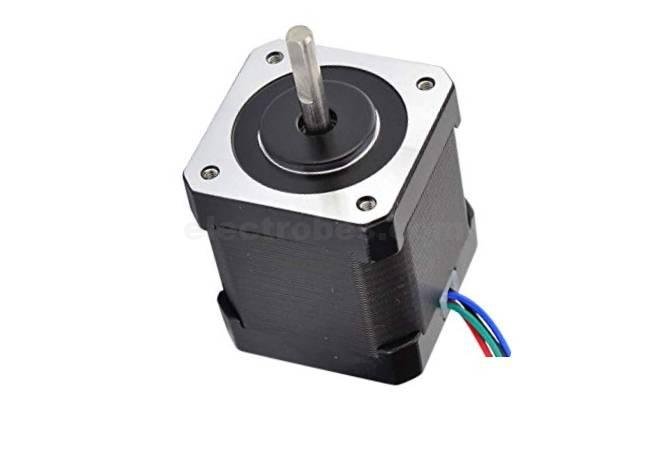

Nema17 12-24V High Torque Stepper motor 1.8/step 4 Wire
NEMA 17 is a hybrid stepping motor with a 1.8° step angle (200 steps/revolution). Each phase draws 1.2 A at 4 V, allowing for a holding torque of 0.5Nm. NEMA 17 Stepper motor is generally used in 3D Printers, CNC machines and Laser Cutters.
Where to use NEMA 17 Stepper Motor
NEMA17 Stepper Motor is commonly used in CNC machines, Hard Drives and Linear Actuators. The motor have 6 lead wires and rated voltage is 24 volt. It can be operated at lower voltage but torque will drop. These motors has a step angle of 1.8 deg., this means that it has 200 steps per revolution for every step it will cover a 1.8° hence the level of control is also high. These motors run on 24V and hence can provide high torque. So if you are looking for a compact easy to use stepper motor with high torque then this motor is the right choice for you.
Stepper Motor Applications
- CNC machines
- Precise control machines
- 3D printer/prototyping machines (e.g. RepRap)
- Laser cutters
- Pick and place machines
- Stepper motor specifications: 42 mm
- Light motor height: 39 mm
- Output shaft: 5 mm
- Output shaft length: 11 mm
- Step angle: 1.8
- Resistance: 2.4 ohms
- Lead wire: two-phase four-wire
- Line length: 100 mm
- 12V short circuit current: 2.2 A
- Torque: 0.5 Nm (estimated)
