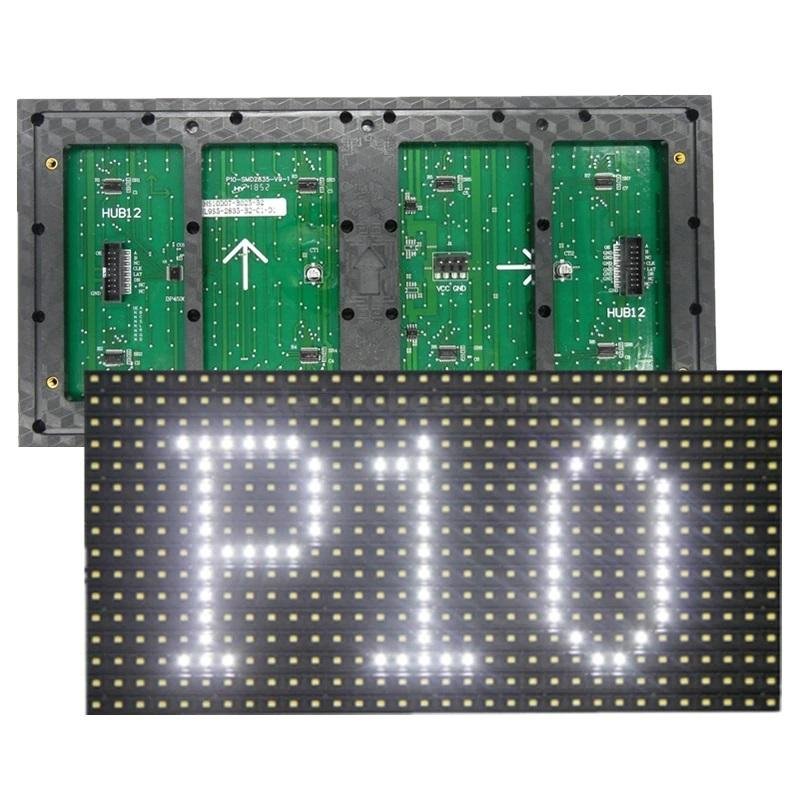

P10 SMD Single White Color Led Panel Display Module 32x16cm 320x160mm

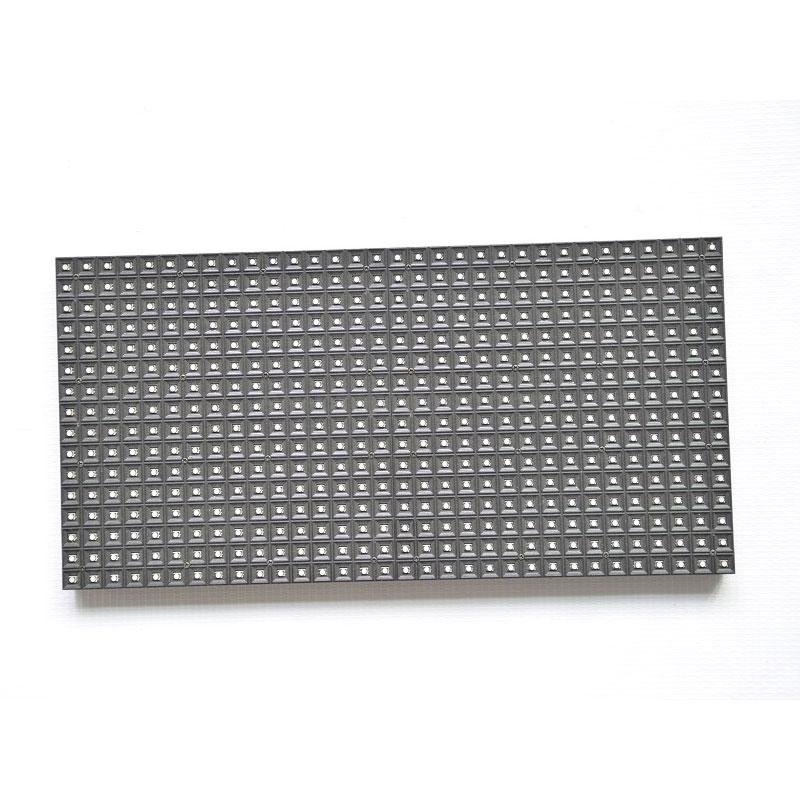

P10 SMD Single White Color Led Panel Display Module 32x16cm 320x160mm - Image 2

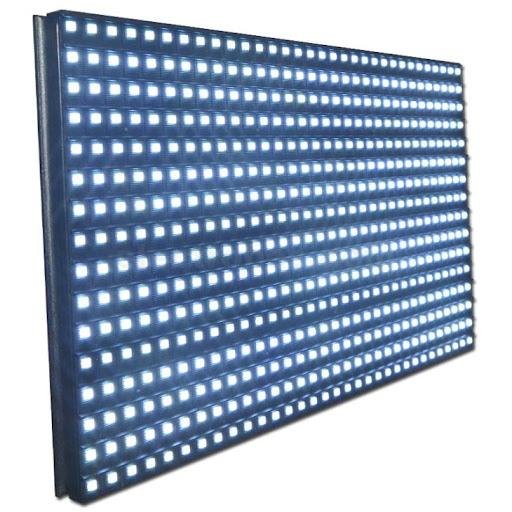

P10 SMD Single White Color Led Panel Display Module 32x16cm 320x160mm - Image 3

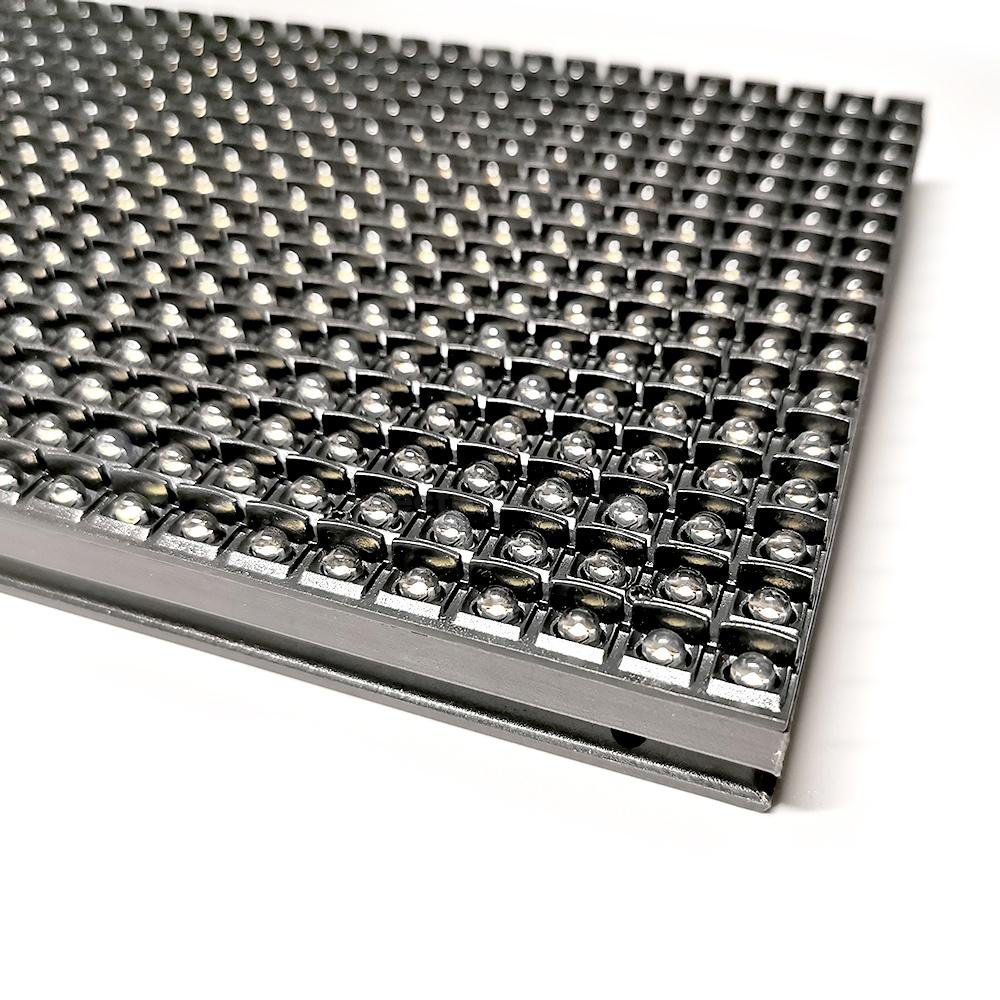

P10 SMD Single White Color Led Panel Display Module 32x16cm 320x160mm - Image 4
P10 SMD Single White Color Led Panel Display Module 32x16cm 320x160mm - Image 5

P10 SMD Single White Color Led Panel Display Module 32x16cm 320x160mm

P10 SMD Single White Color Led Panel Display Module 32x16cm 320x160mm

Compare

₨ 1,300

Add to Wishlist
Compare

P10 SMD2835 1/4 Scan 32x16dot 320x160mm LED Display Module Features:

  • P10 SMD indoor LED display is a good solution for indoor fixed installation commercial LED screen.
  • The module size is 320x160mm, which is of our 320x160mm standard module series. It is convenient for clients to promote it. What is more, users can upgrade their old LED displays made of our 320x160mm standard modules easily.
  • Reasonable PCB design with good heat radiation and achieve long life span.
  • Using high quality SMD2835 LED, superior quality SMD LED display.

P10 SMD2835 1/4 Scan 32x16dot 320x160mm LED Display Module Parameters:

LED Lamp Specification

ColorPackageIntensityViewing angleWavelengthTesting condition
Red

SMD3535

800-1100mcd

120

620-625nm

25℃,20mA

Green

1600-2250mcd

120

515-530nm

25℃,20mA

Blue

350-500mcd

120

465-475nm

25℃,20mA

Module Parameter

Pixel Pitch10mm
Pixel configurationSMD3535 Black
Density10,000 pixels/㎡(real pixel)
Module Resolution32pixel(L) * 16pixel(H)
Module Dimension320mm(L) * 160mm(H) * 25mm(D)
Driving ModeConstant current, 1/4 duty
Module MaskPure black mask—high contrast screen

Electricity Parameter

Optical Ratings
Brightness≥6,000 cd/㎡
Viewing Angle120°(Horizontal); 120°(Vertical)
Best Viewing Distance≥10m
Gray Grade16,384 levels for each color
Display Color4.39 Trillion Colors
Brightness Adjustment100 grades by software or automatically by sensor
Max. Power Consumption28W
Control System
Correction Scale Level12bits
Frame Frequency≥60Hz
Screen Refresh Frequency≥1,920Hz
Gamma Correction-5.0～5.0
Input SignalComposite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature5000—9300 adjustable
Brightness CorrectionPixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature-20～+60 ºC
Stored Temperature-30～+70 ºC
Working Humidity10%～90% RH
Lifetime100,000 hours
MTBF5000 hours
Continuous Working Time≥72 hours
Protection GradeIP65
Out of Control Pixel Rate≤0.01%

SKU: 1495 Category: Tags: , , , , , ,
  • Model: P10 white led module
  • Pixel Pitch: 10 mm
  • Pixel Configuration: 1R
  • Chip Brand of LEDs: Epistar
  • Vertical Viewing Angle: 60deg
  • Scan Mode: 1/4 scan
  • Green Wavelength: 520-525nm
  • Max. Power Consumption: 1302 W/sq.m
  • Working Voltage: 40A 5V
  • System Operating Platform: Asynchronous or Synchronous
  • Life Time: ≥100000 hours
  • LED Package: DIP Oval 346 lamp
  • Pixel Resolution: 10000 dots
  • Module Dimension(W*H): 320×160
  • Horizontal Viewing Angle: 80deg
  • Brightness: 6500
  • Avg. Power Consumption: 250-550 W/sq.m
  • Refresh Rate: 2000 Hz/S
  • Quality Certificate: ETL, CE, RoHS, TUV,FCC class A,ISO9001:2008
  • Display Function: single colour
  • Power Supply: AC 110/220V
