P5 Outdoor Waterproof Full RGB Color Led Display 64×32 Pixel 320x160mm Panel 1/8 scan
P5 outdoor waterproof full color led display 64×32 pixel 320x160mm panel 1/8 scan smd 2727 rgb p5 led module video wall HD panel
Out of stock
₨ 5,300
Out of stock
Product Description

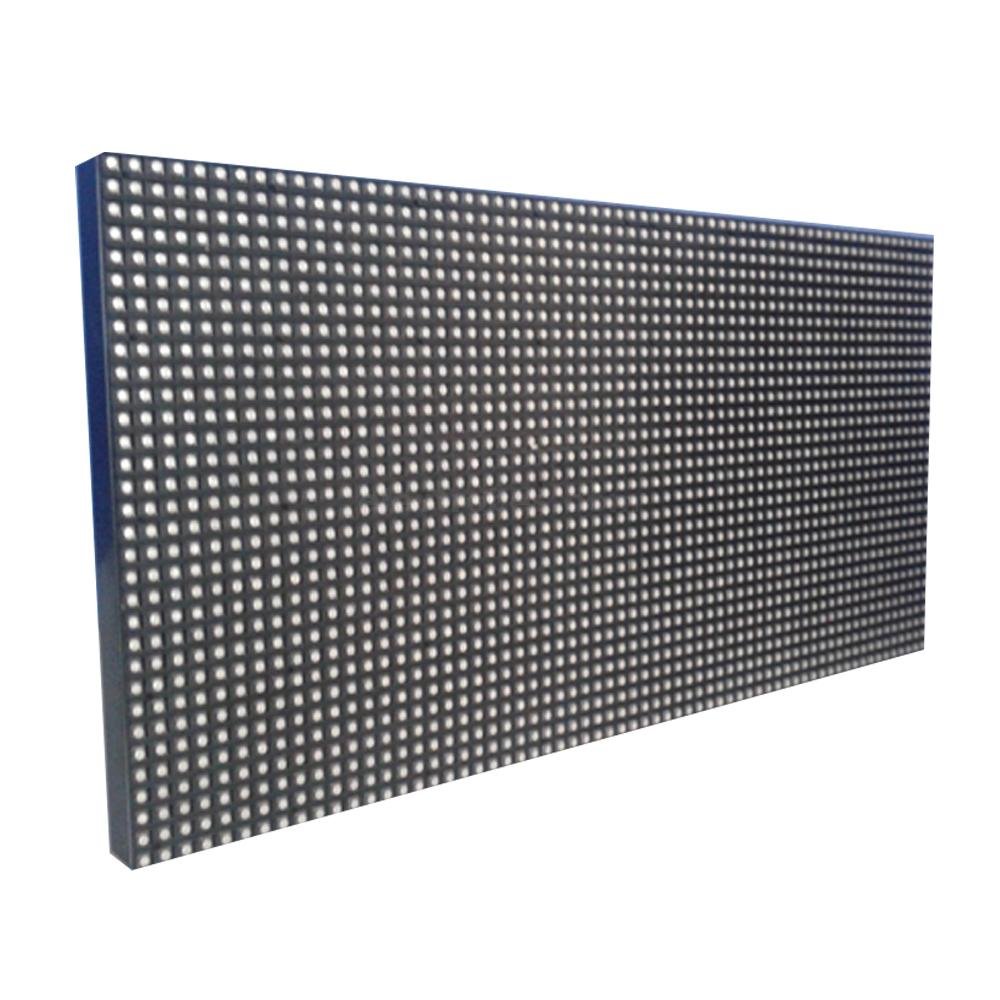

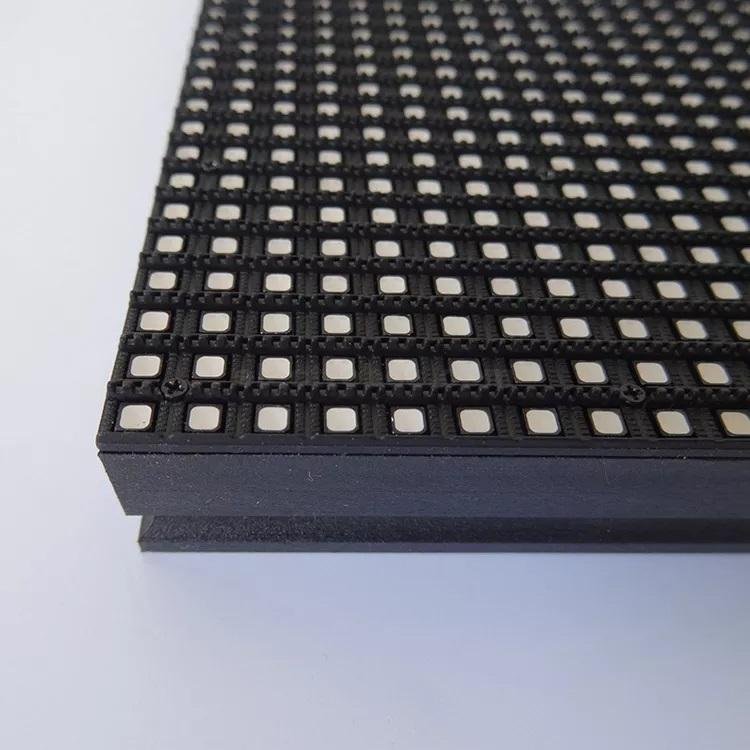

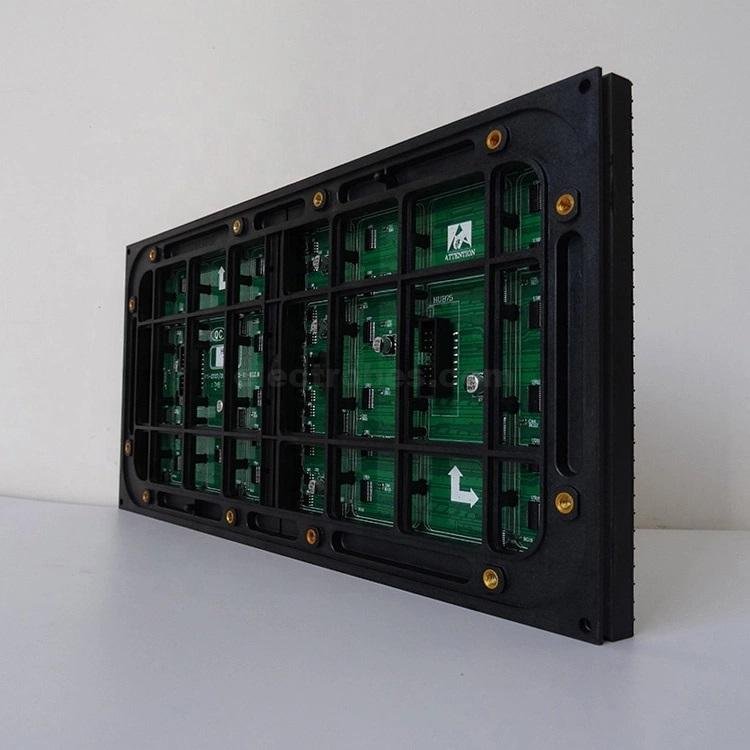

SMD P5 outdoor Led Display Module Full Color HD 64×32 Dot Matrix Led Panel LED display Modules panels
Product features
- Excellent visual effect, better viewing effect for text and graphic or video
- Large viewing angle, both H/V can reach 120 degree; getting vivid effect within any position of the viewing range;
- High contrast ratio and good evenness, high uniformity, without mosaic
- Resist of the high temperature and antioxidation and anti-static
- Any led in each pixel can be respectively replaced, which reduce the cost of the display maintenance.
- Item: P5
- Chip: Epstar + Silan chip
- Chip size: Red 9 mil, Green 12. Blue 12mil
- Light type: SMD
- Pixel Pitch: 5mm
- Module Size: 320mmX160mm
- Module Resolution: 64 X 32 (dots)
- Density of pixel: 40000dots/m2
- Pixel configuration: 1R1G1B
- Red wavelength: 625±2nm
- Green wavelength: 525±2nm
- Blue wavelength: 470±2nm
- Colors: 16777216
- Best viewing distance: ≥4m
- viewing angle: 120°/90°
- Maximum power consumption: 20W
- Brightness: 6000cd/m2
- Gray scale: 14bits per color
- Color temperature: 6500k
- Control method: Synchronization or Asynchronization
- Driving method: 1/8 scanning
- Frame frequency: 60Hz
- Refresh frequency: ≥600Hz
- Working Voltage: DC5V
- IP grade: IP67
- MTBF: More than 8000hours
- Life Span: 80,000hours
