PICkit3 PIC KIT3 Debugger Programmer Emulator PIC Controller Development Board

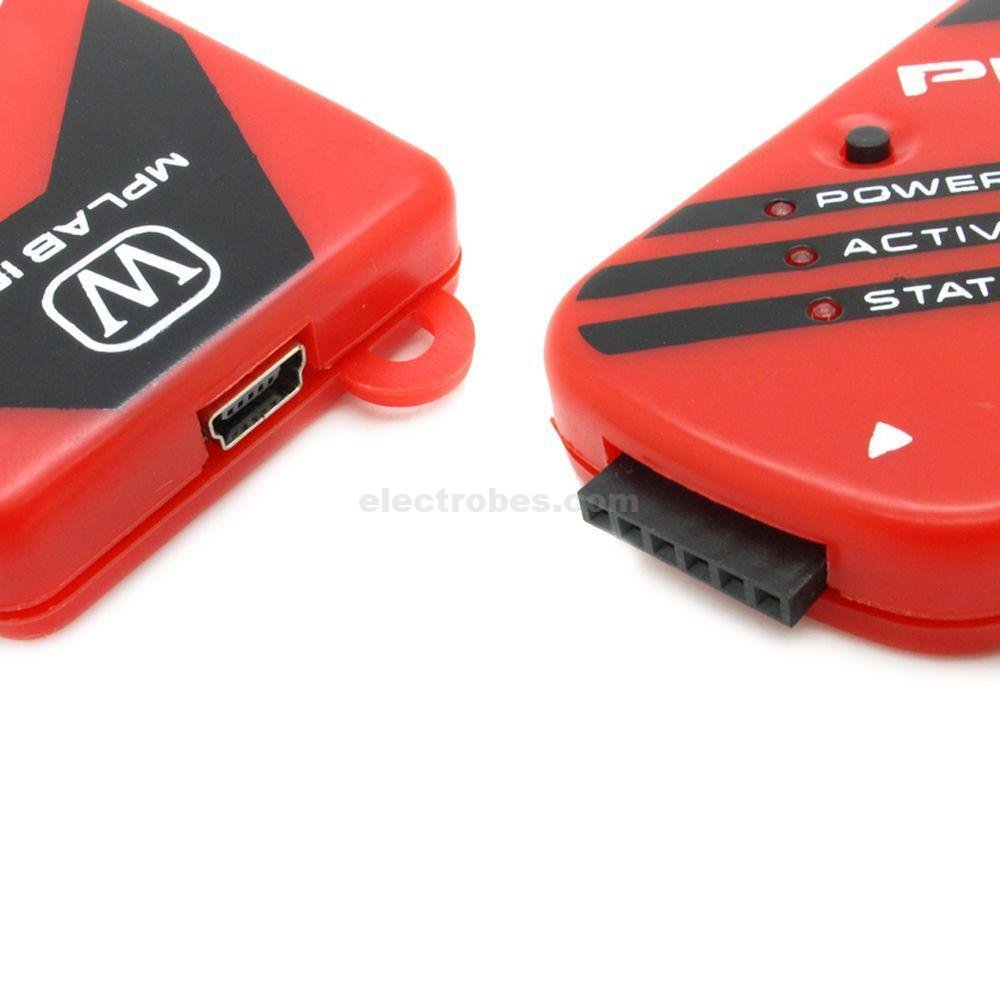

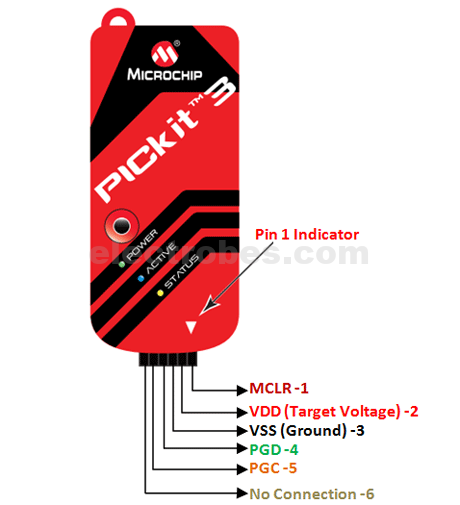

Microchip’s PICkit3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. The MPLAB PICkit3 allows debugging and programming of PIC and dsPIC Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit3 is connected to the design engineer’s PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE). The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming?.

Features:

• Full-speed USB support using Windows standard drivers
• Real-time execution
• Processors run at maximum speeds
• MPLAB IDE compatible (free copy included)
• Built-in over-voltage/short circuit monitor
• Firmware upgradeable from PC/web download
• Totally enclosed
• Supports low voltage to 5 volts (1.8v to 5.0v range)

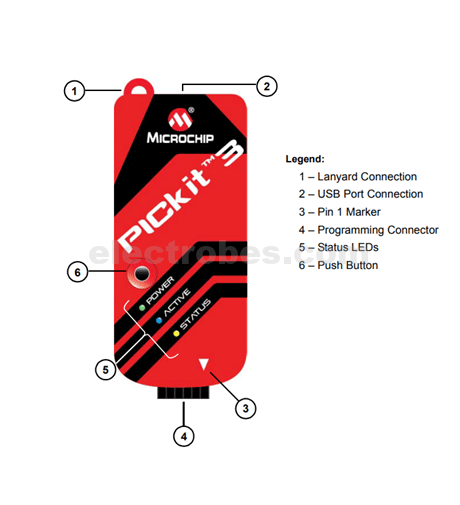

• Diagnostic LEDs (power, active, status)
• Read/write program and data memory of microcontroller
• Erase of all memory types (EEPROM, ID, configuration and program) with verification
• Freeze-peripherals at breakpoint
• Program up to 512K byte flash with the Programmer-to-Go

Applications:

• Program PIC Microcontrollers
• Debug PIC Microcontrollers
• Code dumping in production process
• Flashing or Firmware update.

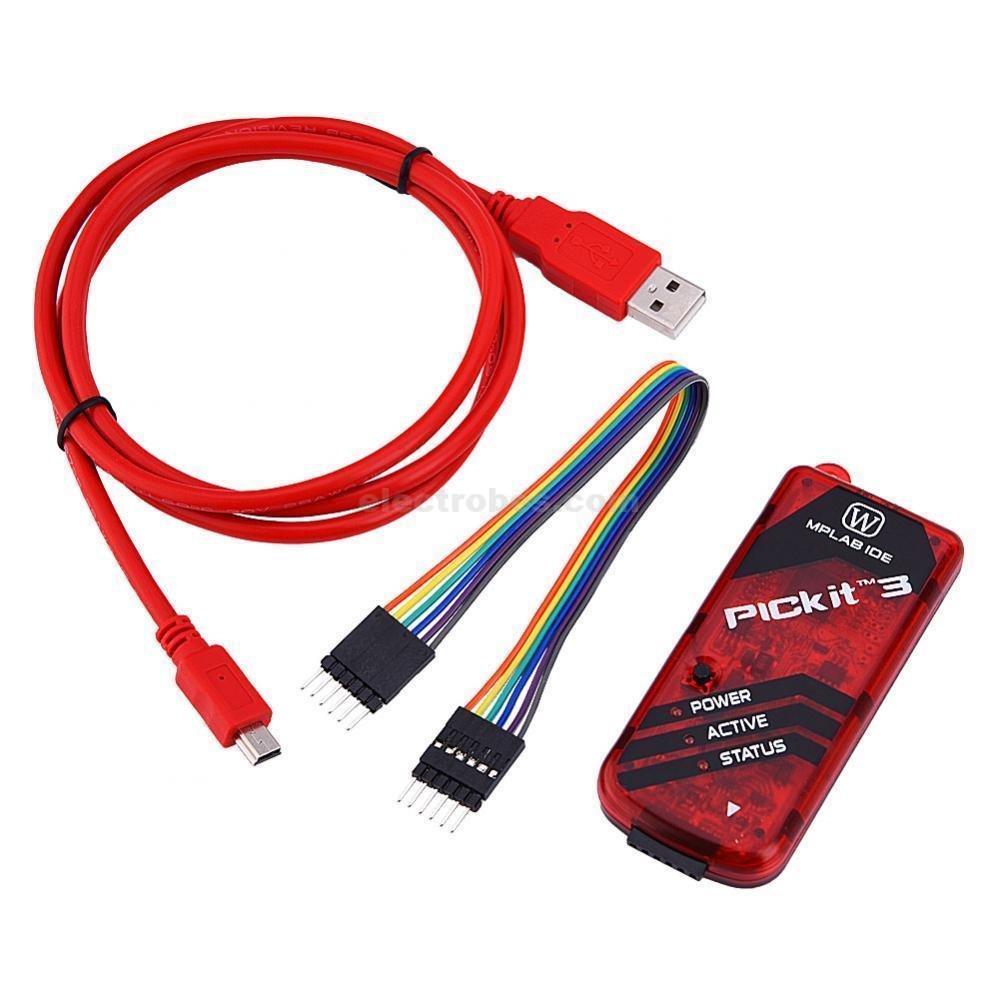

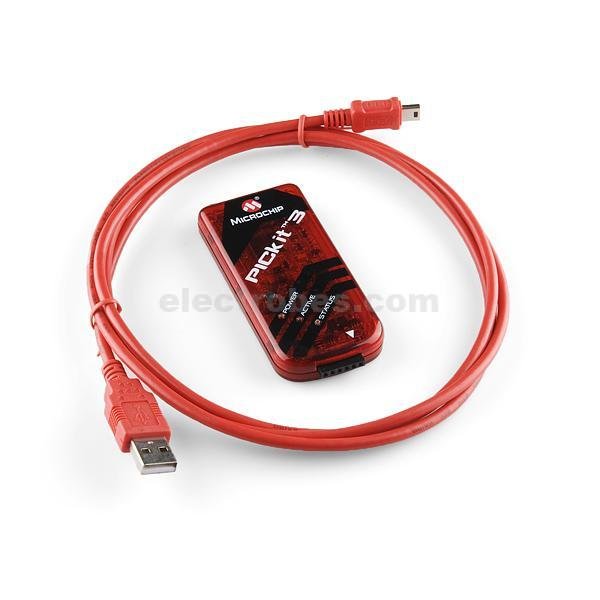

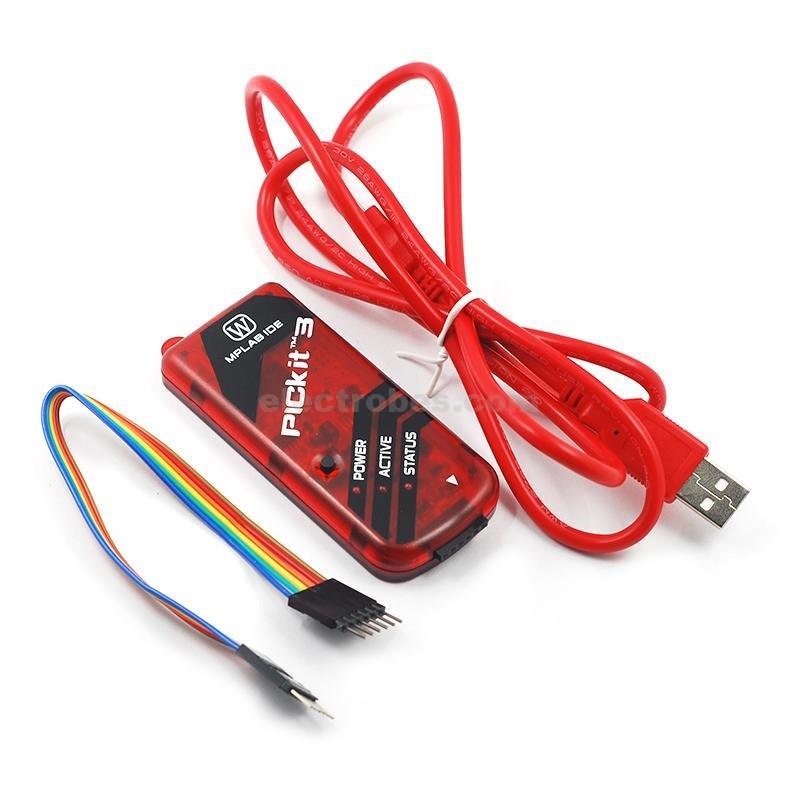

Package Includes:

• 1 x PICKIT 3 In-Circuit Debugger Programmer Module
• 1 x Mini USB Cable
• 1x 6 pin cable
