RC832 Receiver+TS832 Transmitter 32Ch 5.8G 600MW Wireless AV for FPV

Description:

FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA. THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.

Features:

• 48 channels choice to get the best transmitting quality.
• Compatible with A,B,E and F frequency bands
• Smaller size with lighter weight.
• 48 CH compatible to all FPV 5.8g receivers.
• 5.8G 600mW 48 Channels AV wireless FPV  transmitter
• Super small 200mA current for 600mW wireless transmitter power.
• 600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.

Package Included:

• 1 x cable
• 1 x antenna Description:
• FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA
• THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM. Description:
• FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA
• THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM. Description:
• FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA
• THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM. Description:
• FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA
• THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.
• 1 x Eachine TS832 transmitter + Receiver

TS832 Specification:

• Item Name: TS832 transmitter
• Frequency: 5.8G
• Power input: 7.4-16V (3S Lipo suggested)
• Transmitting Power: 600mA
• Antenna Gain: 2db
• Working Current: 220mA at 12V
• Video Format: NTSC / PAL Auto
• Video Bandwidth: 8M
• Audio Bandwidth : 6.5M
• Weight: about 22g
• Dimension: 54x 32x 10mm(excluding antenna)
• Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug

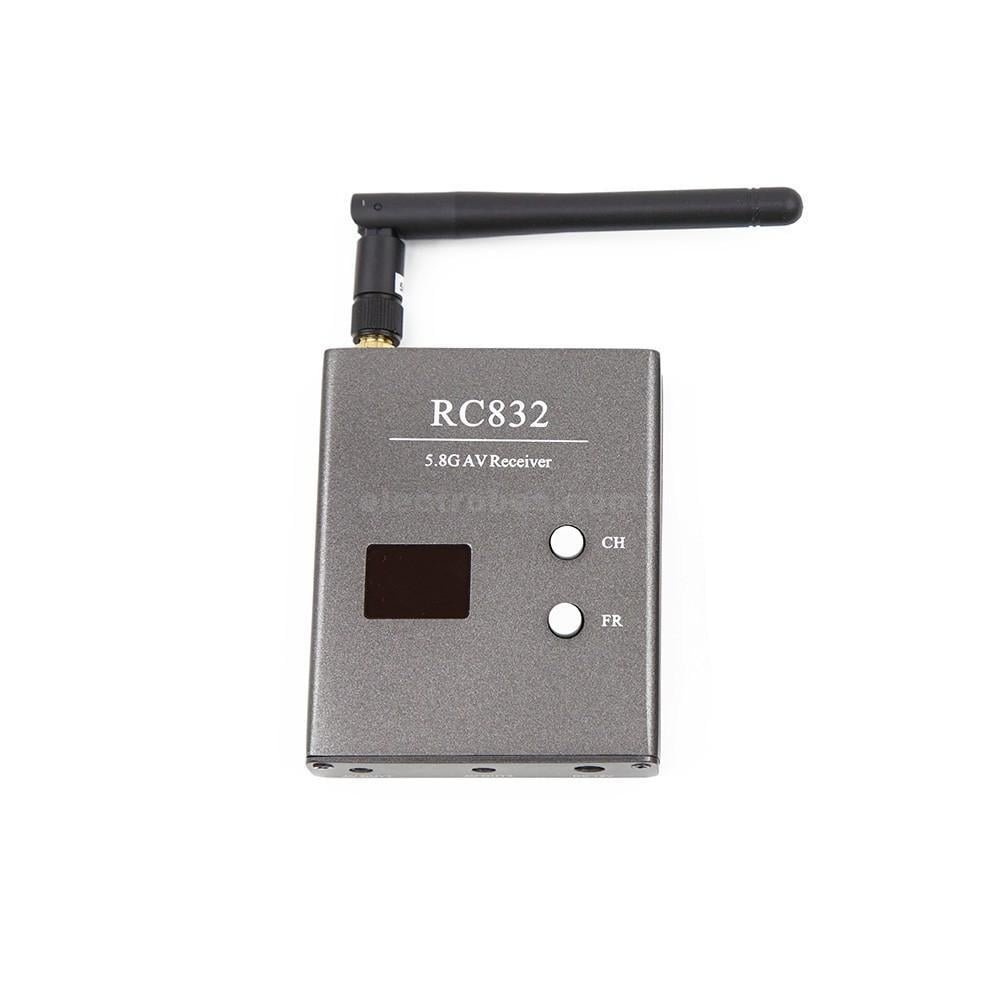

RC832 Specification:

• Item Name: RC832 receiver
• Power Input: 12V
• Working Current: 200mA max
• Antenna Impedance: 50O
• Antenna Gain: 2db
• Video Impedance: 75O
• Video Format: NTSC/PAL auto
• Dimension:  80x 65 x15mm
• Weight: about 85g
• Connector: receiver module side RP-SMA jack, antenna RP-SMA plug
