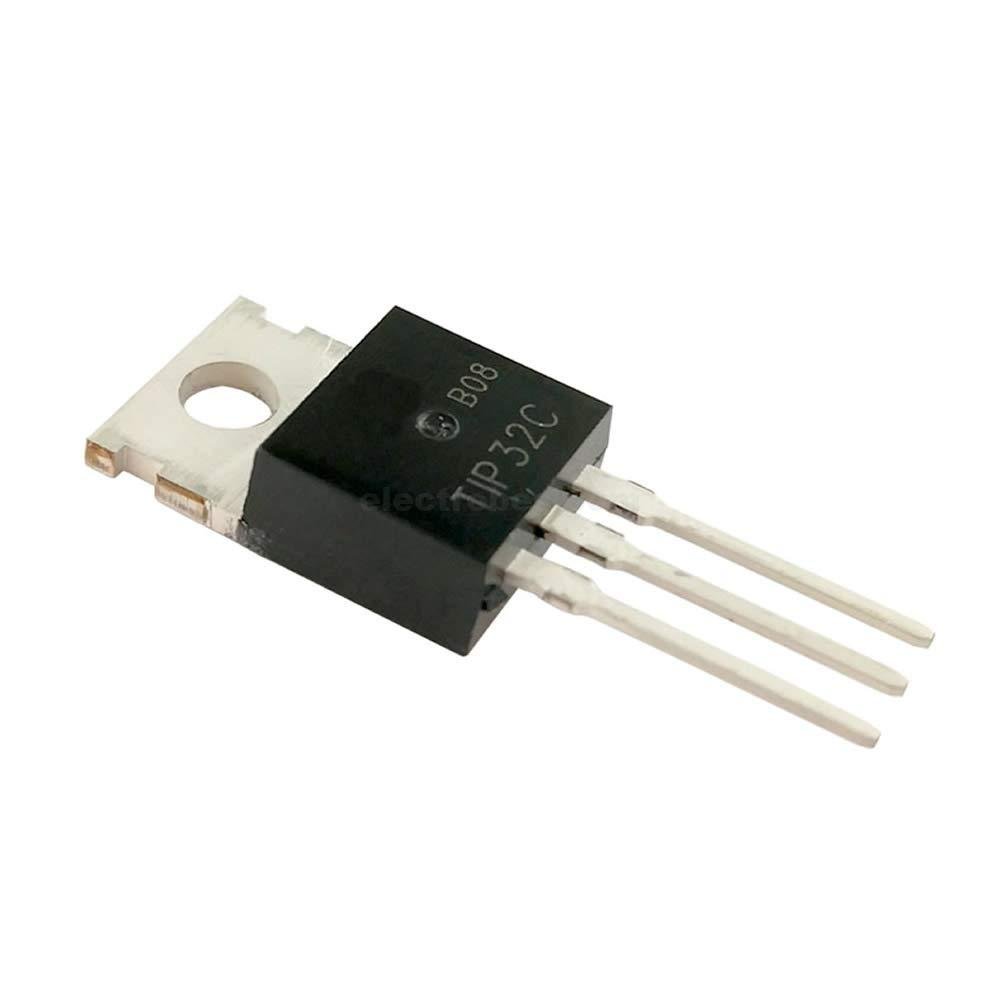

TIP32C Bipolar PNP Transistor 100V 3A TO-220
The TIP32C is a standard PNP bipolar junction transistor that is often used for medium power applications. A bipolar junction transistor (BJT) is a three terminal device that is allows for amplification or switching applications. BJTs consists of three differently doped semiconductor regions, the collector region, the base region, and the emitter region. To buy online in Pakistan visit electrobes.com
In stock
₨ 40 ₨ 45
In stock

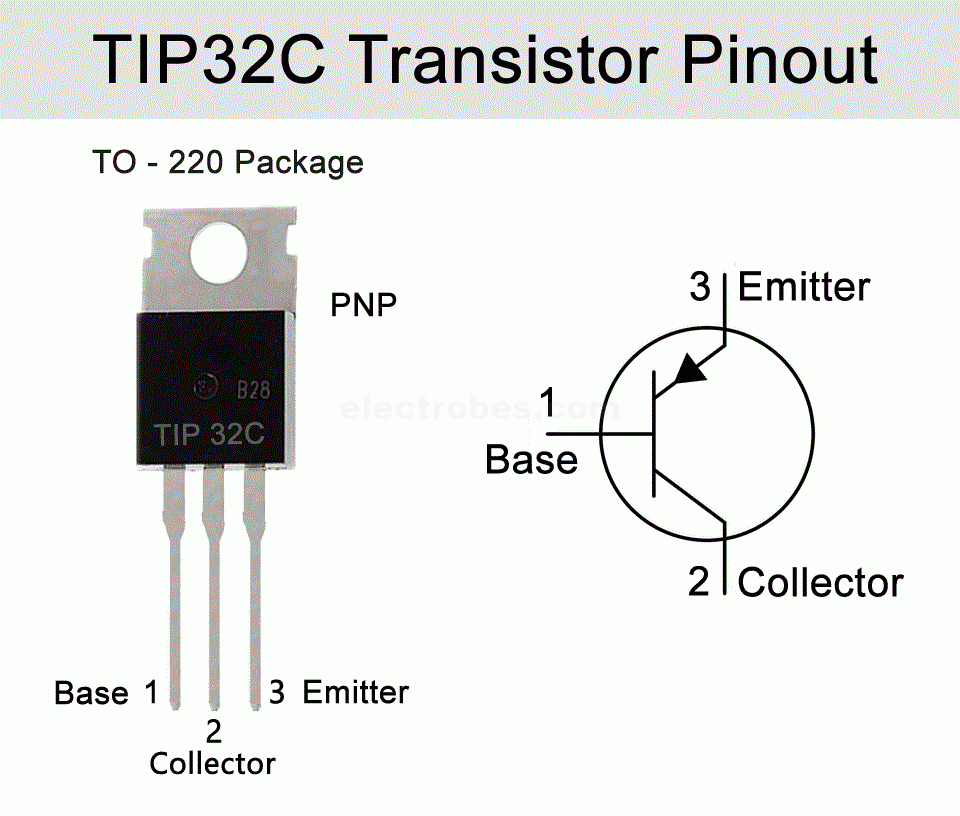

TIP32C is another must have transistor in your electronics lab. It is a low cost power transistor that can serve many general purpose switching and amplification applications. The maximum load this transistor can handle is 3A and the maximum peak current it can handle is 5A, the peak current is the current the transistor cannot handle continuously but in pulses. The maximum load voltage limit is 100V. Other than that it can also serve as an amplifier, the max collector dissipation is 40W which also makes this transistor ideal to use in audio amplifier stages and also as separate amplifier to drive speaker. The metal can tab or the heatsink connection tab is also connected with the collector of the transistor.
Features / Technical Specifications
- Package Type: TO-220
- Transistor Type: PNP
- Max Collector Current(IC): –3A or -3000mA
- Max Collector-Emitter Voltage (VCE): –100V
- Max Collector-Base Voltage (VCB): –100V
- Max Emitter-Base Voltage (VEBO): –5V
- Max Collector Dissipation (Pc): 40W
- Max Transition Frequency (fT): 3 MHz
- Minimum & Maximum DC Current Gain (hFE): 10 – 50
- Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
NPN Complementary
NPN Complementary of TIP32C is TIP31C
Applications
- Separate Audio Amplifier
- Audio Amplifier Stages
- For Handling 3A Load
- DC Motors Driver and Controller
- Darlington Pairs
- Output of Arduino, Raspberry Pi and other Electronic Platforms
- Package Type: TO-220
- Transistor Type: PNP
- Max Collector Current(IC): –3A or -3000mA
- Max Collector-Emitter Voltage (VCE): –100V
- Max Collector-Base Voltage (VCB): –100V
- Max Emitter-Base Voltage (VEBO): –5V
- Max Collector Dissipation (Pc): 40W
- Max Transition Frequency (fT): 3 MHz
- Minimum & Maximum DC Current Gain (hFE): 10 – 50
- Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
