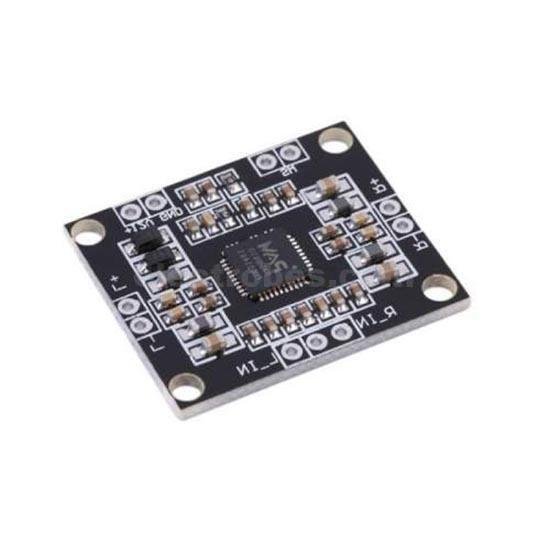

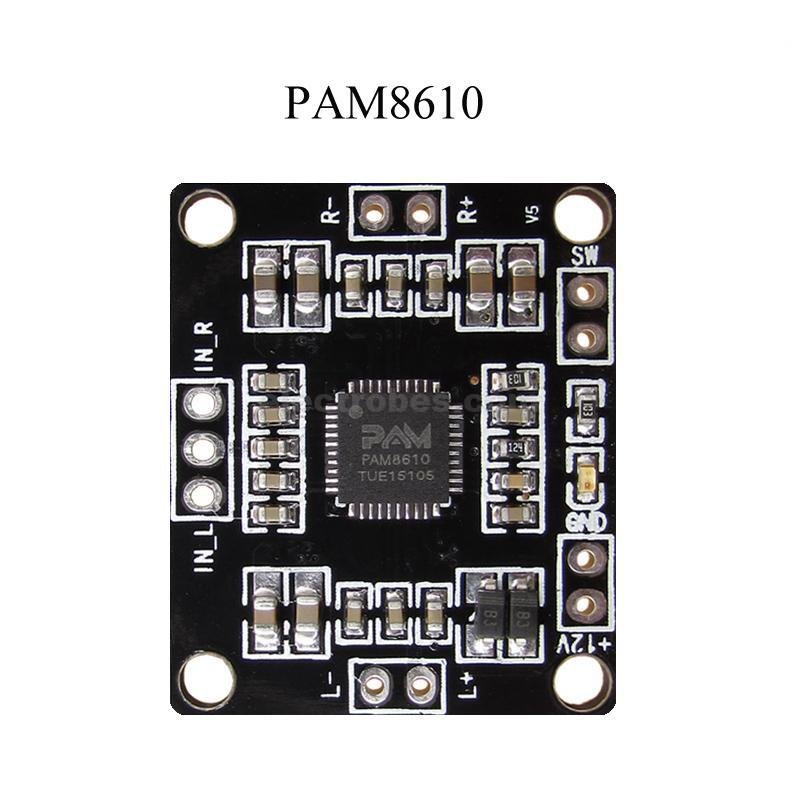

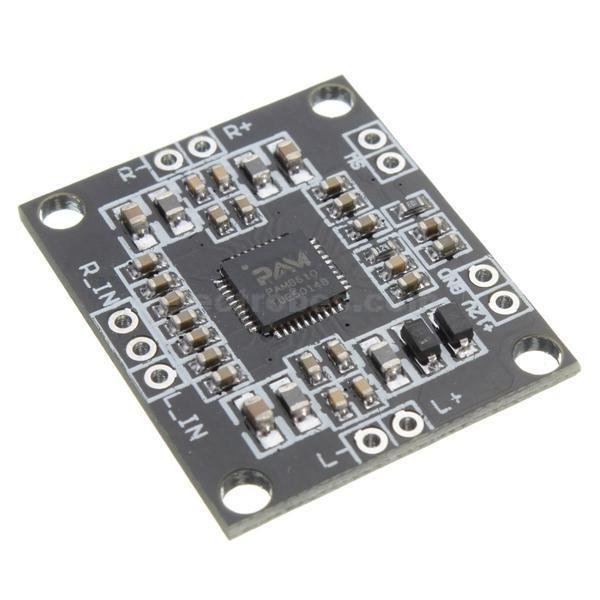

PAM8610 12V Dual Channel Stereo Audio Amplifier Board
PAM 8610 is a class D audio Amplifier. It offers low THD N, allowing it to achieve high quality sound reproduction. The new filter less architecture allows the device to drive the speaker directly, requiring no low pass output filter, thus to save the system cost and PCB area. with the same numbers of external components. the efficiency of PAM8610 is much better than that of class AB. It can extend the battery life.
Only 1 left in stock
₨ 220
Only 1 left in stock
PAM 8610 is a class D audio Amplifier. It offers low THD N, allowing it to achieve high quality sound reproduction. The new filter less architecture allows the device to drive the speaker directly, requiring no low pass output filter, thus to save the system cost and PCB area. with the same numbers of external components. the efficiency of PAM8610 is much better than that of class AB. It can extend the battery life.

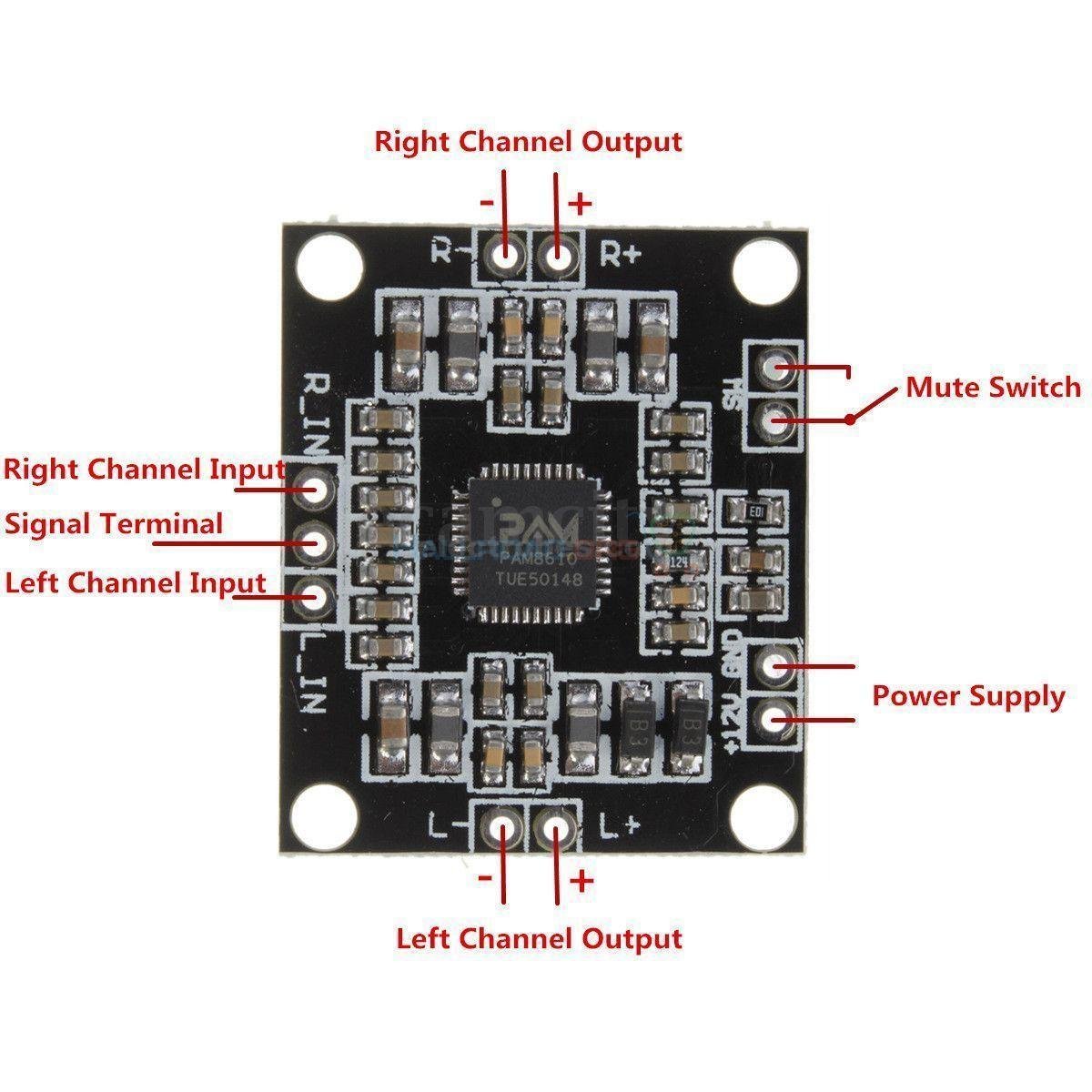

- This plate with switching function, SW short, will turn off the power amplifier
- Working Mode: Class D (PWM modulation type)
- Chip Type: PAM8610
- Power Range: DC 6V-15V (self-protection)
- Recommended Voltage: DC 12V(2A)
- Output Power: 10Wx2(8Ω) 15Wx2(4Ω)
- Frequency Response: 20HZ-15KHZ
- Static Current: 20MA (DC12V)
- SNR: 90% Recommended
- Speakers: 10-100W
- Input Impedance: 15K
- Output Impedance: 4-8Ω
- Harmonic Distortion: <0.1%
- Size: Approx. 3cm x 2.5cm/ 1.19″ x 0.98″
