Showing all 15 resultsSorted by latest
- Audio & Visual, LCD & Display
12864 128X64 KS0108 Dots Graphic LCD Display Module (Blue Color Backlight)
Audio & Visual, LCD & Display12864 128X64 KS0108 Dots Graphic LCD Display Module (Blue Color Backlight)
The 12864B Graphic LCD module is a 128×64 pixel LCD display with a blue backlight and white foreground. The display is fully programmable and can display a combination of both graphics and text. It can operate in both parallel and serial (SPI) modes which can be configured by the external pin PSB. In SPI mode only 3 data pins are required to drive this display.
SKU: 0957 - Audio & Visual, LCD & Display

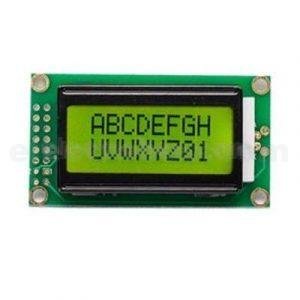

8×2 LCD Display 0802 Character Display – Yellow Green
WH0802A1 is an 8 character by 2 lines 8×2 character LCD display. This 8×2 LCD module is available in various LCD panel colors including gray, yellow/green and blue LCD options. 0802 LCD module is built in with ST7066 controller (or equivalent). WH0802A1 model has different interfaces available, it’s default 6800 4/8-bit parallel 6800 interface, also it’s optional SPI and I2C by using RW1063 IC.
SKU: 0956 - Crystal Oscillators, Discrete Electronic Components
16Mhz Crystal Oscillator
Crystal Oscillator is an Electronics Oscillator circuit which uses the mechanical resonance of a vibrating crystal of piezoelectric material to generate an electrical signal with an accurate frequency. It also has automatic amplitude control and frequency drift is also very low due to change in temperature. Crystal Oscillators are only suitable for high-frequency application.
SKU: 0527 - Crystal Oscillators, Discrete Electronic Components
11.0592Mhz Crystal Oscillator
- 18pF of Load Capacitance
- Frequency Tolerance(Ƹf/f) range is ± 30ppm
- Frequency Temperature Stability range is ±50ppm
- Resonance Resistance 40ohms (max)
- Oscillation mode: Fundamental mode
- Shunt Capacitance less than 7pF
- Drive Level less than 100µW
- Operating Temperature Range: -20 to + 70°C
- Operable Temperature Range: -25 to + 85°C
- Storage Temperature Range: -55 to + 125°C
- Insulation Resistance: 500 M ohms
SKU: 0526 - Crystal Oscillators, Discrete Electronic Components
12Mhz Crystal Oscillator
- 18pF of Load Capacitance
- Frequency Tolerance(Ƹf/f) range is ± 30ppm
- Frequency Temperature Stability range is ±50ppm
- Resonance Resistance 40ohms (max)
- Oscillation mode: Fundamental mode
- Shunt Capacitance less than 7pF
- Drive Level less than 100µW
- Operating Temperature Range: -20 to + 70°C
- Operable Temperature Range: -25 to + 85°C
- Storage Temperature Range: -55 to + 125°C
- Insulation Resistance: 500 M ohms
SKU: 0525 - Crystal Oscillators, Discrete Electronic Components
4Mhz Crystal Oscillator
- 18pF of Load Capacitance
- Frequency Tolerance(Ƹf/f) range is ± 30ppm
- Frequency Temperature Stability range is ±50ppm
- Resonance Resistance 40ohms (max)
- Oscillation mode: Fundamental mode
- Shunt Capacitance less than 7pF
- Drive Level less than 100µW
- Operating Temperature Range: -20 to + 70°C
- Operable Temperature Range: -25 to + 85°C
- Storage Temperature Range: -55 to + 125°C
- Insulation Resistance: 500 M ohms
SKU: 0524 - Crystal Oscillators, Discrete Electronic Components
10Mhz Crystal Oscillator
- 18pF of Load Capacitance
- Frequency Tolerance(Ƹf/f) range is ± 30ppm
- Frequency Temperature Stability range is ±50ppm
- Resonance Resistance 40ohms (max)
- Oscillation mode: Fundamental mode
- Shunt Capacitance less than 7pF
- Drive Level less than 100µW
- Operating Temperature Range: -20 to + 70°C
- Operable Temperature Range: -25 to + 85°C
- Storage Temperature Range: -55 to + 125°C
- Insulation Resistance: 500 M ohms
SKU: 0522 - Crystal Oscillators, Discrete Electronic Components
8Mhz Crystal Oscillator
- 18pF of Load Capacitance
- Frequency Tolerance(Ƹf/f) range is ± 30ppm
- Frequency Temperature Stability range is ±50ppm
- Resonance Resistance 40ohms (max)
- Oscillation mode: Fundamental mode
- Shunt Capacitance less than 7pF
- Drive Level less than 100µW
- Operating Temperature Range: -20 to + 70°C
- Operable Temperature Range: -25 to + 85°C
- Storage Temperature Range: -55 to + 125°C
- Insulation Resistance: 500 M ohms
SKU: 0521 - Crystal Oscillators, Discrete Electronic Components
32.768KHz Crystal Oscillator
- 18pF of Load Capacitance
- Frequency Tolerance(Ƹf/f) range is ± 30ppm
- Frequency Temperature Stability range is ±50ppm
- Resonance Resistance 40ohms (max)
- Oscillation mode: Fundamental mode
- Shunt Capacitance less than 7pF
- Drive Level less than 100µW
- Operating Temperature Range: -20 to + 70°C
- Operable Temperature Range: -25 to + 85°C
- Storage Temperature Range: -55 to + 125°C
- Insulation Resistance: 500 M ohms
SKU: 0520
