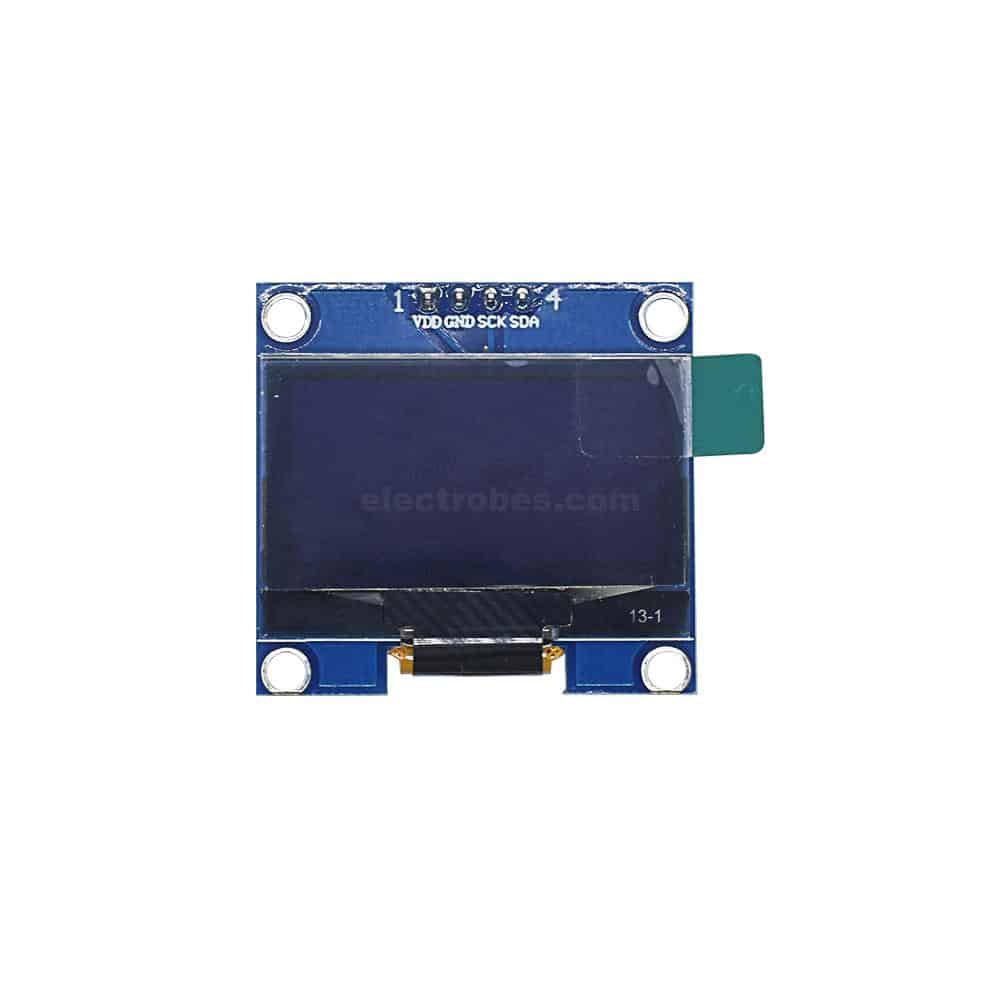

1.3 Inch 128×64 IIC I2C OLED Blue Display Module For Arduino
This OLED display module is small, only 1.3″ inch diagonal, it is made of 128×64 individual blue OLED pixels, each one is turn on or off by the controller chip. It has white backlight and can work without backlight, OLED display is higher compared to that of LCD display, you will like the miniature for its crispness. This module uses I2C to communicate with microcontroller such as Arduino.
In stock
₨ 860
In stock
1.3 Inch OLED IIC Serial Blue White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board For Arduino
The 1.3″ OLED display is a perfect ultra-small display. It is an OLED monochrome 128×64 dot matrix display module with SPI Interface. The characteristics of this 1.3 inch oled display module are high brightness, high contrast ratio, self-emission, slim outline, wide temperature range, wide viewing angle, and low power consumption.
It is compatible with any 3.3v-5V microcontroller, such as the Arduino.
Features of 1.3″ oled display:
- Interface: i2c
- Text Color: Blue
- Diagonal Screen Size: 1.3 inch
- Working Voltage: 3.3 – 5V
- Resolution: 128 x 64
- Driver IC: SSD1106
- Input Voltage: 3.3V/5V
- Pins:
- VCC: (Power)
- GND: (Ground)
- SCL: (Clock)
- SDA: (Data Cable)
- PCB Size: 35.4mm x 33.5 mm
- Display Area: 29.42mm x 14.7 mm
Package List:
- 1 x 1.3 inch 128×64 i2c OLED – Blue
Useful Links:
Adafruit library for 1.3 inch oled
- Color: Blue LED
- Resolution: 128×64
- Power: 0.06W
- Wide power supply range: DC 3V-5V
- Temperature: -30°C to 70°C
- Dimension: 29.28 x 27.1 mm (LW)
- Compatible with 3.3V and 5V control chip I / O level
- OLED internal drive chip: SSD136
- I2C interfaces
- 128*64 Resolution
- 160° viewing angle
