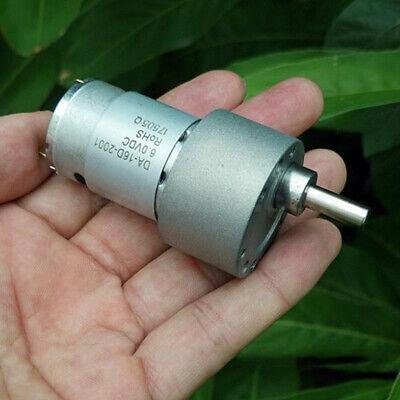

HQ 37GB-395sp-10 12V 740 RPM High Torque High Speed DC Gear Motor

DC 12V 740 RPM High Speed Large Torque Motor has stable and reliable performance. It is very easy to disassemble, clean and maintain. Highlighted feature of this module is excellent quality and long service life. It is micro, compact and light weight. This motor is high-speed and high-power, and is generally powered by a lithium battery or a 12v power supply.

Features:

• Excellent quality and long service life.
• It is micro, compact and light weight.
• This motor is high-speed and high-power, and is generally powered by a lithium battery or a 5v power supply.
• Environmental protection.
• No-load current is 0.14 A.
• Strong Torque.

Specifications:

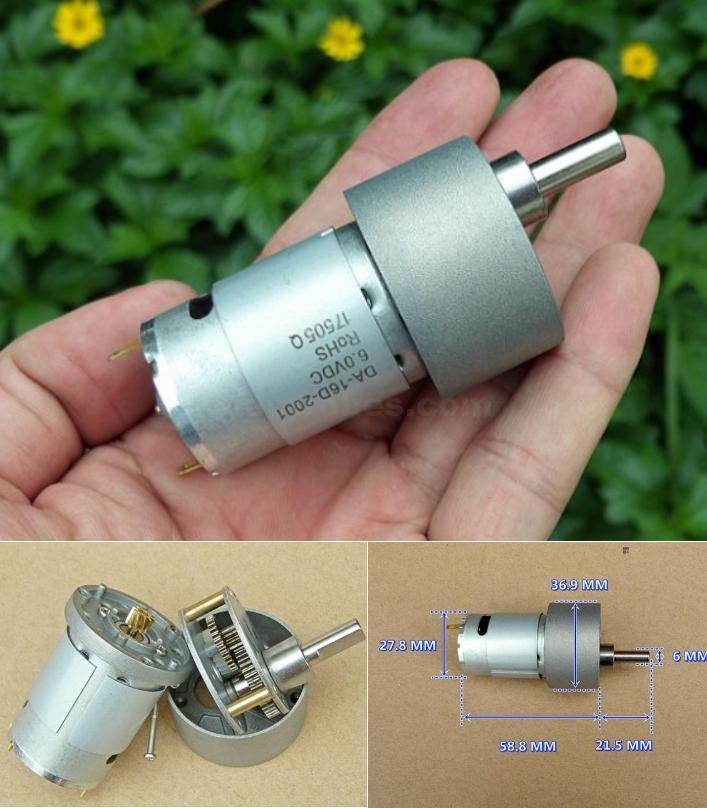

• Motor diameter: 27.8 MM
• Gearbox diameter: 37 MM
• Total height: 65.8 MM (without bearing)
• Output shaft: 6 MM (flat position is 5.4 MM)
• Output shaft length: 18.5 MM (from the panel)
• Weight: 183 g
• Voltage: 12 V/ 13w
• Speed: around 740 RPM
• Current: 0.14 A
• Torque: 1 KG (estimated)

Power Ratings:

• Voltage: 12V DC
• Speed: 740 RPM
• Current: 0.14 A
