16×2 LCD Display 1602 Character Display for Arduino – Blue
- Operating Voltage is 4.7V to 5.3V
- Current consumption is 1mA without backlight
- Alphanumeric LCD display module, meaning can display alphabets and numbers
- Consists of two rows and each row can print 16 characters.
- Each character is build by a 5×8 pixel box
- Can work on both 8-bit and 4-bit mode
- It can also display any custom generated characters
- Backlight Color: Blue
In stock
₨ 320 ₨ 450
In stock

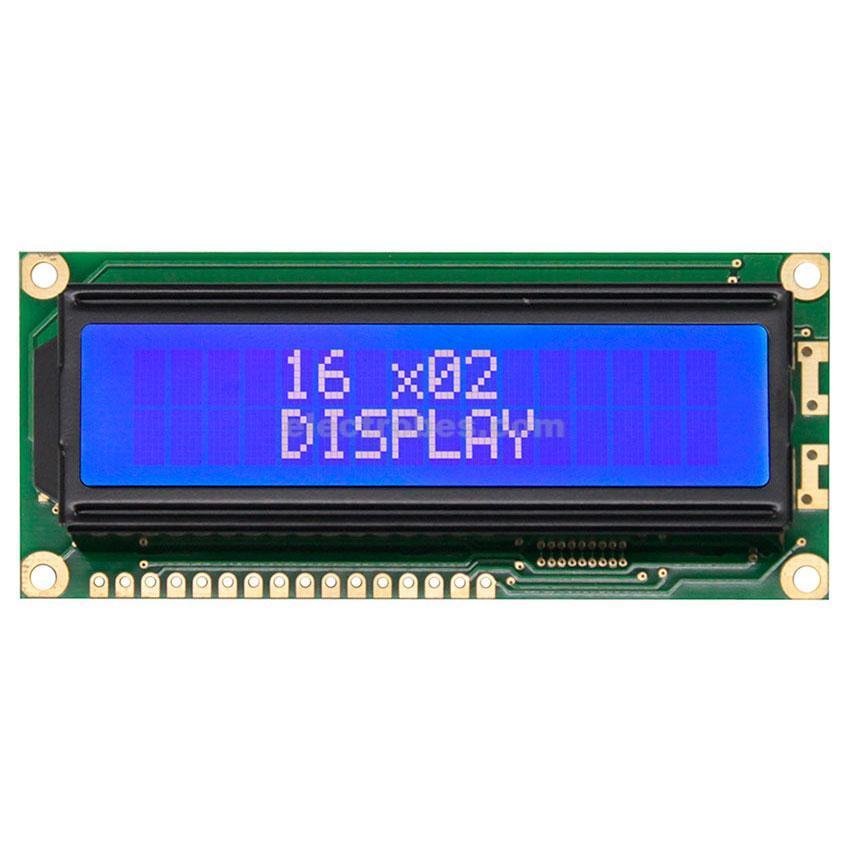

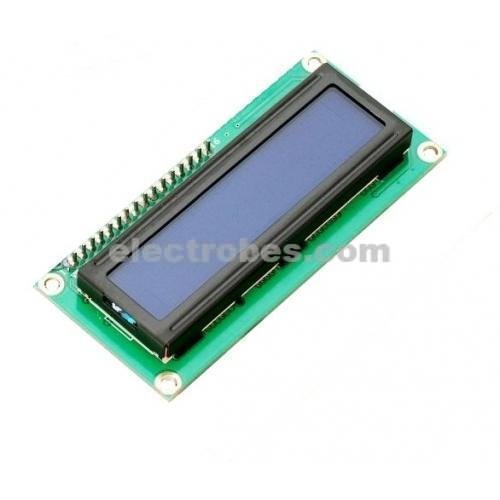

16×2 LCD Display 1602 Character Display for Arduino – Blue
1602 16×2 Blue Character LCD Display For Arduino is a basic 16 character by 2 lines Alphanumeric display. This LCD 16×2 Character LCD Display has White text on a blue background. Utilizes the extremely common HD44780 parallel interface chipset. Interface code is freely available. You will need Minimum 6 general I/O pins to interface to this LCD screen. Includes LED backlight. Works in 4bit and 8 bit Mode.
Features of Blue 1602 LCD 16×2 Character LCD Display For Arduino:
- 16 Characters x 2 Lines
- Blue Backlight
- 5×7 Dot Matrix Character + Cursor
- HD44780 Equivalent LCD Controller/driver Built-In
- 4-bit or 8-bit MPU Interface
- Standard Type
- Works with almost any Microcontroller
Package includes:
- 1x 1602 16×2 Blue Character LCD Display For Arduino
Pin Configuration:
| Pin No: | Pin Name: | Description |
| 1 | Vss (Ground) | Ground pin connected to system ground |
| 2 | Vdd (+5 Volt) | Powers the LCD with +5V (4.7V – 5.3V) |
| 3 | VE (Contrast V) | Decides the contrast level of display. Grounded to get maximum contrast. |
| 4 | Register Select | Connected to Microcontroller to shit between command/data register |
| 5 | Read/Write | Used to read or write data. Normally grounded to write data to LCD |
| 6 | Enable | Connected to Microcontroller Pin and toggled between 1 and 0 for data acknowledgement |
| 7 | Data Pin 0 |
Data pins 0 to 7 forms a 8-bit data line. They can be connected to Microcontroller to send 8-bit data. These LCD’s can also operate on 4-bit mode in such case Data pin 4,5,6 and 7 will be left free. |
| 8 | Data Pin 1 | |
| 9 | Data Pin 2 | |
| 10 | Data Pin 3 | |
| 11 | Data Pin 4 | |
| 12 | Data Pin 5 | |
| 13 | Data Pin 6 | |
| 14 | Data Pin 7 | |
| 15 | LED Positive | Backlight LED pin positive terminal |
| 16 | LED Negative | Backlight LED pin negative terminal |
| Construction | COB (Chip-on-Board) |
| Display Format | 16×2 Characters |
| Display Type | STN, Transflective, Positive |
| Controller | HD44780 or equivalent controller |
| Interface | 8-bit Parallel Interface |
| LCD Color | White Text on Blue Backlight |
| Backlight | LED |
| Viewing Direction | 6 O’Clock |
| Driving Scheme | 1/16 Duty Cycle, 1/5 Bias |
| Power Supply Voltage | 5.0 V |
| VLCD Adjustable For Best Contrast | 5.0 V (Vop.) |
| Operating Temperature | -20⁰C ~ 70⁰C |
| Storage Temperature | -30⁰C ~ 80⁰C |
