1×4 Matrix 4 Keys Keypad Membrane Switch
4 Key Matrix Membrane Switch 1×4 key Matrix Array Keypad Keyboard Control Panel 1*4 keys DIY Kit for Arduino. Buy online in Pakistan
Availability:
Out of stock
₨ 120
Out of stock

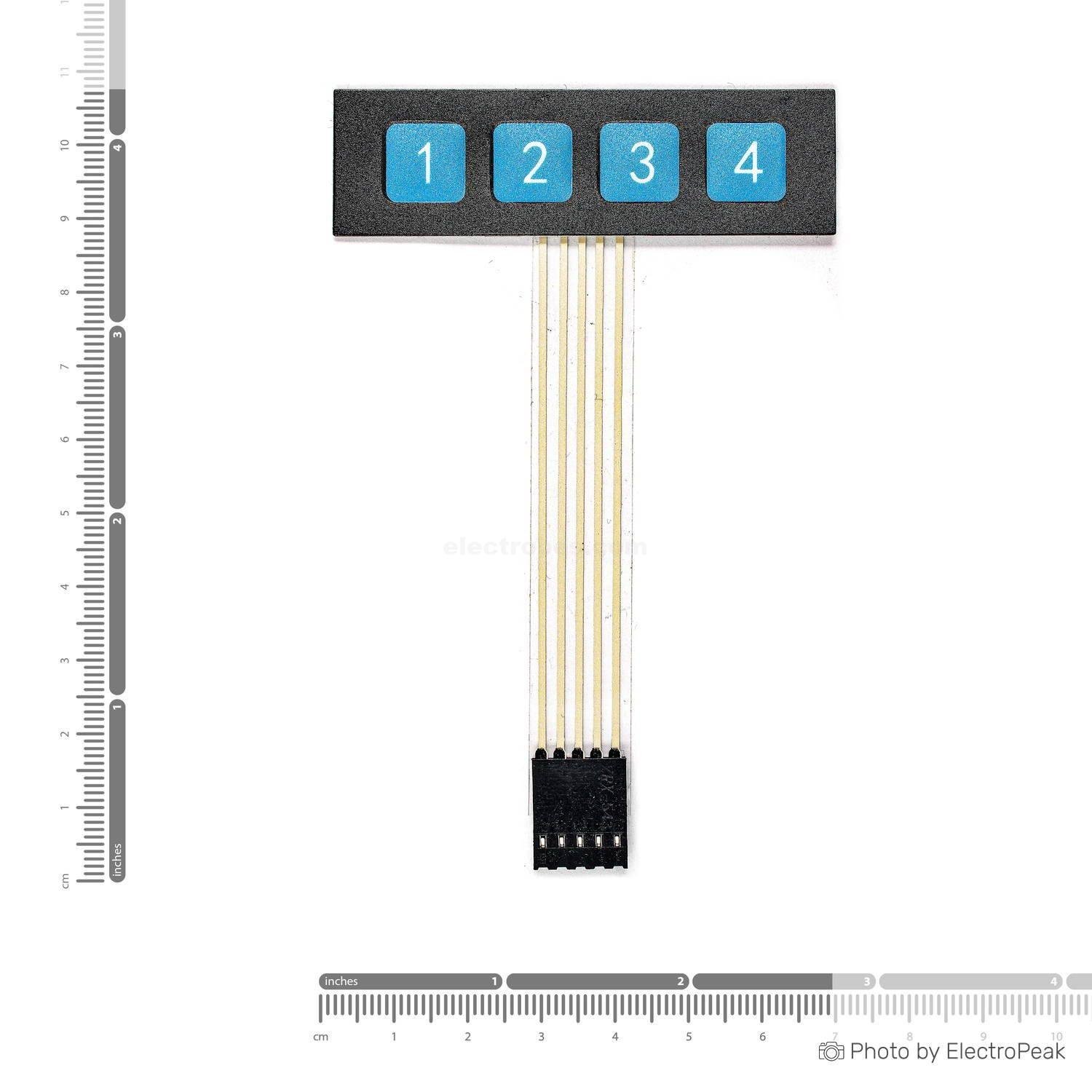

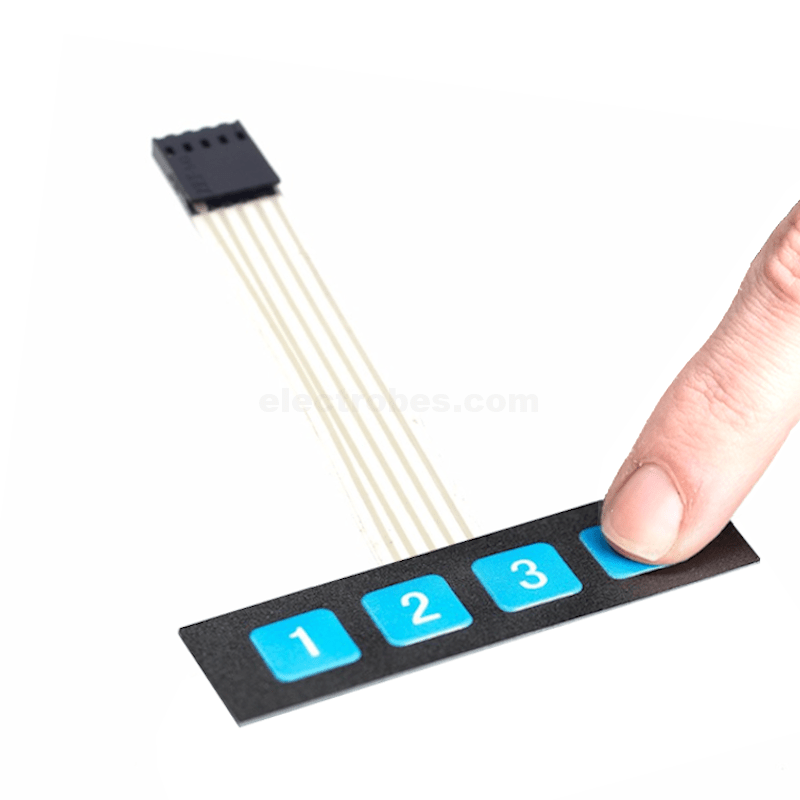

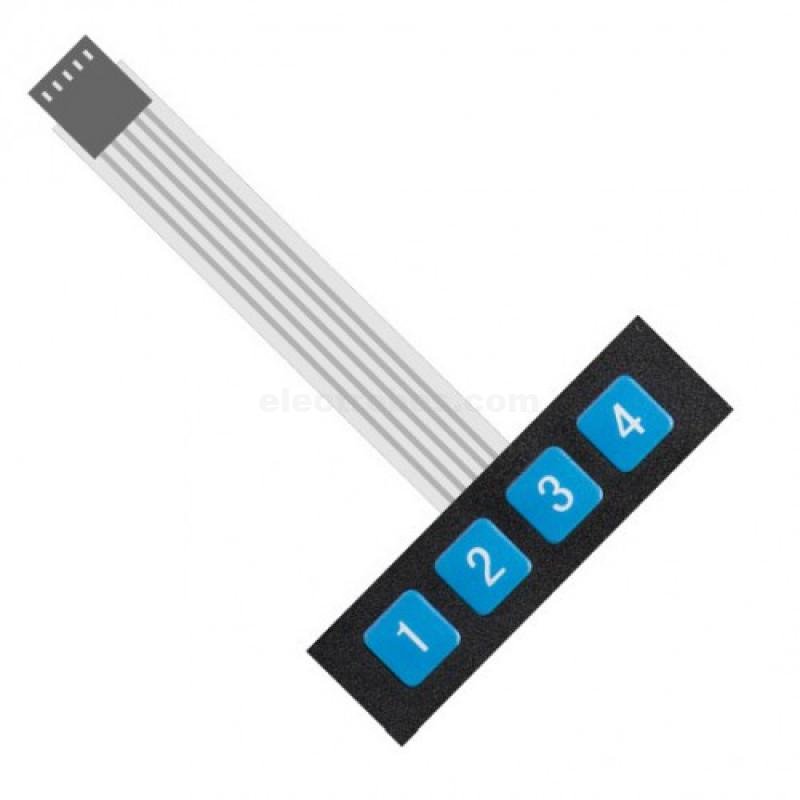

1×4 Matrix 4 Keys Keypad Membrane Switch
Features:
- Ultra-thin design and adhesive backing provides easy integration to any project
- Excellent price-performance ratio
- Easy communication with any microcontroller
Applications :
- Menu selection
- Security systems
- Data entry for embedded systems
- Product Name : Membrane Switch

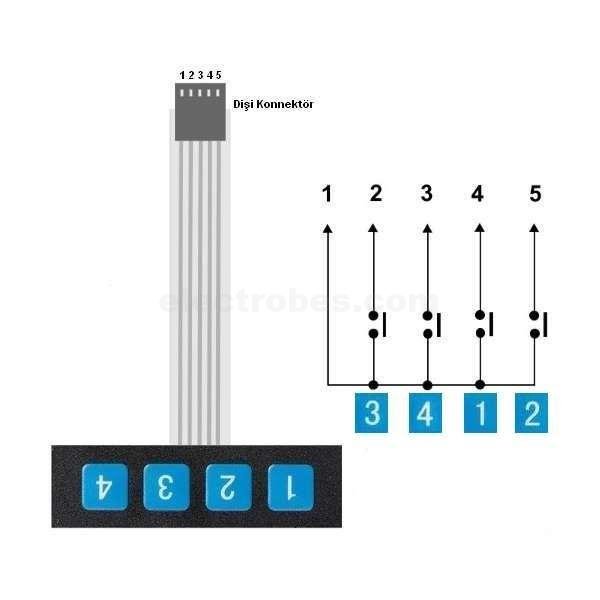

- Matrix (Columns x Rows): 1 x 4
- Output Type: Matrix
- Voltage : DC 12V
- Current : 30mA
- Contact Resistance : >=100 Ohm
- Force : 250-350g
- Contact Bounce : >1s
- Pad Size : 76 x 69 x 0.8mm/3” x 2.7” x 0.03”(L*W*T)
- Cable Length : 72mm/2.8”
- Connector Pitch : 2.54mm/0.1”
- Material : Plastic
- Weight : 9g
- Package Content : 1 x 4 Membrane Switch
- Mounting Type: Panel Mount, Front
- Number of Keys: 4
