2000W 9-50V 40A DC Electronic Speeder PWM Motor Speed Controller
This is a simple and easy-to-use 40A High Power DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. Buy online in Pakistan
In stock
₨ 1,850
In stock
Description:

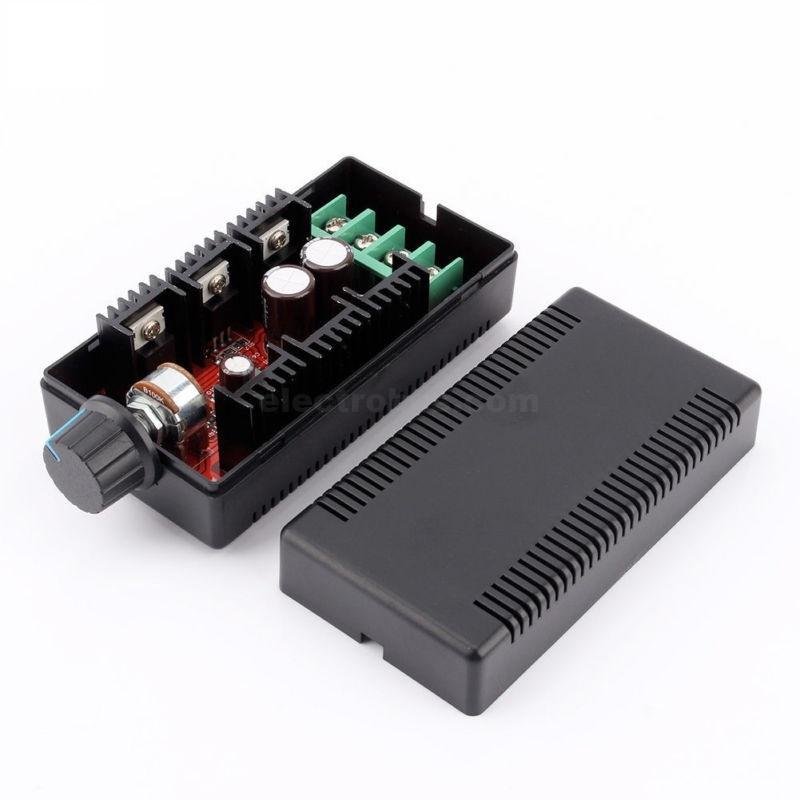

This 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V is used to control the speed of DC motors from 9V to 50V with a maximum power of 2000W. This controller can provide up to 40A of current depending on the power supply. The board comes with a protective housing made from ABS plastic. The controller has 6 high-quality NCE7190A MOSFET’s which are connected to the individual heatsinks.
40A 2000W DC Controller is a PWM speed controller which enables you to control the speed of those DC brush motors smoothly. It’s great for applications like car motors, DC heater, bulb etc. providing nice adjustment of motor speed. Its best speed controller for higher current rating and wide voltage range with best reliability.
Voltage range can be utilize in engineering system and e-bike motors to speed control.
Features:
- Wide voltage range, 10-50V, 40A, max. 2000W for motor speed control & HOO.
- Apply PWM Modulation system to adjust motor speed from 5-100% .
- Stable in working, high efficiency and low noise.
- Field-effect tube, drive IC, 70μm copper sheet PCB for higher efficiency of PWM wave output.
- Potentiometer for speed adjustment, protective case creates better durability.
PWM Working Principle:
By changing the duty ratio of square wave(output) to adjust average current power from 0-100% on load, thus to change the motor speed or light brightness.
Specification:
- Working Voltage DC 9V-DC 50V
- Control power
- 0.01-2000W (Max. rated current 40A):
- for working voltage 12V: 12V*40A =480W
- for working voltage 24V: 24V*40A=960W
- for working voltage 36V: 40V*40A=1600W
- for working voltage 50V: 50V*40A=2000W
- Quiescent current: 0.025A
- PWM duty cycle: 5% -100%
- PWM frequency: 12khz
- Operating temperature: -20 – 40℃
- Size: 90*81*30 mm
- Colour: Black
- material: Plastic + metal
- Working voltage: DC10V- DC 50V
- Peak current: 40A
- Output : 0.01-2000W (max)
- Recommended use range:12V 250W;24V350W;36V 400W;48V 500W
- Quiescent current:0.025A
- PWM Regulation range:5-100%
- PWM Frequency : 200hz
- PCB Size:90x51mm(inch:3.5 inchx2 inch)
- Case size:105x55x40mm(inch:4 inchx2.2 inchx1.6 inch)
- operating temperature: -40Celsius~+85Celsius (40º F-185º F)
- Shipping Weight : 150g
