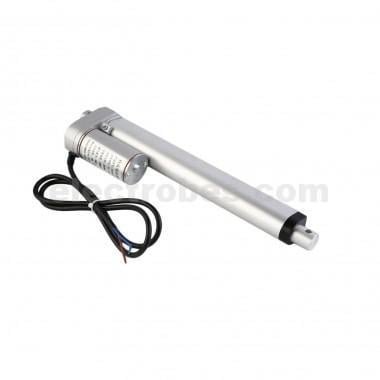

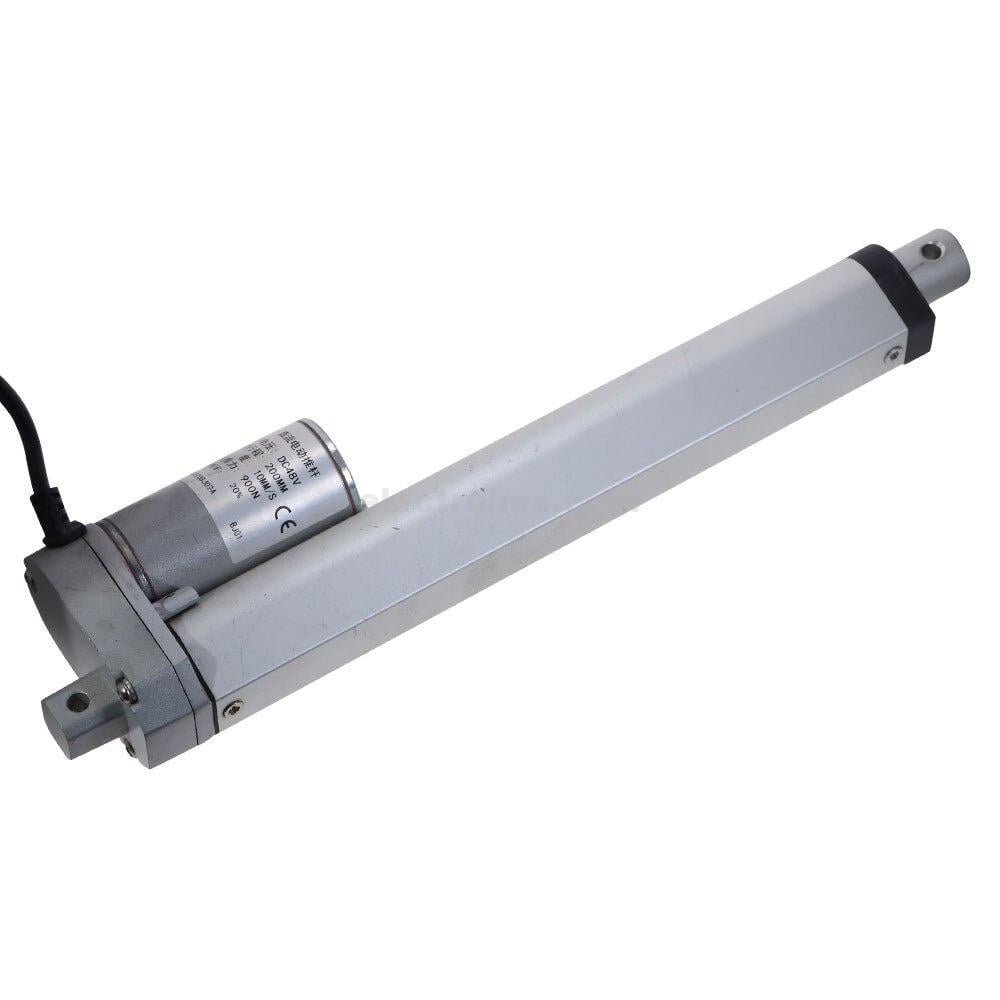

200mm 12V DC High Torque Linear Actuator Motor
The linear actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.
₨ 9,500
This miniature linear actuator is used for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. Available in 50mm, 100mm, 200mm and 300mm stroke.
Applications
- Autos
- Solar tracking system
- Agricultural machinery
- The wedding system
- Industrial electric lifting system
- Chair for medical use
- Electric wheelchair, Massage Chair, dental chair
- The medical electric bed, surgical bed, traction bed
- Electric equipment such as
- Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc
Features
- Reliable performance
- Stable running
- The same characteristics of push and pull
- Good environment adaptability
- Heavy Duty and Long Lasting Motor
- High-quality aluminum alloy material
- High-performance motor
- Built-in high quality limit switch
Specifications
- Rated Voltage: DC 12V
- No-load current<1A
- Max load current=3A
- Stroke Length: 200mm
- Load capacity: 500N
- Speed: 20mm/s
- Duty cycle: 20%
- Material: Aluminum alloy
- Net weight: 750g
Package Included
- 1 x 200mm Stroke Linear Actuator
- Rated Voltage: DC 12V
- No-load current<1A
- Max load current=3A
- Stroke Length: 200mm
- Load capacity: 500N
- Speed: 200mm/s
- Duty cycle: 20%
- Material: Aluminum alloy
- Net weight: 750g
