2S 8A 7.4V Cell 18650 Li-ion Lithium Battery Charging BMS PCB Board with Protection Charger Module
Battery Protection Board 2s 8a Bms For 18650 Lithium Ion Cells Hx-2s-jh10
In stock
₨ 180
In stock

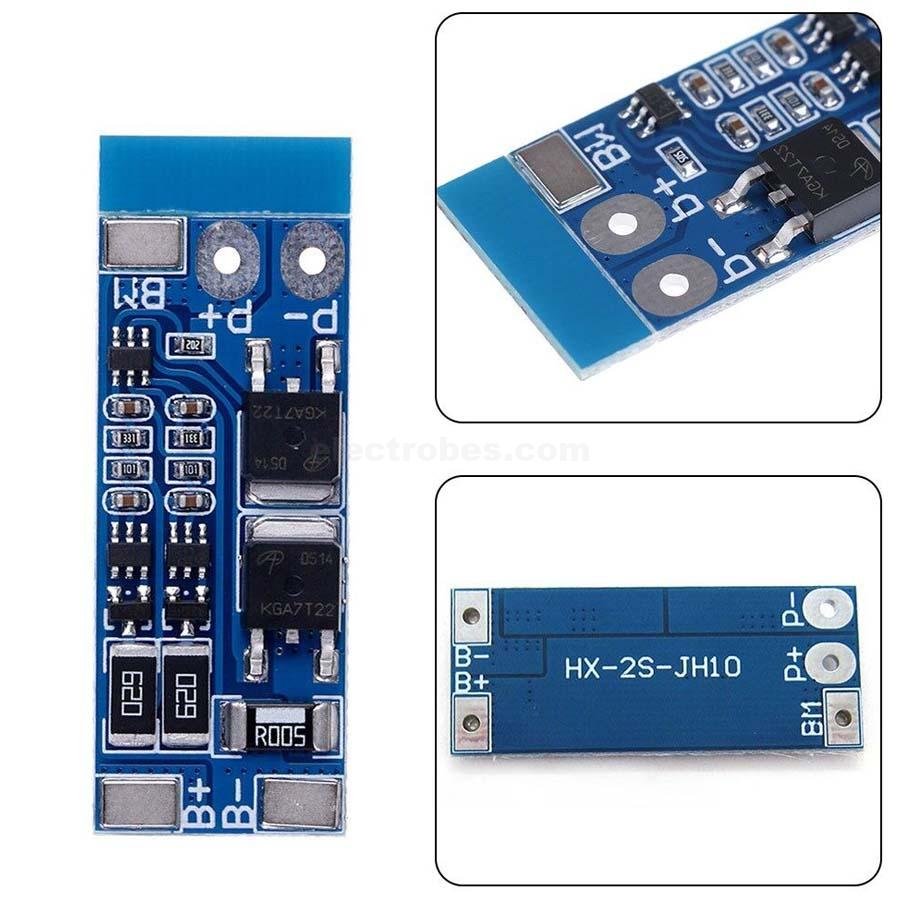

Hx-2s-JH10 2S 8A 7.4V Cell 18650 Li-ion Lithium Battery Charging BMS PCB Board with Protection Charger Module
2S 8A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger protection module. This small and smart battery charger protection module comes with various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.

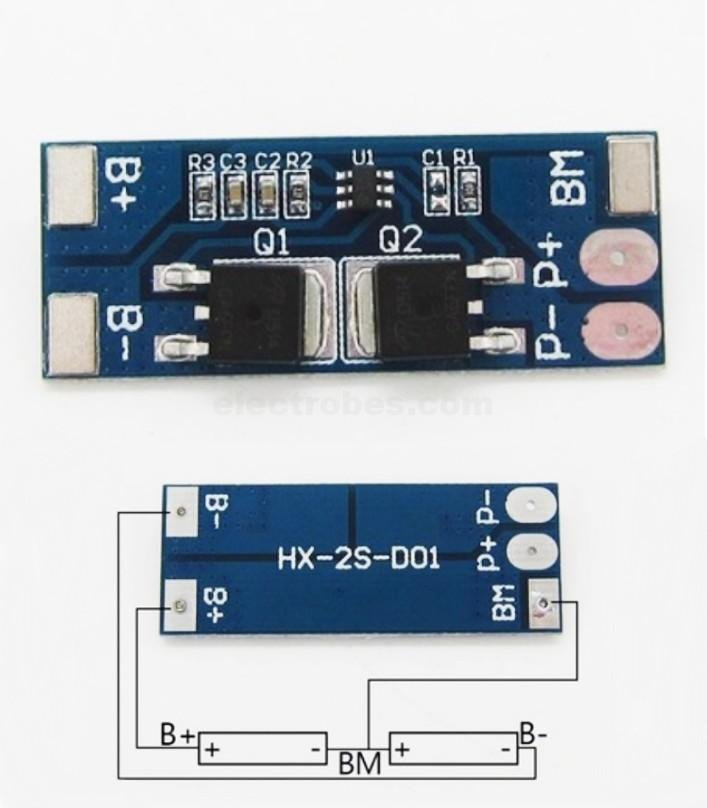

Pin Descriptions:
B+ B-: The interface of battery core
P+ P-: The connector of the battery board
BM: The connection point between the batteries
B+: Battery V+ Positive
B-: Battery V- Negative
P+: Output / Charging V+
P-: Output / Charging V-
Note:
The protection board cannot be used for lithium iron phosphate batteries, hernia lamps, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, buggy battery, 775 (4A) above the motor, 1W fisheye LED lamp.
Key Features:
- High-Precision Voltage Detection: Accurately monitors battery voltage for optimal protection.
- Integrated Overcurrent Protection: Prevents damage from excessive current draw.
- MOS Transistor Control: Efficiently manages battery charging and discharging.
- Low Standby Current: Minimizes power consumption when not in use.
- Compact Design: Small and lightweight for easy integration into your projects.
Applications:
- Lithium-Ion Battery Packs: Protect 2S (two-cell) lithium-ion battery packs.
- Power Tools: Ensure battery safety in cordless tools.
- RC Vehicles: Protect battery packs in remote-controlled vehicles.
- Portable Electronics: Safeguard batteries in portable devices.
Order Your 2S 8A BMS Board Today!
Enhance the safety and longevity of your lithium-ion batteries with this reliable protection board
- Model: HX-2S-JH10

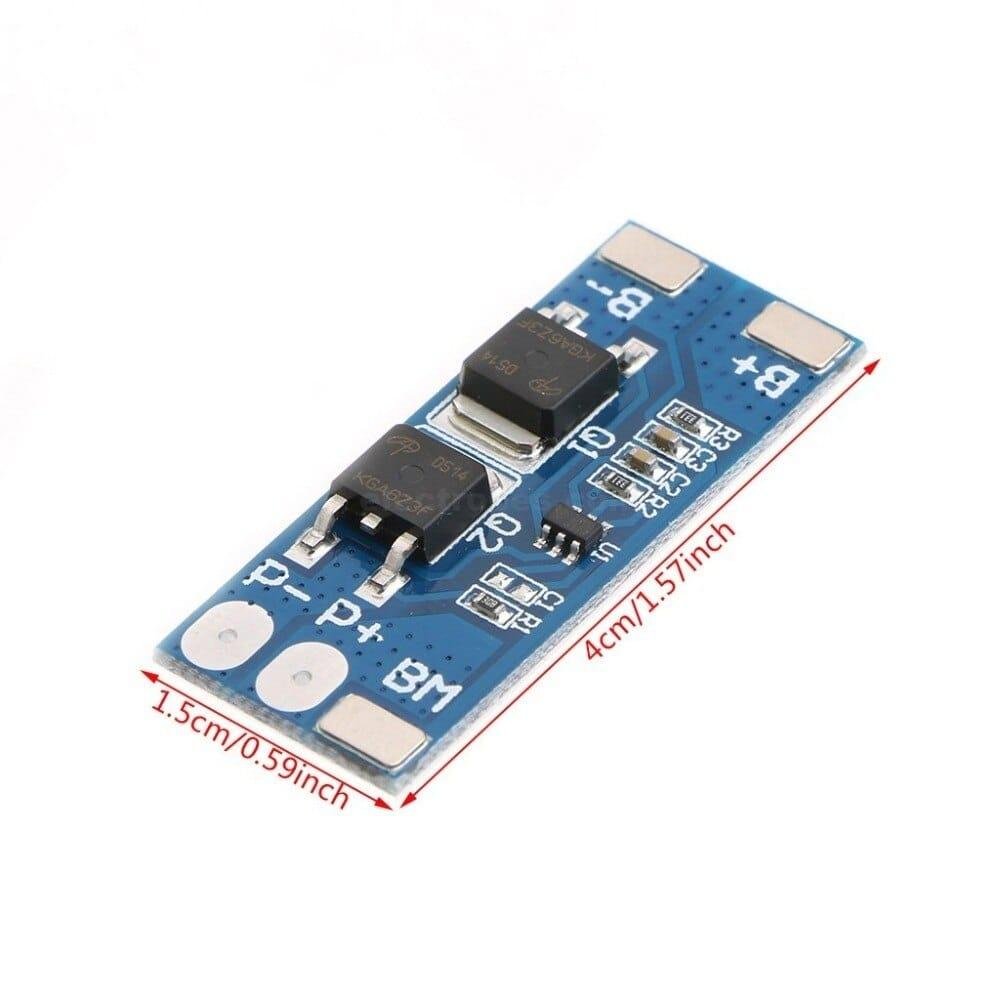

- Size: 40*17*3.5mm
- Over-discharge voltage range: 2.5-3.0v±0.05v
- Overcharge voltage range: 4.25-4.35v±0.05v
- Upper limit working current: 8A
- Upper limit instantaneous current: 10A
- Working temperature: -40— 50 °C
- Storage conditions: -40– 80 ° C
- Quiescent current: less than 10uA
- Effective life: more than 50,000 hours
- Internal resistance: less than 300mΩ
- Charging voltage: 8.4V-9V
- Short circuit protection: protection, disconnect load delay self-recovery Solder join
