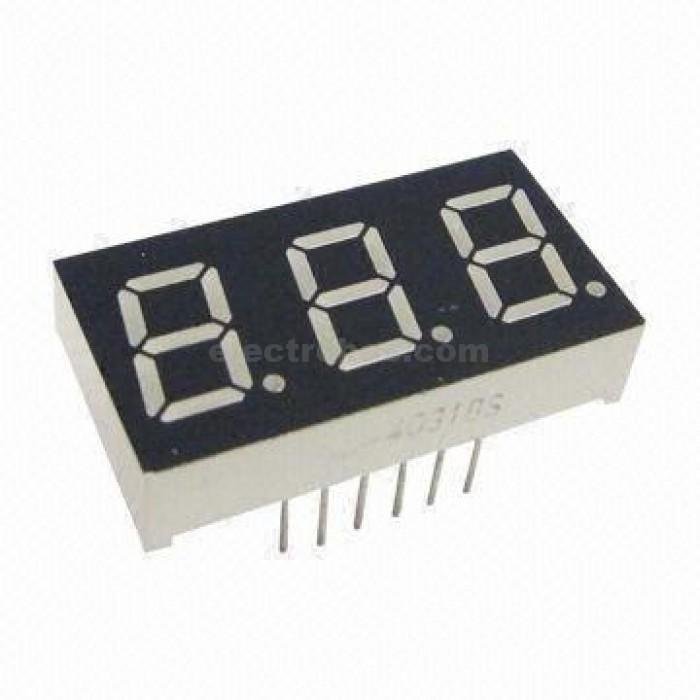

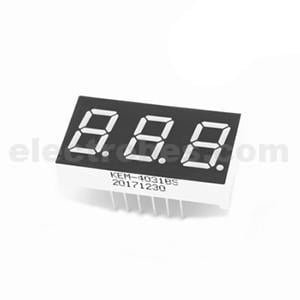

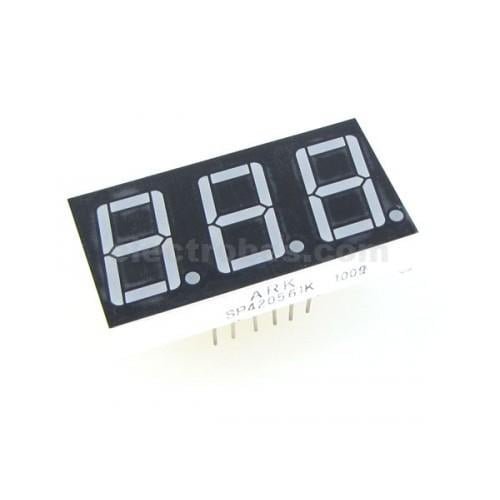

3 Digit 7 Seven Segment Display Common Anode BCD

This is a basic, 3-digit 7-segment display – red in color. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points. The LEDs have a forward voltage of 3VDC and a max forward current of 20mA. This is the way the display works. It’s multiplexed, so you select the digit by setting its pin (we’ll get into pins later) HIGH, and you select the segment by setting its pin LOW. You display multiple digits at once by rapidly cycling through them. Uses Timer ,Counter ,Watch ,Stopwatch ,Token Display machine, And Endless applications that you can think

PACKAGE INCLUDES:

• LED 7-Segment 0.56″ Red CA 3-Digit

KEY FEATURES OF LED 7-SEGMENT 0.56″ RED CC 3-DIGIT:

• 3-digit 7-Segment display with common Anode
• 0.56″ high characters
• 20 mA current
• 2V forward voltage drop
• Red color

7-Segment displays are very useful for making numeric or hexadecimal displays such as for a clock, timer, counter, voltmeter or similar application.
