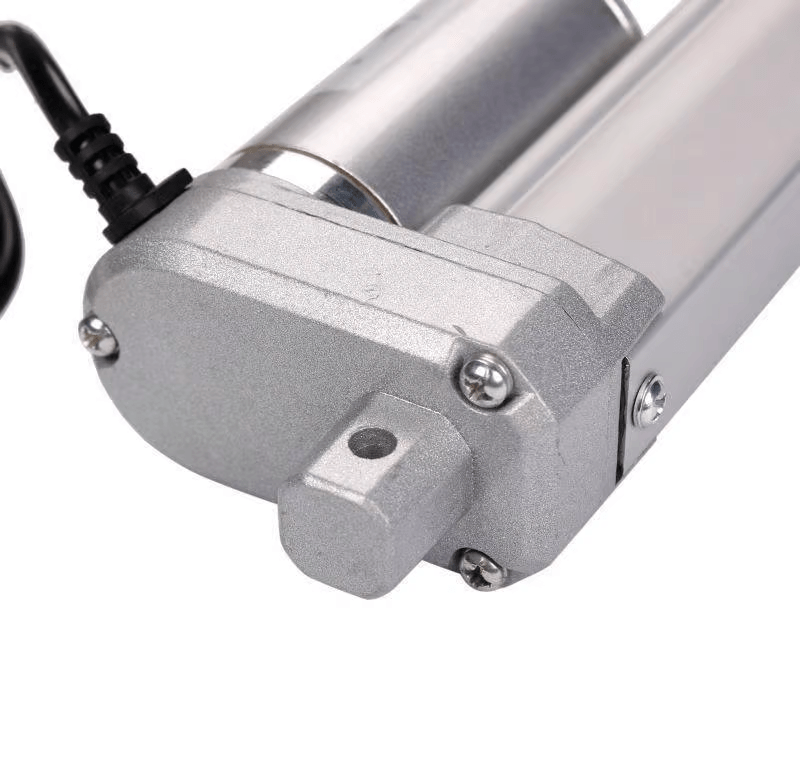

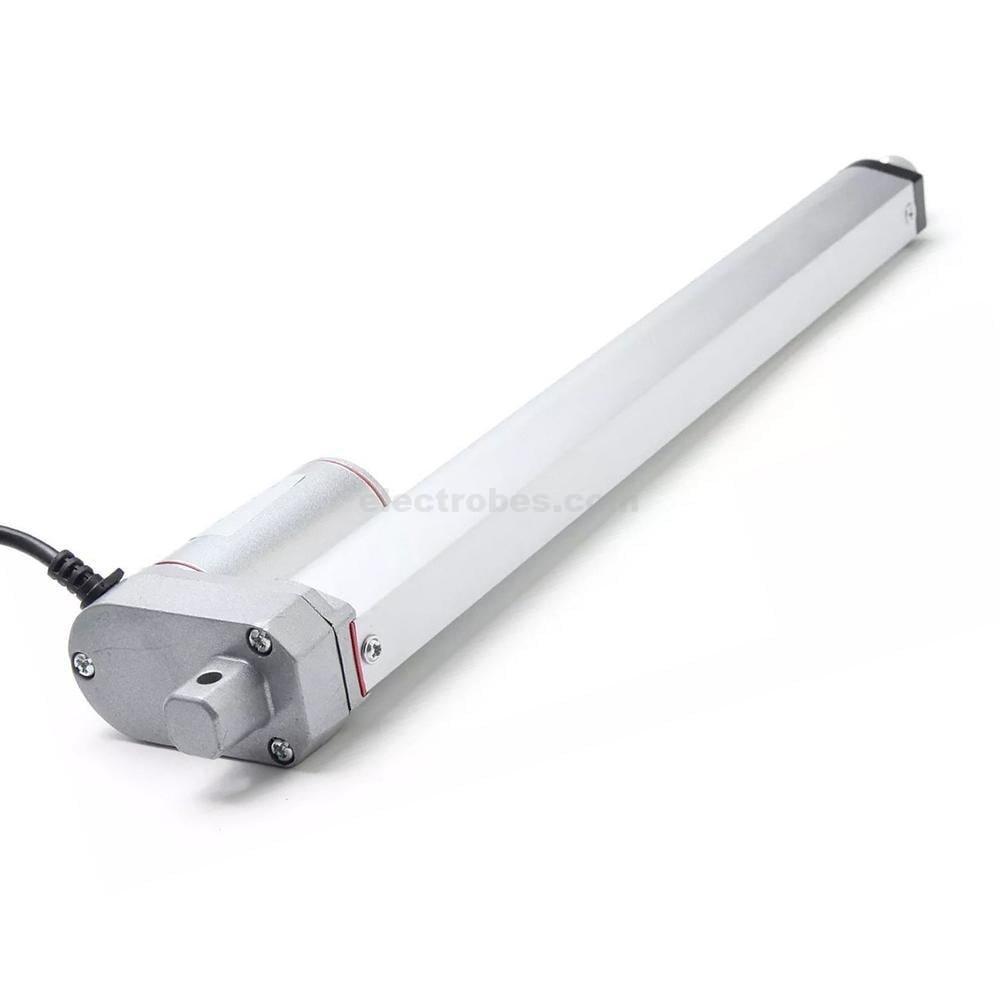

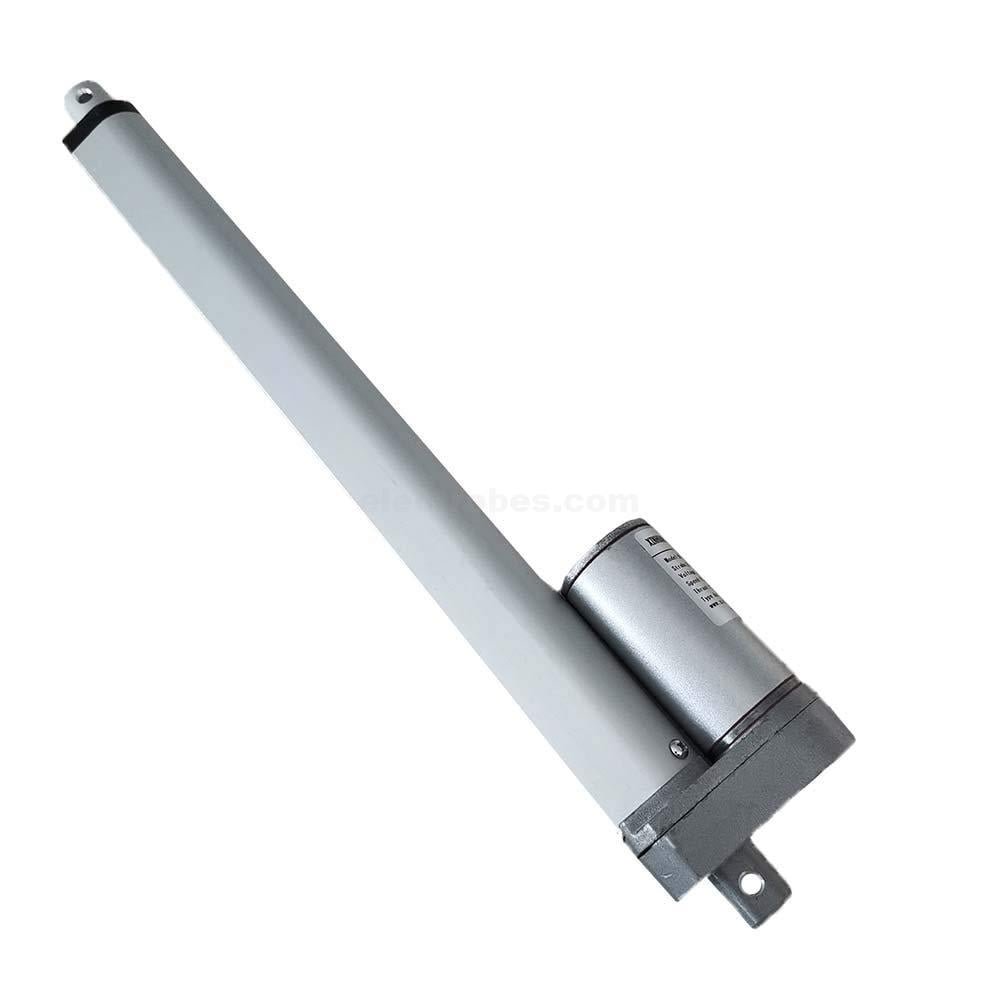

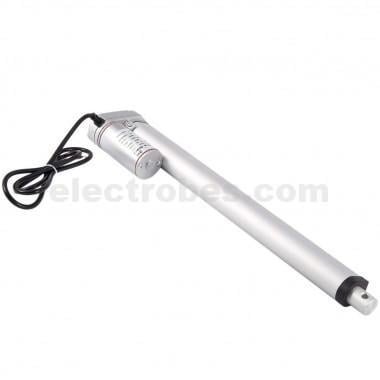

300mm 12V DC High Torque Linear Actuator Motor
The linear actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.
₨ 11,500
Description:
This miniature linear actuator is using for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. Built-in limit switches, not adjustable after leave factory. Available in 50mm, 100mm, 200mm and 300mm stroke.
Applications
- Autos
- Solar tracking system
- Agricultural machinery
- The wedding system
- Industrial electric lifting system
- Chair for medical use
- Electric wheelchair, Massage Chair, dental chair
- The medical electric bed, surgical bed, traction bed
- Electric equipment such as
- Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc
Features
- Reliable performance
- Stable running
- The same characteristics of push and pull
- Good environment adaptability
- Heavy Duty and Long Lasting Motor
- High-quality aluminum alloy material
- High-performance motor
- Built-in high quality limit switch
Specifications
- Rated Voltage: DC 12V
- No-load current<1A
- Max load current=3A
- Stroke Length: 200mm
- Load capacity: 500N
- Speed: 20mm/s
- Duty cycle: 20%
- Material: Aluminum alloy
- Net weight: 1000g
Package Included
- 1 x Linear Actuator
- Continuous Current(A): 2.3A
- Output Power: 18w
- Commutation: Brush
- Type: DC Motor
- Protect Feature: waterproof
- Construction: Permanent Magnet
- Torque: 1500N
- Color: Silver grey
- Material: Aluminum alloy
- Operation temperature: -26 ° C ~ +65 ° C
- Operating frequency: 20%
- Duty cycle: 25%
- Stroke Length: 300mm/12inch
- Max Load: 1500N/330lbs
- Speed(RPM): 5.7mm/s
- Voltage(V): DC 12v
