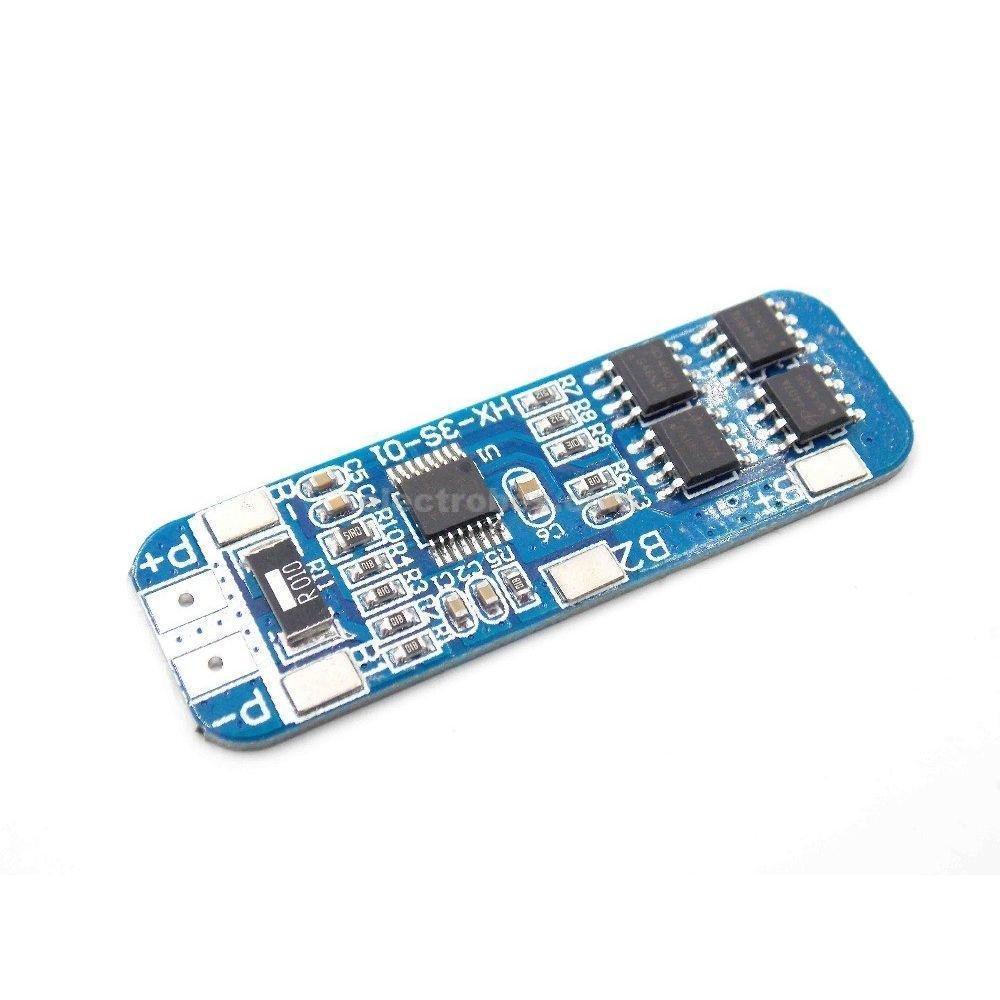

3S 10A 12.6V Cell 18650 Li-ion Lithium Battery Charging BMS PCB Board with Protection Charger Module
3S 10A 11.1V-12.6V Cell 18650 Li-ion Lithium Ion Battery Balanced Charging BMS PCB Board with over-charge Protection for 18650, 26650 battery. Buy in Pakistan
In stock
₨ 230
In stock
3S 10A 12.6V Cell 18650 Li-ion Lithium Battery Charging BMS PCB Board with Protection Charger Module
- Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650, 26650, lithium polymer batteries)
- Product Size: 64mm x 20mm x 3.4mm
- Material: Metal
- Charging voltage: 12.6V
- Maximum output current: 10A
- Maximum output power / charging power: 126W
Note:
1. Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2. After connection, it need to first charge activation, then will have the output.
3. Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying.
- Model: HX-3S-01
- Charging voltage: 12.6 V-13 V
- Overvoltage range: 4.25-4.35 V ± 0.05 V
- Overvoltage range: 2.3-3.0 V ± 0.05 V
- Maximum operating current: 5A – 6A
- Upper instantaneous current limit: 8A
- Current: less than 30uA
- Internal resistance: less than 45 MΩ
- Service life: more than 50000 hours
- Operating temperature: -40 to + 50 degrees
- Storage conditions: -40 to + 80 degrees
- Size: 50 * 16 * 1 mm
- Protection against short circuit: protection, self-healing delay
