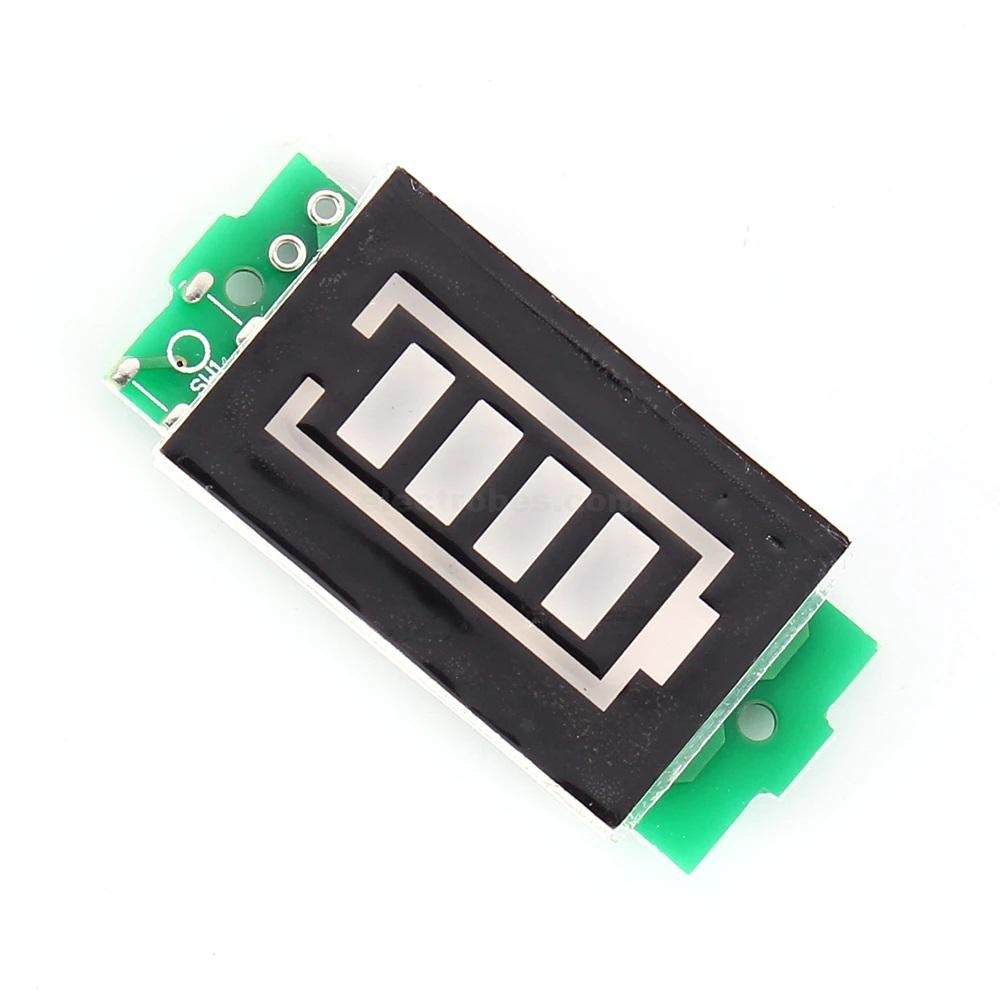

3S 11.1V-12.6VDC Lithium Battery Capacity Level Indicator Module

Battery Display:

  • When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity
    (note: N represents battery quantity)
  • When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
  • When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
  • When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity.
  • When battery voltage is less than N*3.3V,4 blocks display will be off; it represents battery
    is less than 3.3V,and you can charge the battery.
Compare
Availability:

In stock

 230

In stock

3S Lithium Battery Capacity Indicator provides a quick visual reference of the charge status (capacity) of 18650 Lithium-ion batteries as well as other lithium batteries with a maximum voltage of 4.2 volts per cell. 11.1V Lithium Battery Capacity indicator is perfect for DIY power supplies, battery chargers, RC and electric vehicles, to provide quick and easy-to-read voltage status of the battery. This 3S Lithium battery Capacity Indicator color is red and the display bars are blue.



Features:

1.Battery type electricity quantity display.

2.Wide application fields: lithium battery.

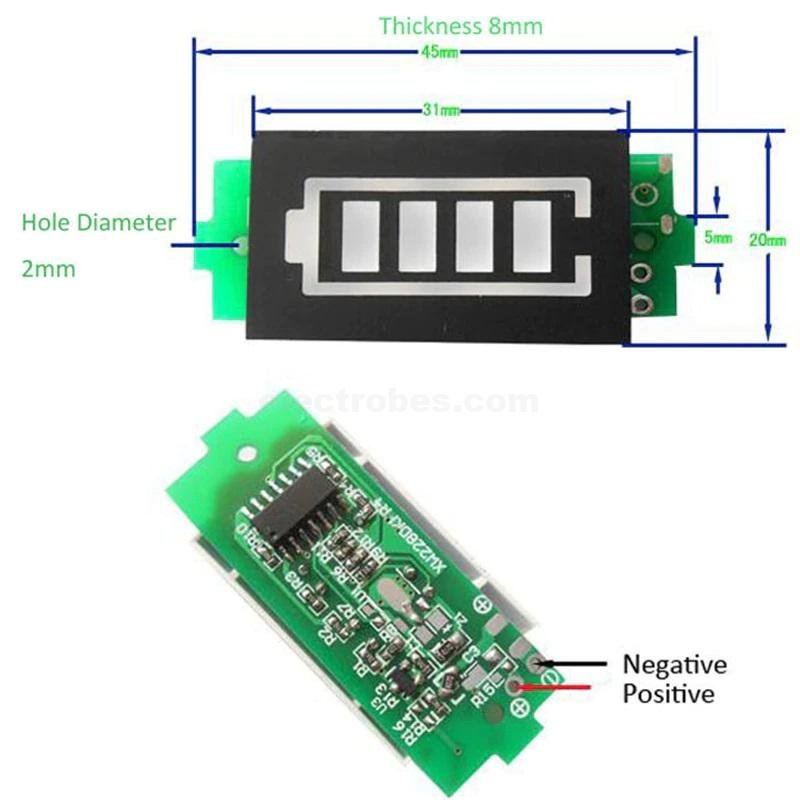

3.Using Method: connect display board positive and negative port with tested battery positive and negative port, digital tube will display real-time battery electricity quantity.

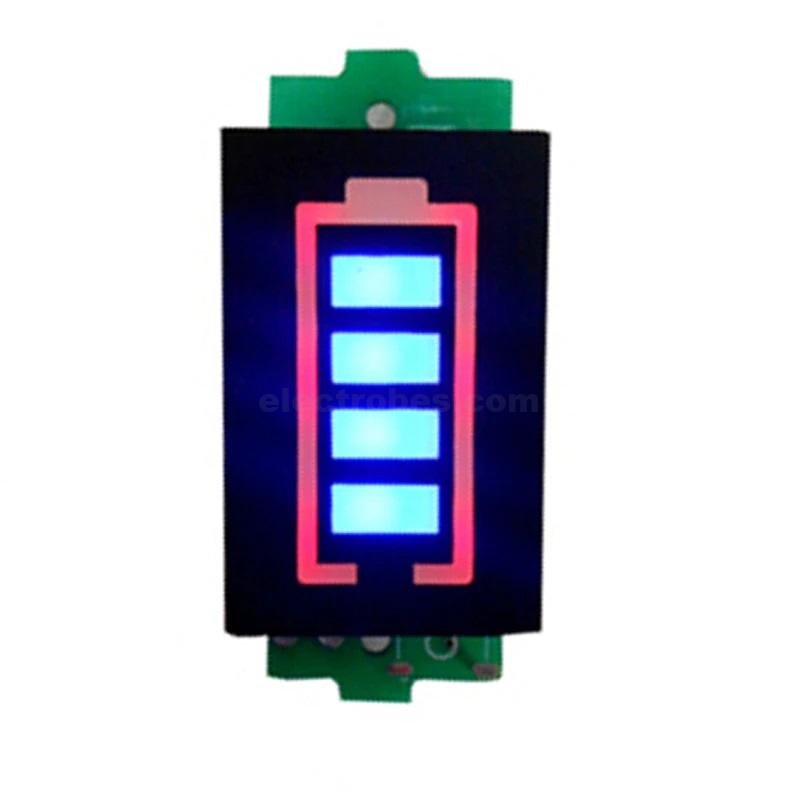

4.Digital Color: outline red, display block blue (when battery electricity quantity is full, it will be all on)



Display Range:

11.1v-12.6v

Battery Display:

  • When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity
    (note: N represents battery quantity)
  • When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
  • When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
  • When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity.
  • When battery voltage is less than N*3.3V,4 blocks display will be off; it represents battery
    is less than 3.3V,and you can charge the battery.

Package Includes:

1 x 3s lithium ion battery level indicator

  • Battery type electricity quantity display
  • Wide application fields: lithium battery
  • Using Method: connect display board positive and negative port with tested battery positive and negative port, digital tube will display real-time battery electricity quantity
  • Digital Color: Outline red, display block blue (when battery electricity quantity is full, it will be all on)
