3V-6V DC Mini Coin Vibration Motor Miniature Micro Vibrator
CompareIn stock (can be backordered)
₨ 100
In stock (can be backordered)

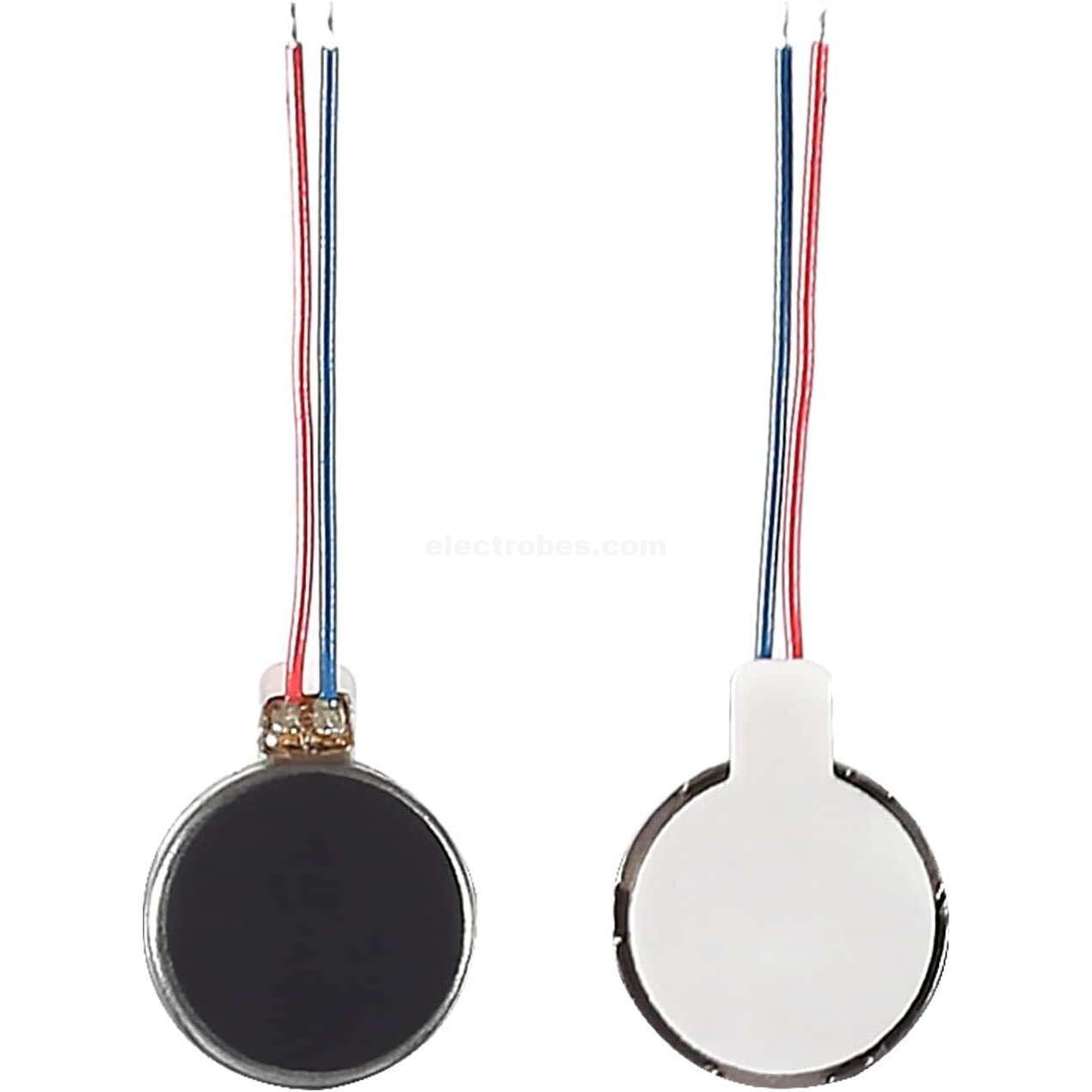

3V-6V DC Mini Coin Vibration Motor Miniature Micro Vibrator
Mini vibration motors also called small coin vibration motors, are compact and convenient to use, with no external moving parts. Used in handheld instruments haptic. RCD1027 Coin Vibration Motors – 10 mm x 2.7 mm, 3 V, coin vibration motor for lightweight wearable devices. Only 10 mm in diameter, It was designed for devices requiring vibration alerts or haptic feedback. Because a small coin vibration motor produces a relatively low vibrational force of 1.0 G, this motor is best suited for use in lightweight devices placed directly against the user’s skin. It may be driven by DC voltage.
Specifications:
- Operating Voltage: DC1.5-3.7V
- Rated Voltage: 3V
- Rated Current: 50mA
- RPM: 11000±2500rpm
- Dimension: 10mm(Diameter)x 2.7mm(Thickness)
- Working Temperature: -50°C~+60°C
- Storage Temperature: -30°C~+70°C
- Wire Connection: Red (Positive Pole), Blue (Negative Pole)
- Operating Voltage: DC1.5-3.7V
- Rated Voltage: 3V
- Rated Current: 50mA
- RPM: 11000±2500rpm
- Dimension: 10mm(Diameter)x 2.7mm(Thickness)
- Working Temperature: -50°C~+60°C
- Storage Temperature: -30°C~+70°C
- Wire Connection: Red (Positive Pole), Blue (Negative Pole)
