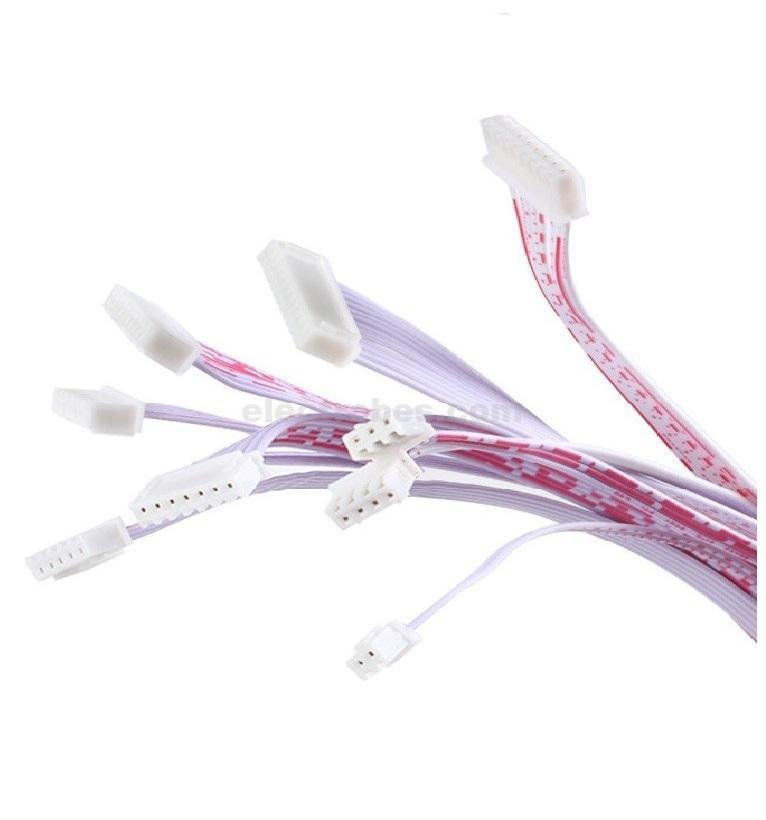

2.54mm 4-Pin Dual Female to Female Connector with 220mm Wire

The JST XH series’ dis-connectable, 2.5 mm (0.984”) pitch, crimp-style connector was developed based on the high reliability and versatility of their NH series connectors. The connector is very small with a mounting height of 9.8 mm. These wire-to-board connectors are typically used to bring power to a PC board. XH series connectors are available various positions (we carry up to 10 position). They fit wire sizes ranging from 22 to 30 AWG. The XH series’ current rating is 3A AC/DC (250 VAC/DC). All XH series connectors are compliant with RoHS standards.

Features:

• Current rating: 3A AC/DC (AWG #22)
• Temperature range: -25°C to 85°C (including temperature rise in applying electrical current)
• Contact resistance Initial value: 10 mΩ (max.)
• Contact resistance After environmental tests: 20 mΩ (max.)
• Insulation resistance: 1,000 MΩ (min.)
• Withstanding voltage: 1,000 VAC/minute
• Applicable wire: AWG #30 to #22
• Applicable PC board thickness: 1.6 mm
• Voltage rating: 250 VAC/DC

Applications:

RC batteries (Li-Po) for charging balance
AC power input for PCs and lab equipment
