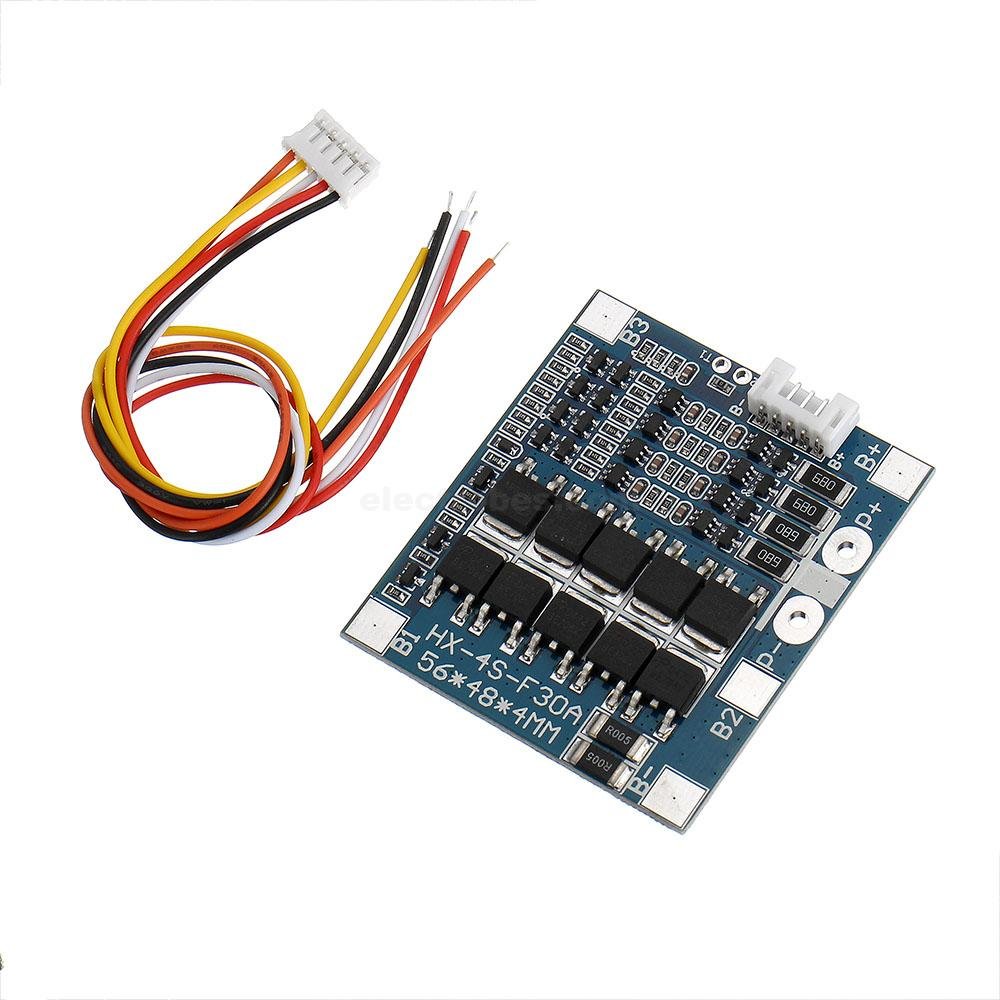

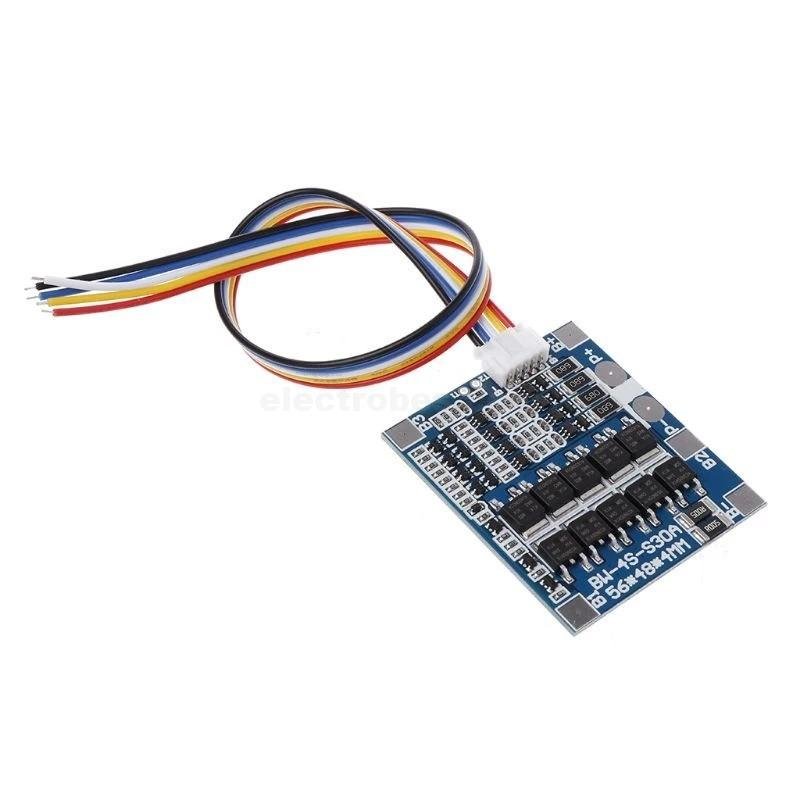

4S 30A LifePo4 Lithium Iron Phosphate Battery Balanced Charging BMS PCB Board
4S 30A 12.6V Cell 18650 LifePo4 Lithium Iron Phosphate Battery Charging BMS PCB Board with Protection Charging Module battery management system available in Pakistan
Out of stock
₨ 650
Out of stock
4S 30A LifePo4 Lithium Iron Phosphate Battery Balanced Charging BMS PCB Board with Protection
Specifications:
Discharge:
- Continuous Discharging Current: 30A(MAX)
- Instantaneous Discharge Current: 56A
- Charge:
- Charging Voltage: 14.8V
- Charging Current: 20A (MAX)
- Overcharge Protect:
- Over-charge Detect: 3.75±0.05V
- Protect Delay: 1300MS
- Over-charge Release: 3.60±0.05V
Balance:
- Detect Voltage: 3.60±0.05V
- Release Voltage: 3.59±0.05V
- Balance Current: 58mA
- Over-discharge Protect:
- Over-discharge Detect: 2.1±0.08V
- Over-discharge Detect delay: 145S
- Release Voltage: 2.3±0.1V
- Over-current Protect:
- Detect Voltage: 200mV
- Detect Delay: 20mS
- Current Detect: 56±10A
- Release Condition: Cut Load
- Inner Resistance: ≤20mΩ
- Self-Consumption:
- Working Current: ≤30uA
- Sleep Current (when Over-discharge): ≤20uA
- Working Temperature Range: -30+80°
- PCB Board Size: 56x47mm/2.2×1.85″
Note:
Package Includes:
- This plate is a 3.2V 4 string lithium and iron phosphate battery protection plate
- High current protection board, DC 30 A, with balance circuit
- Board comes with cable
- Charging Voltage: 14.8V
- Charging current: 20A (MAX)
