4×4 16 Key Matrix Membrane Switch Keypad Keyboard
4×4 16 Key Matrix Membrane Switch Keypad Keyboard with Ultra-thin design and adhesive backing provides easy integration to any project. Buy online in Pakistan.
Availability:
Out of stock
₨ 150
Out of stock

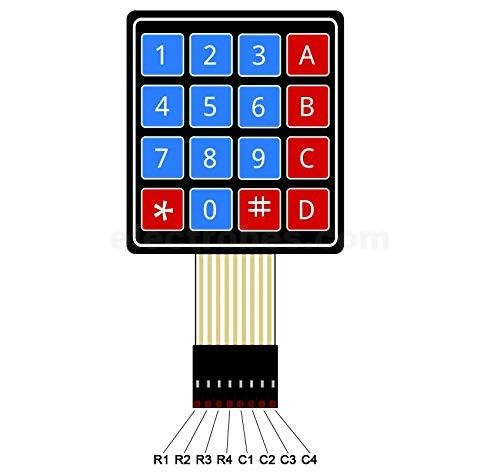

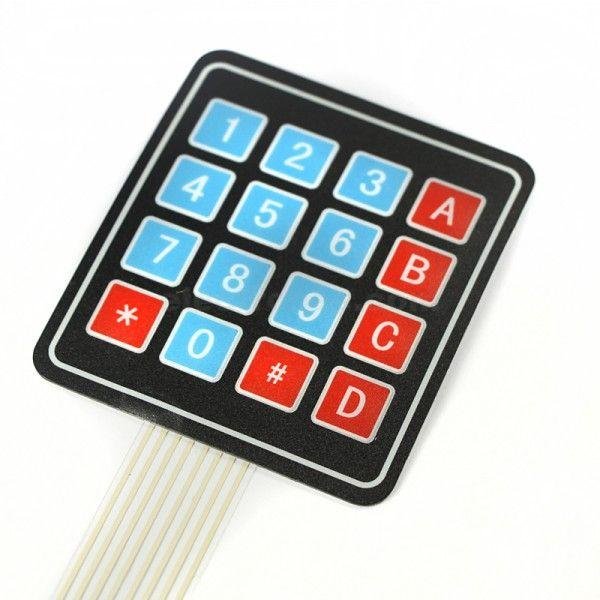

4×4 16 Key Matrix Membrane Switch Keypad Keyboard
Features
- 4×4 bendable membrane keypad
- Arranged in telephone-line 3×4 + 4 extra keys, 16 keys in total
- Weight: 10 grams
- Keypad dimensions: 77mm x 77mm x 1mm (3″ x 3″ x 0.035″)
- Length of cable + connector: 85mm
- 8-pin 0.1″ pitch connector
Packing List
- 1 x 4×4 Matrix Membrane Keypad
Resources
- How to Set Up a Keypad on An Arduino by Krishna Pattabiraman, Circuit Basics – Very detailed example of 3×4 and 4×4 keypad interface to Arduino UNO, include Arduino example code and explanation
- Keypad library by Mark Stanley, Alexander Brevig
- Product Name : Membrane Switch
- Matrix (Columns x Rows):4 x 4
- Output Type:Matrix
- Voltage : DC 12V
- Current : 30mA
- Contact Resistance : >=100 Ohm
- Force : 250-350g
- Contact Bounce : >1s
- Pad Size : 76 x 69 x 0.8mm/3” x 2.7” x 0.03”(L*W*T)
- Cbale Length : 72mm/2.8”
- Connector Pitch : 2.54mm/0.1”
- Material : Plastic
- Weight : 9g
- Package Content : 1 x Membrane Switch
- Mounting Type:Panel Mount, Front
- Number of Keys:16
