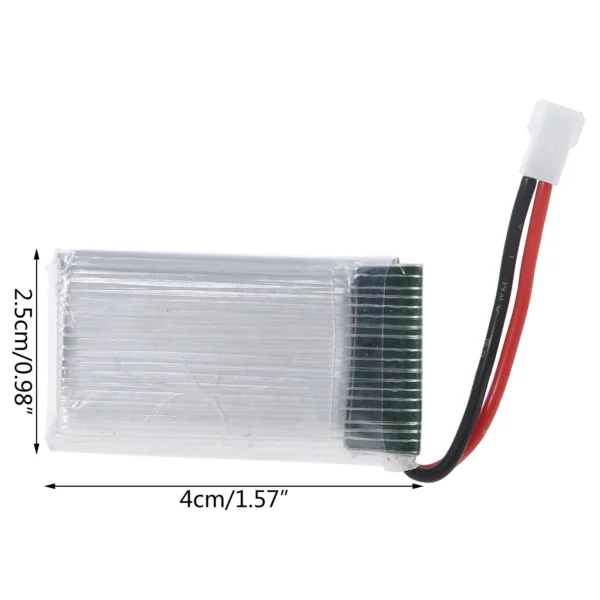

500mAh 3.7V 1S Rechargeable lithium-ion battery li ion Lithium Polymer li-ion Lipo battery

This is 1S 3.7 – 4.2V 500mAh Lipo Battery for RC mini drone, mini quadcopter & multicopter, esp8266, esp32, esp32 cam etc.

Compare
Availability:

In stock

 450

In stock

500mAh 3.7V 1S Rechargeable lithium-polymer battery Lithium Ion Polymer li-ion Lipo battery

Features:

500mAh 3.7V 1S Rechargeable lithium-ion battery li ion Lithium Polymer li-ion Lipo battery for RC Mini Drone

  • Voltage: DC 3.7V;
  • Capacity: 500mAh
  • Material: Lithium Polymer;
  • Net Weight: 50g
  • Size: 90 x 19 x 2.3mm (L*W*T)
  • Connector Type: JST-connector
  • Package Content: 1 x Lithium Polymer Battery

Attention:

  • Do not remove batteries at will.
  • Do not place the battery deposited in the high-temperature environment by more than 45 or fire, otherwise, it may cause the battery to explode;
  • Do not make a damp battery or put it in the water;
  • Don’t exert an external force for the battery or the fall.
  • Do not put the battery and keys, COINS, foreign body readjust, in case of short circuit

Package contents:

  • 1x 500mAh 3.7V lipo battery

Caution:

  • Don’t over-charge, or over-discharge batteries
  • Don’t put it beside the high temperature condition
  • Don’t throw it into fire
  • Don’t throw it into water



Battery type

Lithium polymer /

Lipo battery
Model
901923
Nominal voltage/ Capacity

3.7V /500mAh

Max charge voltage
4.25V
General charge current
0.2C /Adjustable
Fast charge current
1C /Adjustable
General discharge current
0.2C /Adjustable
Max continuous discharge current
1C/Adjustable
Discharge peak current
2C/Adjustable
Cycle life
500+ times at 0.2C 80%DOD
Dimension of cell only

Thickness*Width*Length

:2.3*17*70mm
Dimension of battery with PCM

Thickness*Width*Length

:2.3*17*70mm
Weight
10g
