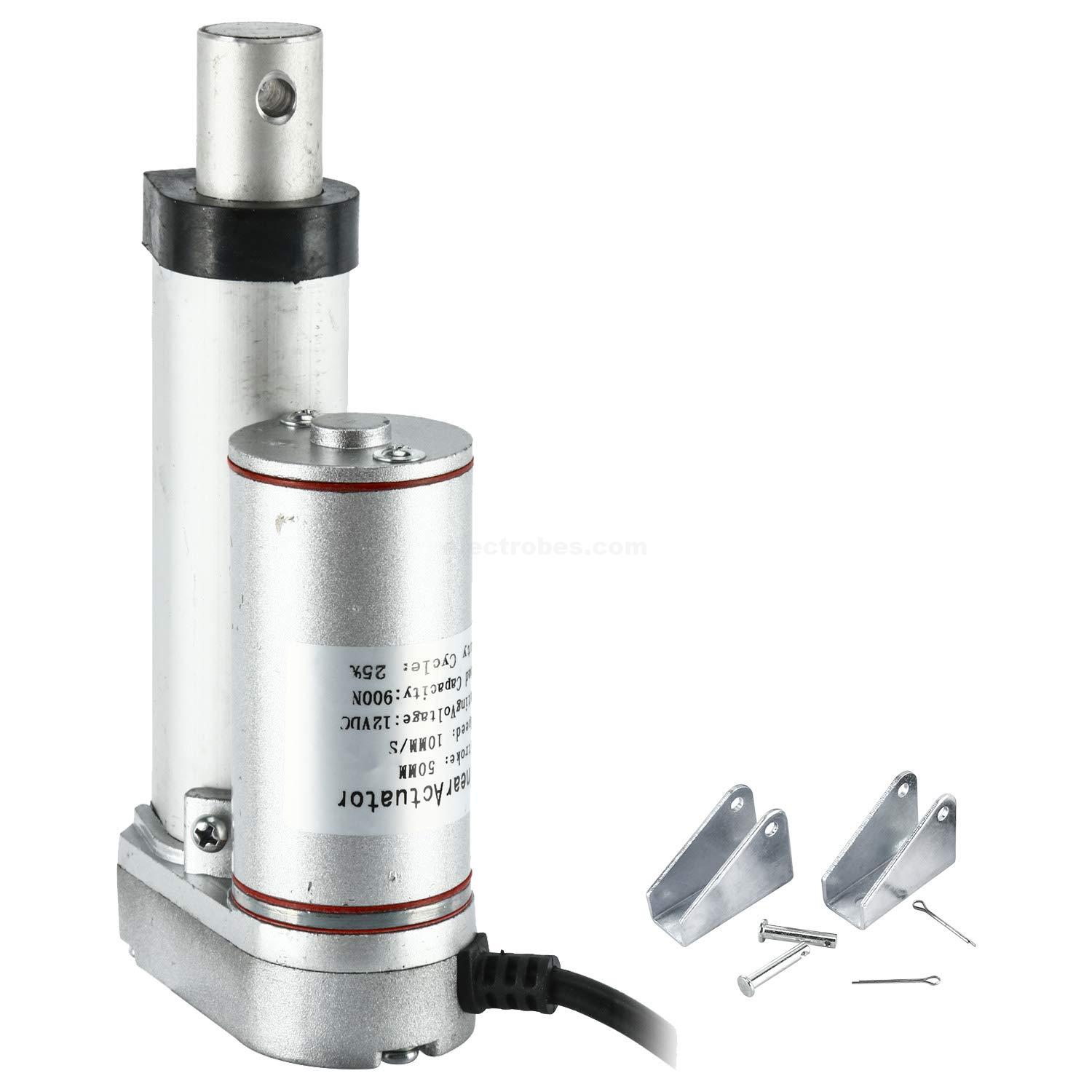

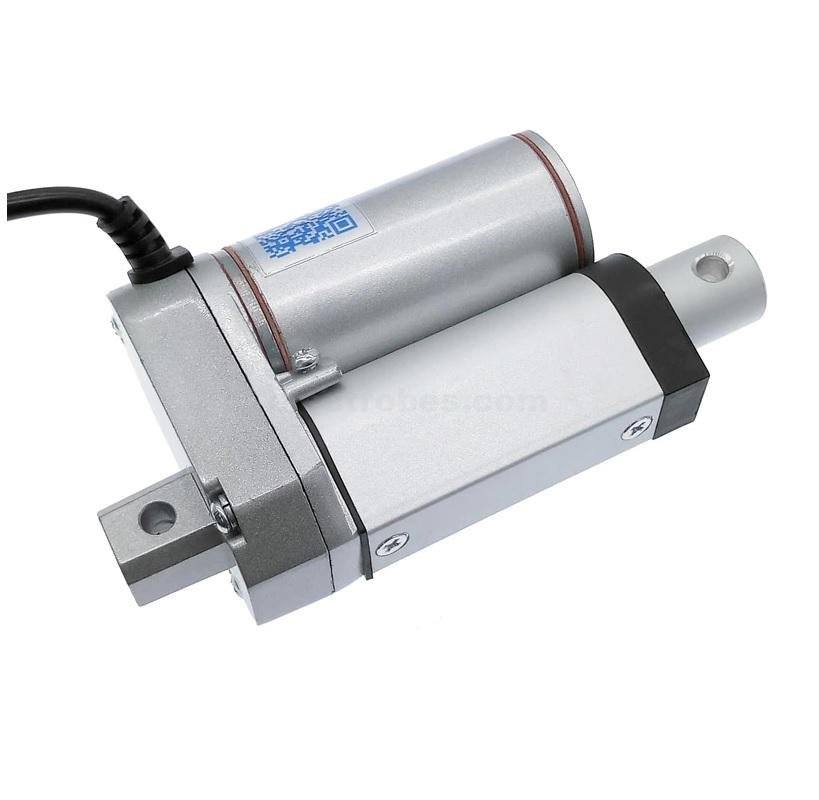

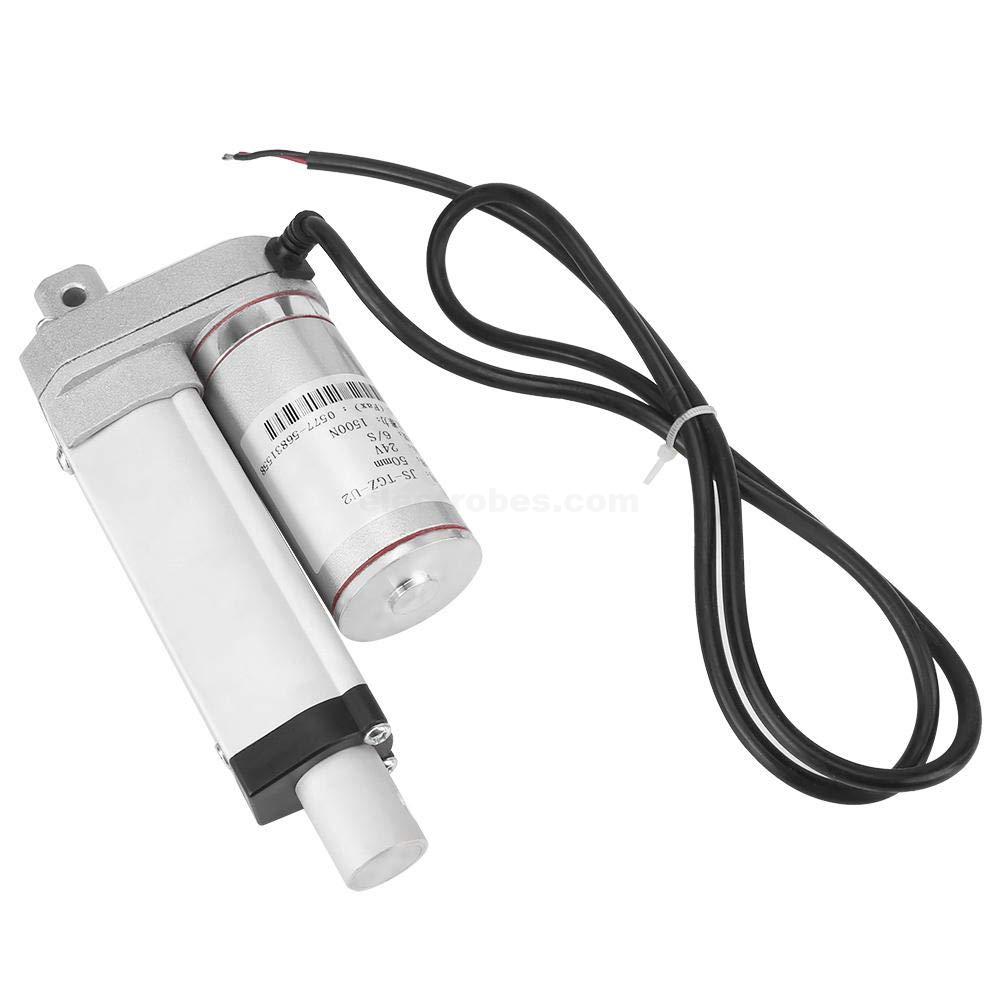

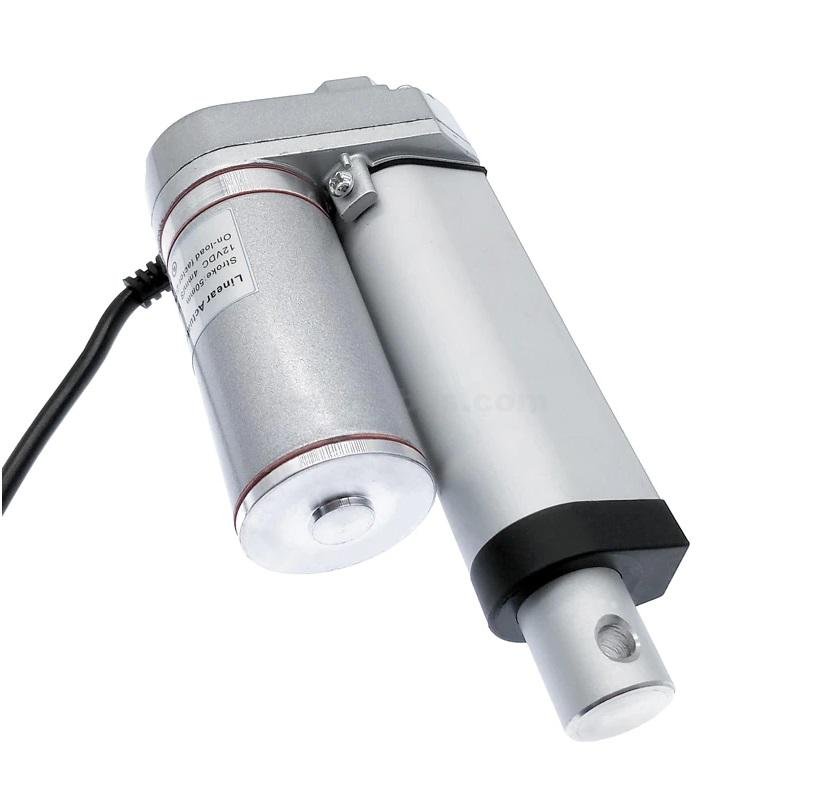

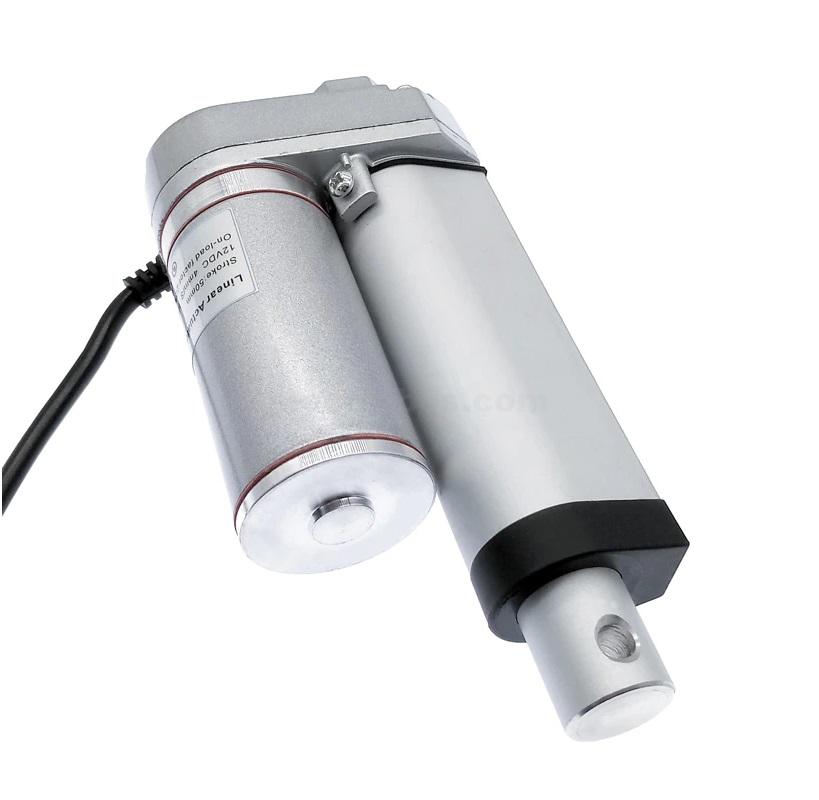

50mm 12V DC High Torque Linear Actuator Motor

Miniature electric linear actuator is used in applications that require precise linear movement such as a window opener or an adjustable car driver. Unlike conventional electric motors that move in a circular motion, linear actuators operate in a straight line. As a result, an electric linear motion is capable of pushing and pulling along with the ability to slide, tilt, lift and drop making them a versatile and reliable device.

This 12V DC linear actuator features a variety of load capabilities, stroke lengths and speeds. It also feature a limit switch that prevents the device from burning or stalling the motor once maximum stroke length is achieved, ensuring a longer lasting device with minimal maintenance.

The Linear Actuator Motor features a compact design that is suitable for various applications that require limited installation space. Available in 50mm, 100mm, 200mm and 300mm stroke.

Applications:

• Autos
• Solar tracking system
• Agricultural machinery
• The wedding system
• Industrial electric lifting system
• Chair for medical use
  • Electric wheelchair, Massage Chair, dental chair
• The medical electric bed, surgical bed, traction bed
• Electric equipment such as
  • Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc

Features:

• Reliable performance
• Stable running
• The same characteristics of push and pull
• Good environment adaptability
• Heavy Duty and Long Lasting Motor
• High-quality aluminum alloy material
• High-performance motor
• Built-in high quality limit switch

Specifications:

• Rated Voltage: DC 12V
• No-load current<1A
• Max load current=3A
• Stroke Length: 200mm
• Load capacity: 500N
• Speed: 10mm/s
• Duty cycle: 20%
• Material: Aluminum alloy
• Torque: 90KG 10mm/Sec

Package Included:

• 1 x Linear Actuator 50mm
