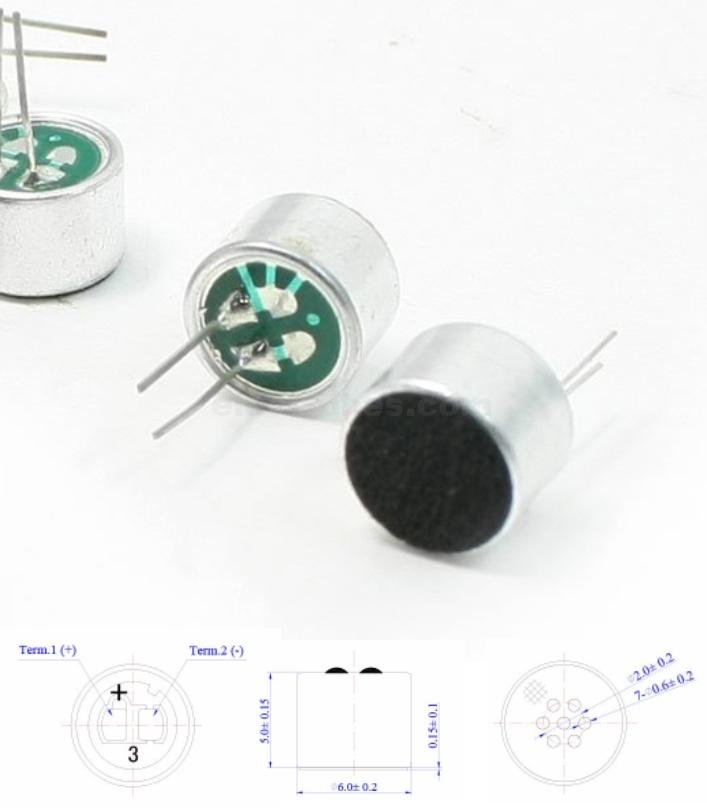

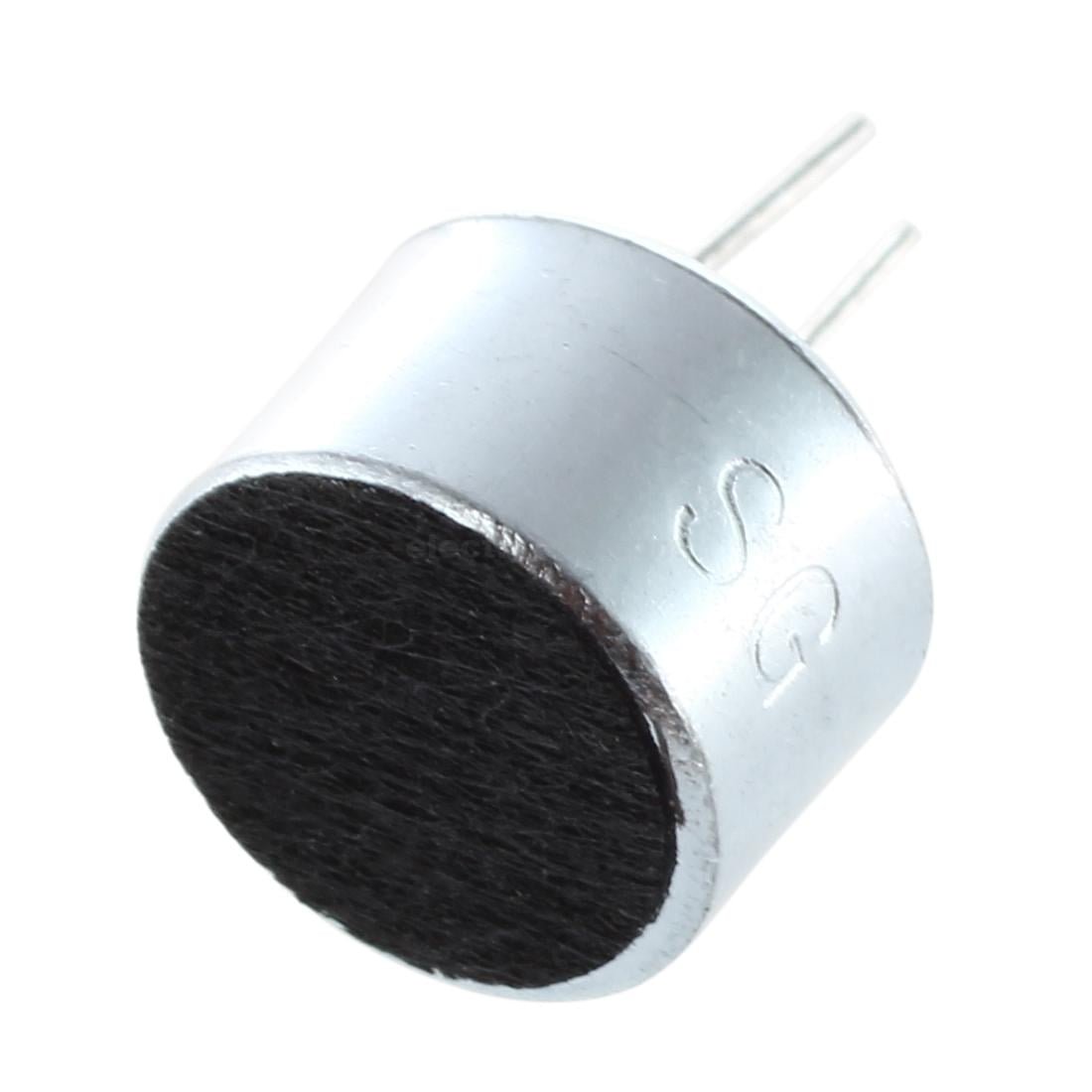

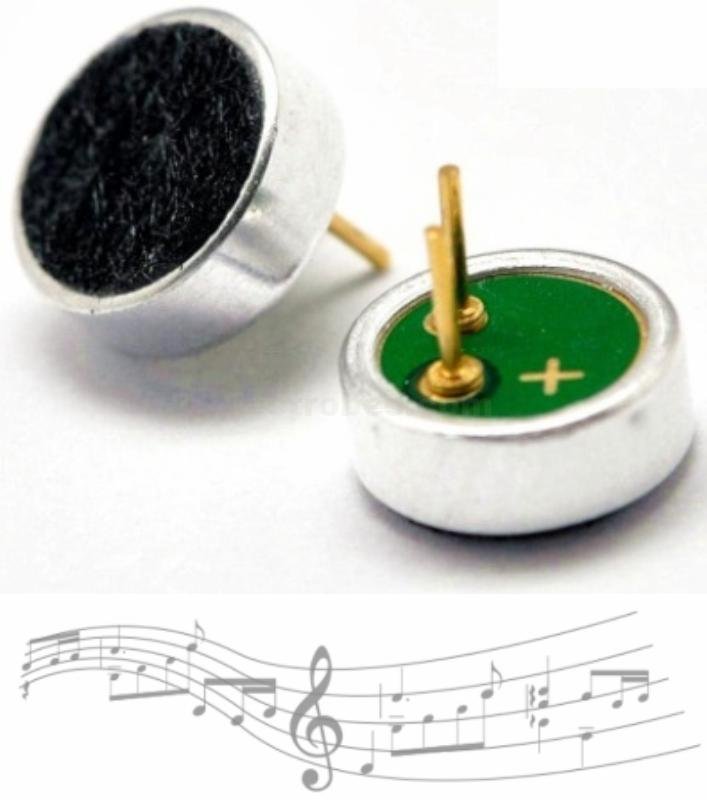

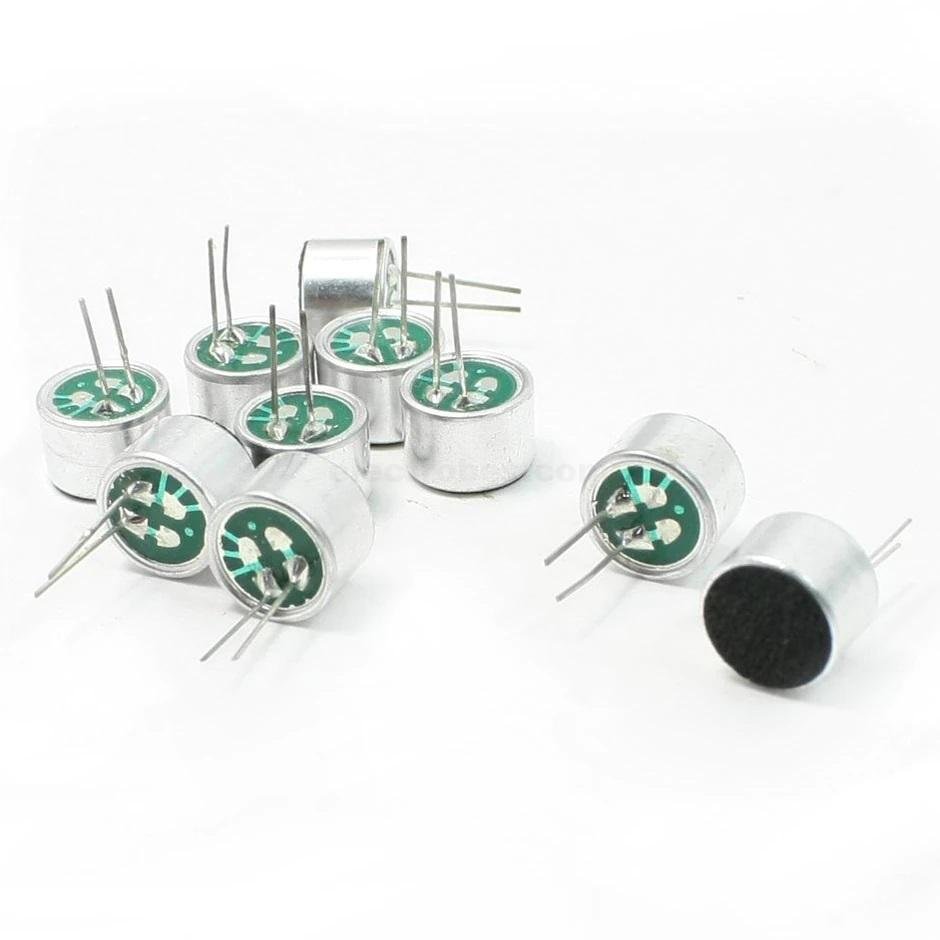

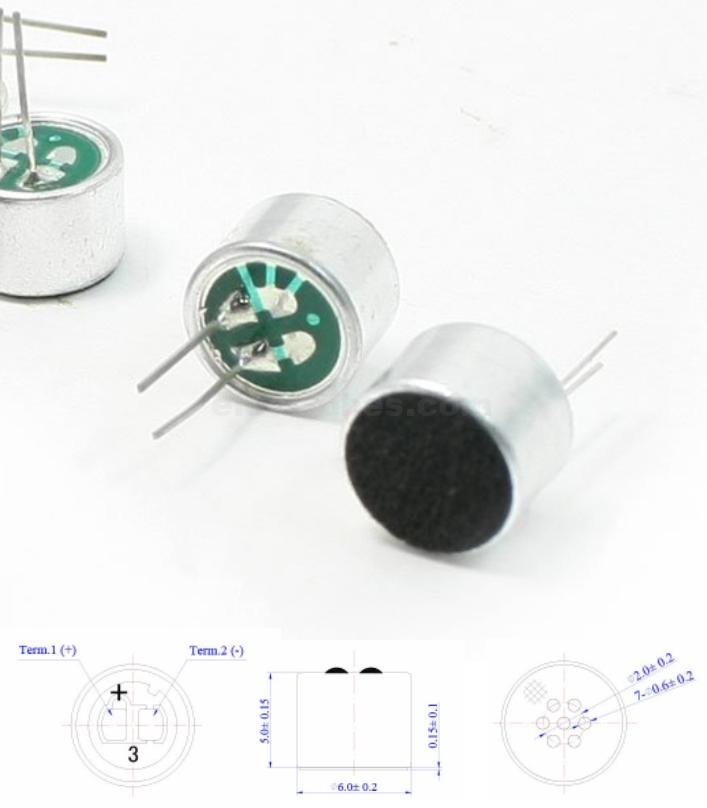

6x5mm HQ Microphone Condenser Transducer Mic
Features:
- Model No.:EM-6022P
- Temperature: -2 to 70C
- Humidity: 35 to 85 RH
- Pressure: 86 to 106Kpa
- Environmental Noise: 36dB (Maximum)
- Operation Voltage:1 to 10VDC
Characteristics:
- Standard Operation Voltage: 3VDC
- Impedance: 2.2k (Maximum)
- Current Consumption: 0.5mA (Maximum)
- Sensitivity: -27dB +-2dB(0dB=1V/Pa,1KHz)
- Directivity: Omni-directional
- S/N Ratio: 40dB(Minimum)
Package Includes:
1 x 6*5mm Microphone Condenser Mic
- Total Length : 15mm/0.59″
- Main Color : Silver Tone, Black, Green
- Net Weight : 8g
- Material: metal
- Directivity: Omnidirectional
- Sensitivity: -32dB ~ -44dB(f=1KHz, 1Pa 0dB=1V/Pa )
- Standard operating voltage: 3V
- Output impedance:= 2.2 KO
- Max operating voltage: 10V
- Sensitivity reduction: -3 dB
- Max. Current consumption: 0.5 mA
- Signal to noise ration: 58dB
- Dimension: 6.0 x 5.0 mm
