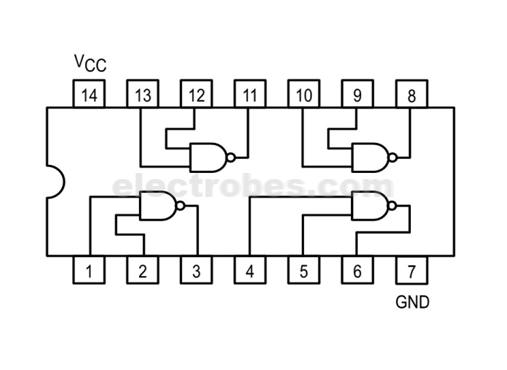

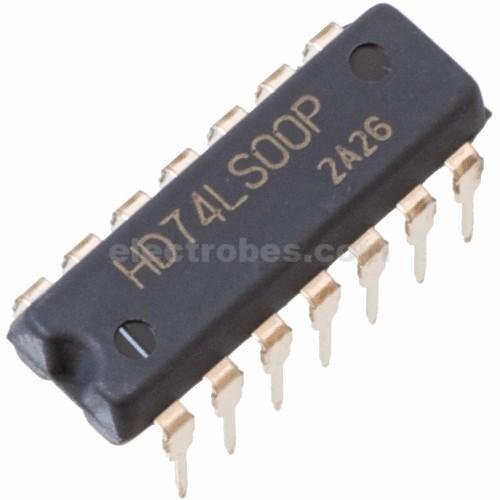

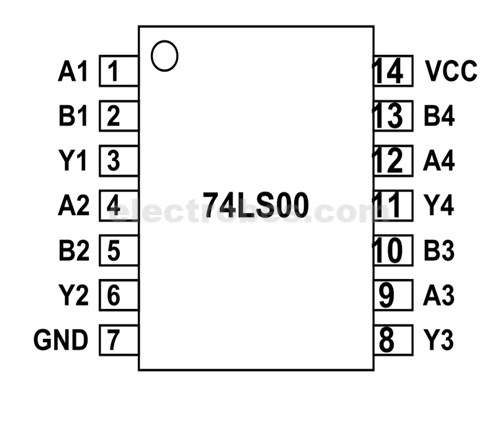

74LS00 Quad 2-input NAND Gate IC
- Operating voltage range: +4.75 to +5.25V.
- Maximum supply voltage: 7V.
- Maximum current allowed to draw through each gate output: 8 mA.
- TTL outputs.
- Maximum ESD: 3.5 KV.
- Typical Rise Time: 15 ns.
- Typical Fall Time: 15 ns.
- Operating temperature: 0°C to 75°C
Availability:
In stock
₨ 40
In stock
