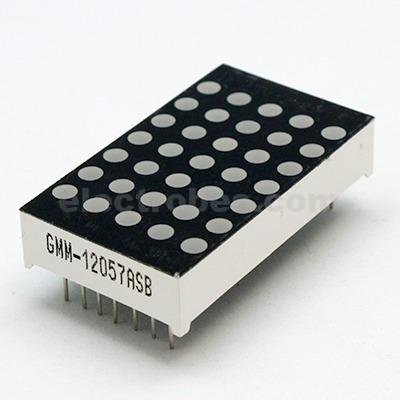

7×5 LED Dot Matrix 40x50mm
LED MATRIX MODULES are available in different modules and each module will have different pin configuration. Here we have shown the pin configuration of 1388A LED matrix module. Different modules may have different pinout configuration but they have same functioning pins.
In stock
₨ 80
In stock
Single Digit Alphanumeric Display, Kingbright 18mm (0.7in)
5 ´ 7 dot matrix LED displays with X-Y select.
X-Y stackable
Dot size 2mm
H: 17.78mm W: 12.7mm D: 6.4mm
Pin spacing: 2.54mm Row spacing: 7.62mm
Segments are white diffused providing excellent on/off contrast
Temperature range: -40 to +85°C
Alphanumeric LED Displays
| Display Type | Dot Matrix |
| LED Colours | Green |
| Dominant Wavelength | 568 nm |
| Character Width | 12.5mm |
| Character Height | 17.2mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Height | 17.8mm |
| External Width | 12.7mm |
| External Depth | 6.4mm |
| External Dimensions | 17.8 x 12.7 x 6.4mm |
| Luminous Intensity | 12 mcd |
| Colour of Face | Grey |
| Power Dissipation | 62.5mW |
| Forward Current | 25mA |
| Series | TA07 |
| Dot Matrix Format | 5 x 7 |
| Minimum Operating Temperature | -40°C |
| Dots High | 7 |
| Dots Wide | 5 |
| Dot Matrix Dimensions | 7 x 5 |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Forward Voltage | 2.2 V |
- Forward Voltage for EACH SEGMENT or LED turning ON: 1.5V-2.0V (2.0V being absolute maximum forward voltage)
- EACH SEGMENT or LED Forward Current during ON: 10mA – 15mA (Typically 10mA, 15mA being absolute maximum forward current)
- EACH SEGMENT or LED Reverse Voltage Maximum: 5V
- Maximum operating temperature: – 25°C to + 60°
