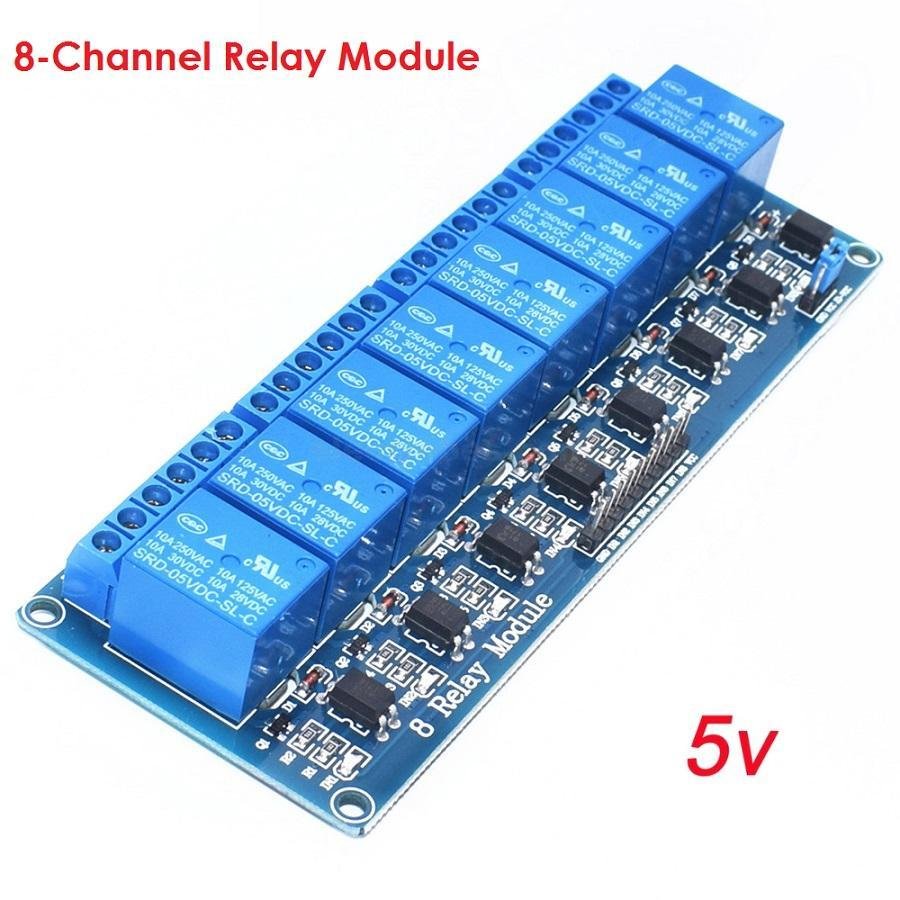

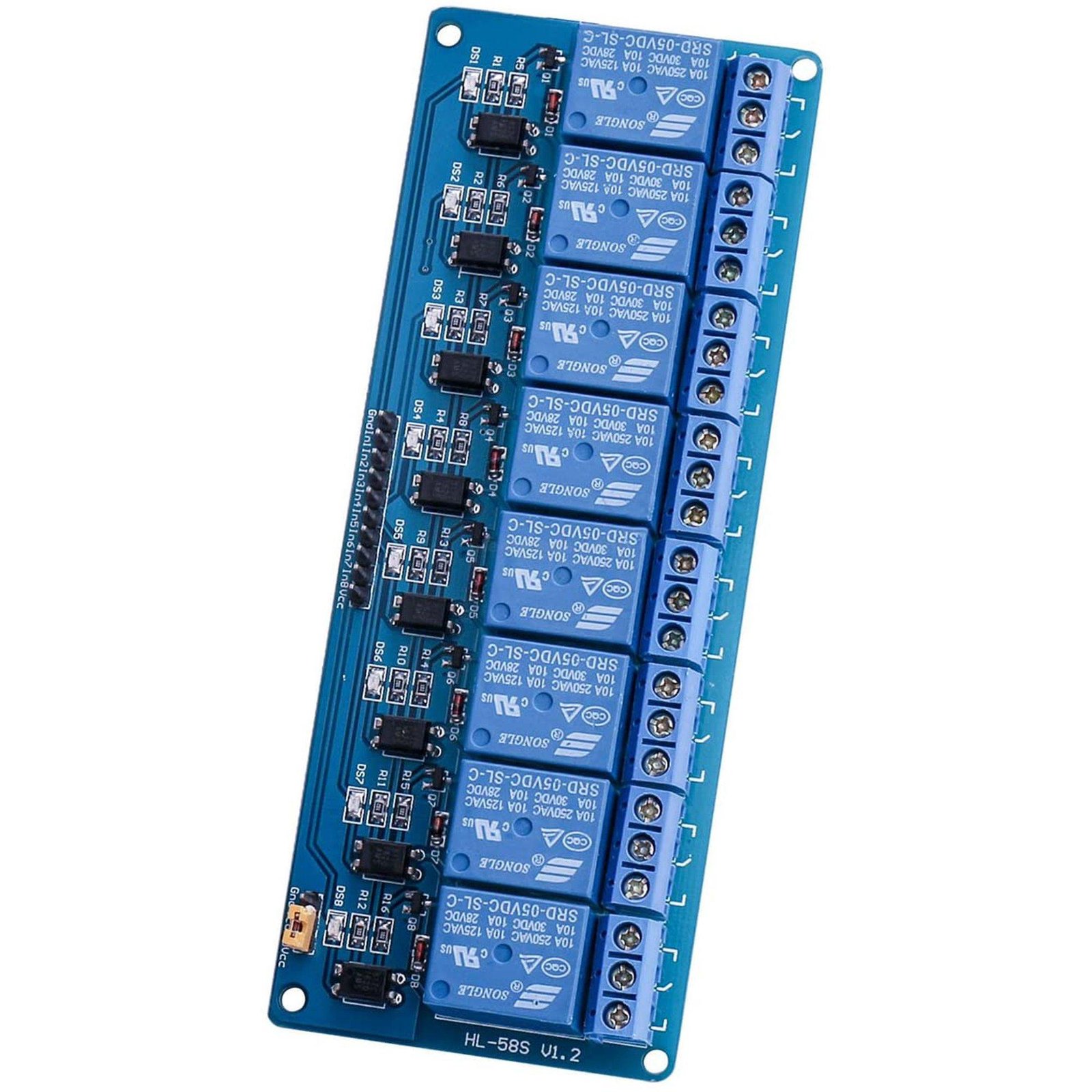

5V 8 Channel Relay Module 240VAC 10A

5V 8 Channel Relay Module 240VAC 10A a digital switch to control much higher voltages and currents than your normal Arduino boards does. Buy online in Pakistan.

Compare
Availability:

Out of stock

 780

Out of stock

Stay updated!

A Relay is a digital switch to control much higher voltages and currents than your normal Arduino boards does. When inputs a logic voltage, the relay will switch to allow current to flow or cutoff, depending on your wiring. A Relay usually consists of a coil, 1 common terminal, 1 normally closed terminal and one normally open terminal. When the coil is energized, the common terminal and the normally open terminal will have continuity.

The eight-channel relay module contains eight 5V relays and the associated switching and isolating components, which makes interfacing with a microcontroller or sensor easy with minimum components and connections. Each relay on the board has the same circuit, and the input ground is common to all eight channels.

Features:

  • 5V 8 Channel Relay Module
  • 8-channel Relay Board
  • Using high-current relay
  • AC250V 10A DC30V 10A
  • Contact some independent wiring
  • safe and reliable
  • Standard interface
  • can be extended in a variety of development board
  • With fixed screw holes for easy installation

Eight-Channel Relay Module Pinout

Pin Number

Pin Name

Description

1

GND

Ground reference for the module

2

IN1

Input to activate relay 1

3

IN2

Input to activate relay 2

4

IN3

Input to activate relay 3

5

IN4

Input to activate relay 4

6

IN5

Input to activate relay 5

7

IN6

Input to activate relay 6

8

IN7

Input to activate relay 7

9

IN8

Input to activate relay 8

10

VCC

Power supply for the relay module

11

GND

Ground reference for the module

12

VCC

Power supply selection jumper

13

RY-VCC

Alternate power pin for the relay module



Specifications of Eight-Channel Relay Module:

  • Supply voltage – 3.75V to 6V
  • Trigger current – 5mA
  • Current when relay is active – ~70mA (single), ~600mA (all eight)
  • Relay maximum contact voltage – 250VAC, 30VDC
  • Relay maximum current – 10A

5V 8 Channel Relay Module 240VAC 10A a digital switch to control much higher voltages and currents than your normal Arduino boards does. Buy online in Pakistan at best price online in islamabad rawalpindi lahore karachi multan sukkur skardu peshawar taxila wah gujranwala faisalabad hyderabad quetta pakistan 5V 8 Channel Relay Module 240VAC 10A a digital switch to control much higher voltages and currents than your normal Arduino boards does. Buy online in Pakistan at best price online in islamabad rawalpindi lahore karachi multan sukkur skardu peshawar taxila wah gujranwala faisalabad hyderabad quetta pakistan

  • Supply voltage – 3.75V to 6V
  • Trigger current – 5mA
  • Current when relay is active – ~70mA (single), ~600mA (all eight)
  • Relay maximum contact voltage – 250VAC, 30VDC
  • Relay maximum current – 10A
