8×2 LCD Display 0802 Character Display – Yellow Green

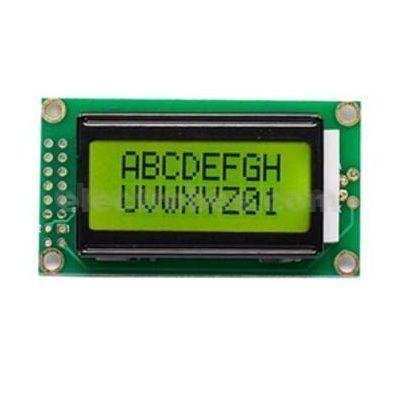

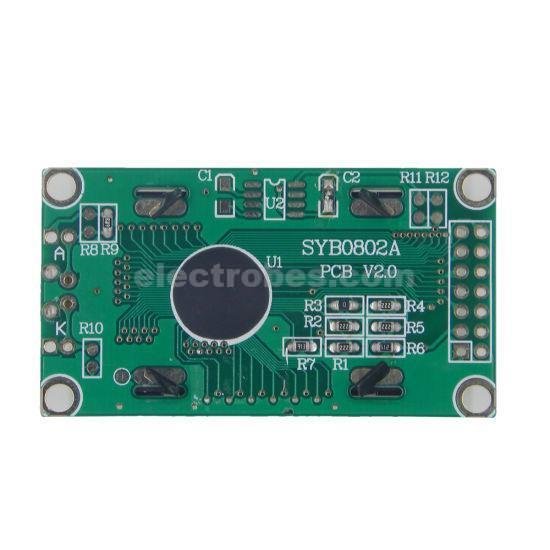

WH0802A1 is an 8 character by 2 lines 8×2 character LCD display. This 8×2 LCD module is available in various LCD panel colors including gray, yellow/green and blue LCD options. 0802 LCD module is built in with ST7066 controller (or equivalent). WH0802A1 model has different interfaces available, it’s default 6800 4/8-bit parallel 6800 interface, also it’s optional SPI and I2C by using RW1063 IC.
In stock
₨ 350 ₨ 450
In stock
Pin Configuration:
| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VDD | Power supply for logic |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/ Instruction select signal |
| 5 | R/W | Read/Write select signal |
| 6 | E | Enable signal |
| 7 | DB0 | Data bus line |
| 8 | DB1 | Data bus line |
| 9 | DB2 | Data bus line |
| 10 | DB3 | Data bus line |
| 11 | DB4 | Data bus line |
| 12 | DB5 | Data bus line |
| 13 | DB6 | Data bus line |
| 14 | DB7 | Data bus line |
| 15 | A | Power supply for B/L + |
| 16 | K | Power supply for B/L – |
- Operating Voltage: 5V / 3.3V
- 8 char. x 2 lines; 0802A;
- Outline size : 40.0 x 36.0×12.0 mm;
- Viewing area: 30.5 x 14mm
- Active area: 27.1 x 9.9mm
- Dot size: 0.55 x 0.55mm
- Dot pitch: 0.6 x 0.6mm
- Character size: 2.95 × 4.75 ;
- Character pitch : 3.45 x 5.15mm
- Storage temperature: -20…70°C
- Controller: SPLC780D
- Backlight: Yellow Green LED
