AlgoLaser RR2 Rotary Roller for Laser Engraver – 360° Adjustable Y-Axis Rotary
- [Wide Compatibility] Compatible with Lightburn, LaserGRBL, and AlgoLaser APP. No software setup is required, as the linear speed of the roller surface matches the original Y-axis speed.
- [Broad Engraver Compatibility] Designed to work with most laser engraving machines that use a GRBL controller. Simply plug it in and start engraving—no additional drivers or accessories are needed.

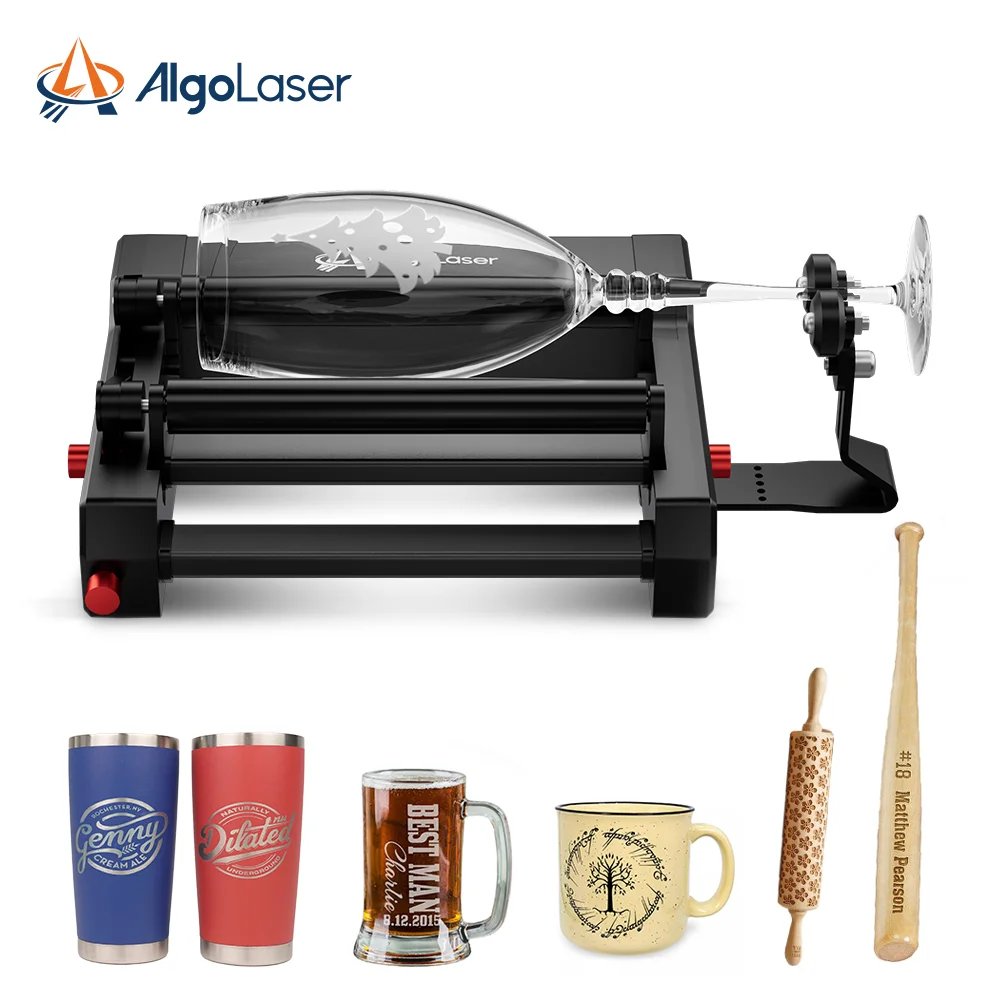

- [360° Rotary Engraving] The rotary roller module is suitable for cylindrical or small-diameter objects such as logs, cups, bottles, tubes, bowls, guitars, drums, cans, and pens for engraving or cutting.
- [Adjustable Diameter] The rotary engraving axis expands the original engraving area with a diameter adjustable in 7 steps, accommodating engraving diameters up to 150mm for various angles.
- [Higher Precision Engraving] The RR2 laser Y-axis rotary roller is equipped with a precision 42 hybrid stepper motor, ensuring optimal projects without missing any details.
Availability:
In stock
₨ 28,000
In stock
Algolaser Laser Engraver Rotary Roller – Y-axis Rotary Roller for Laser Engraver – 360° Adjustable Rotary Roller for Cylindrical Objects Tumblers, Bottle with for Alpha/DIY KIT Laser Engraver

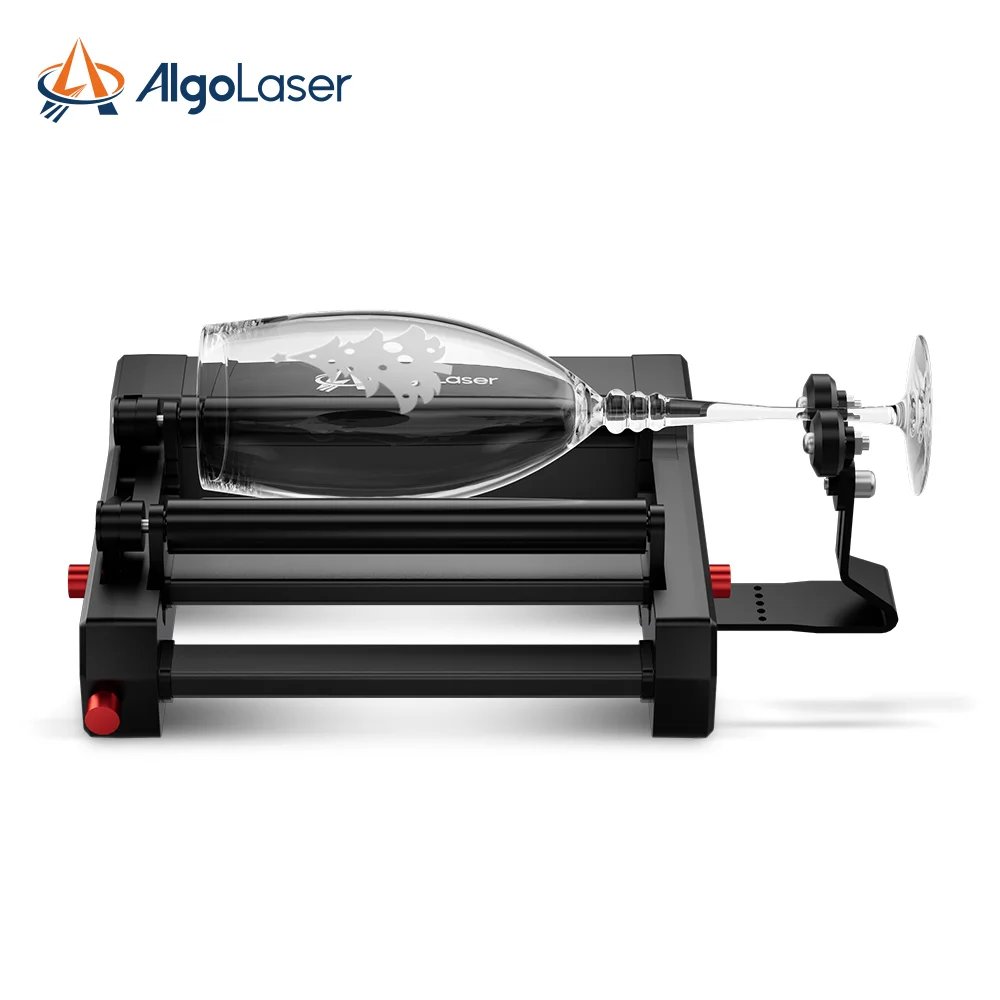

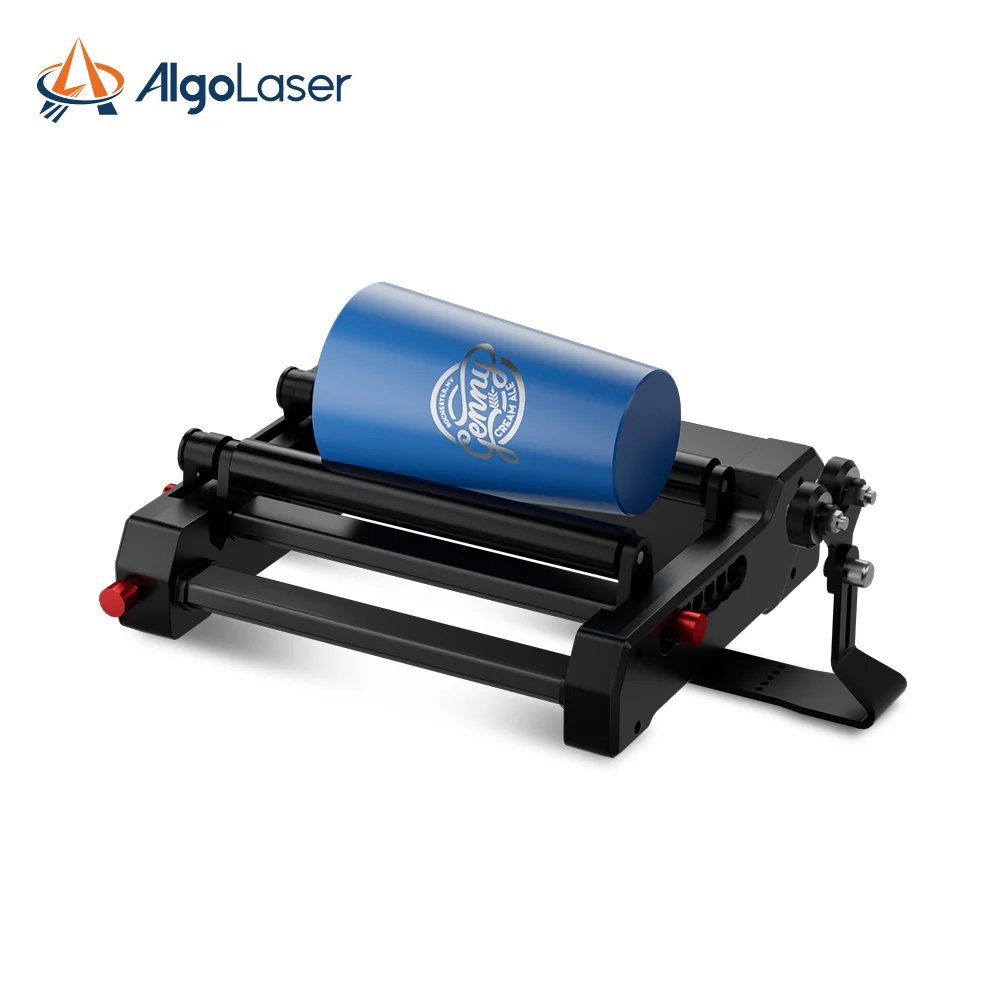

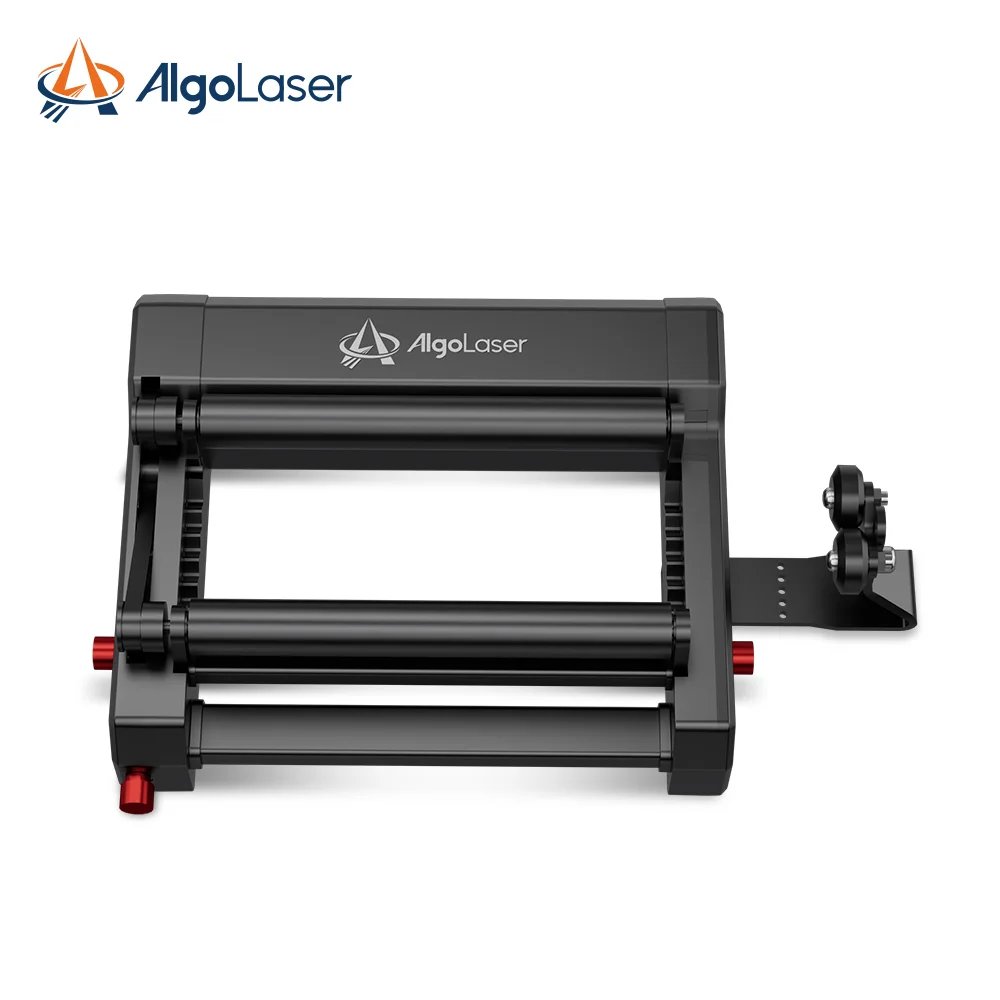

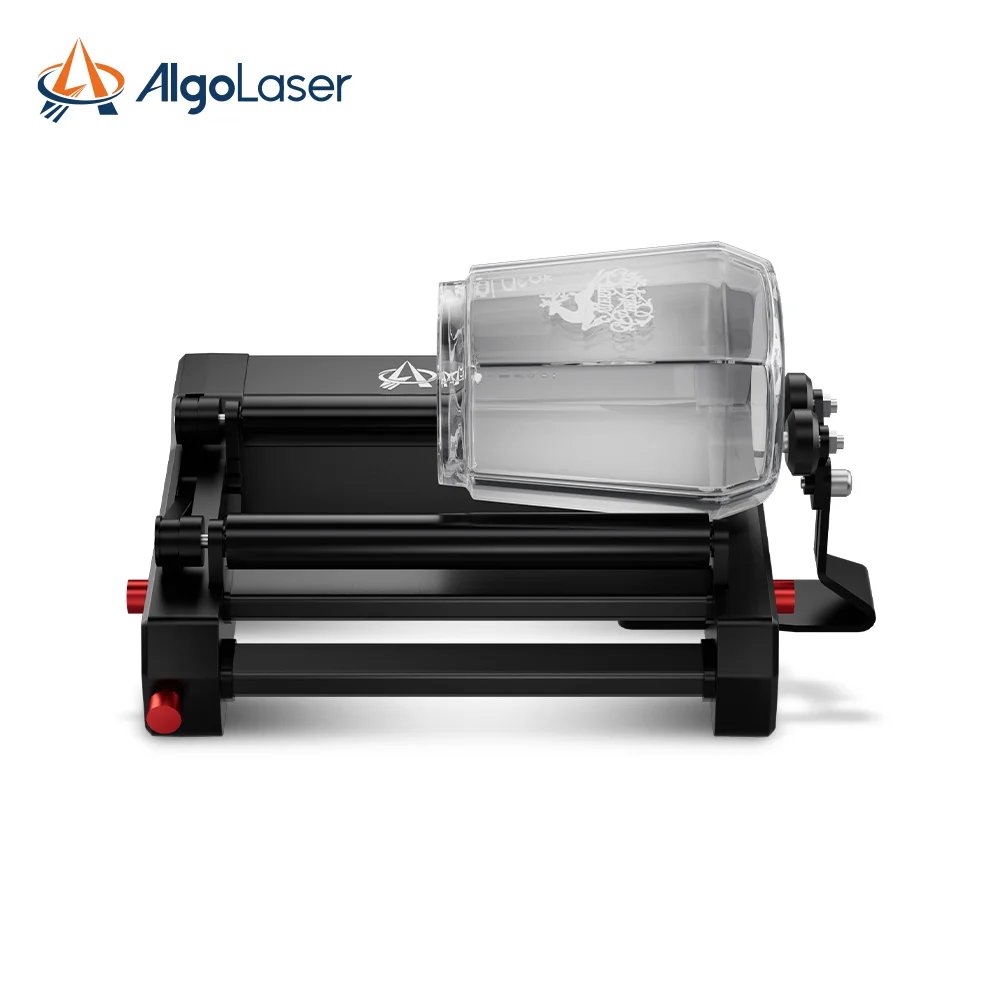

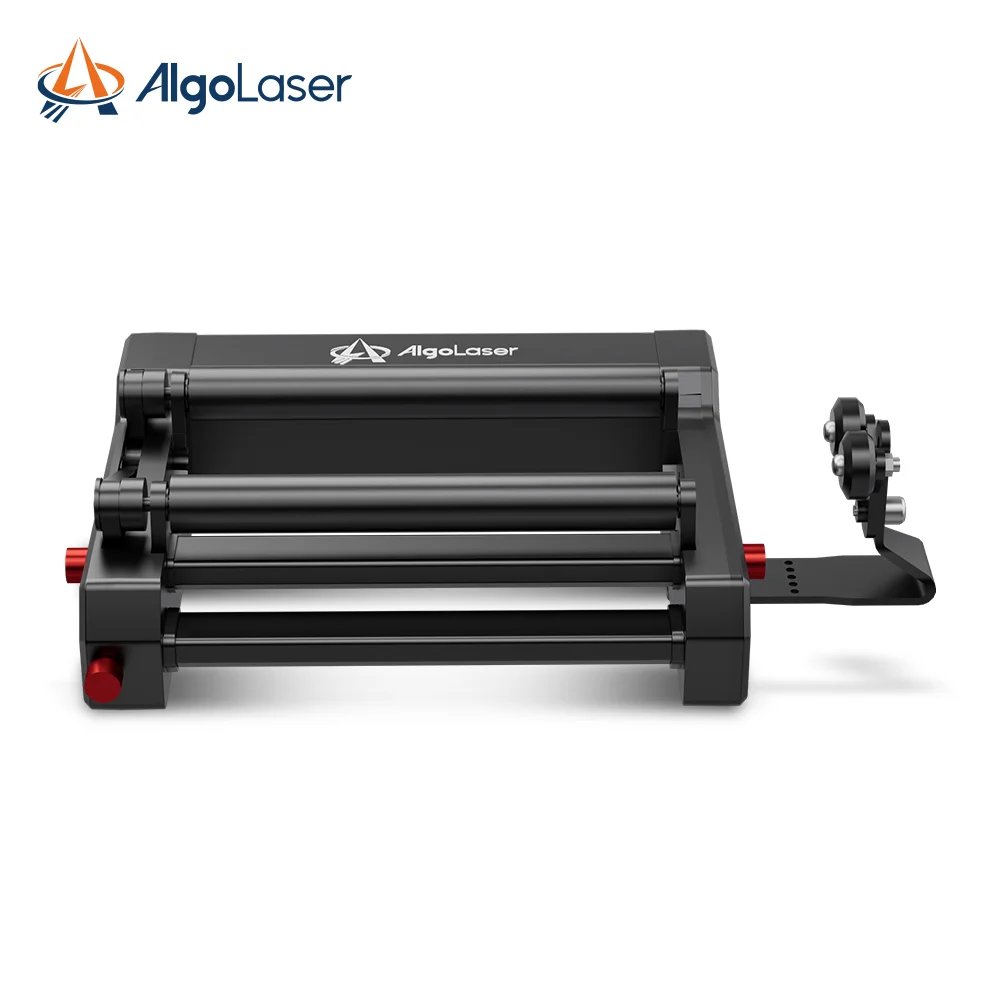

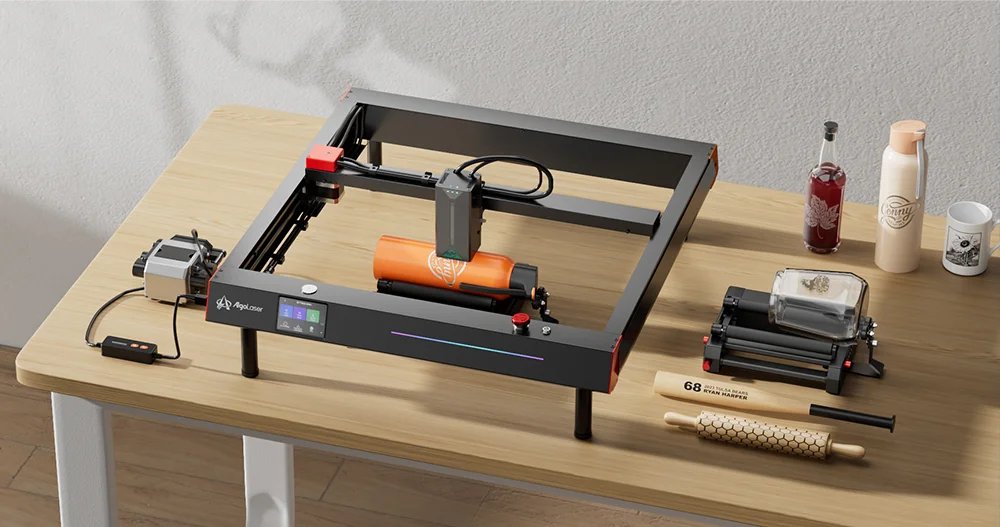

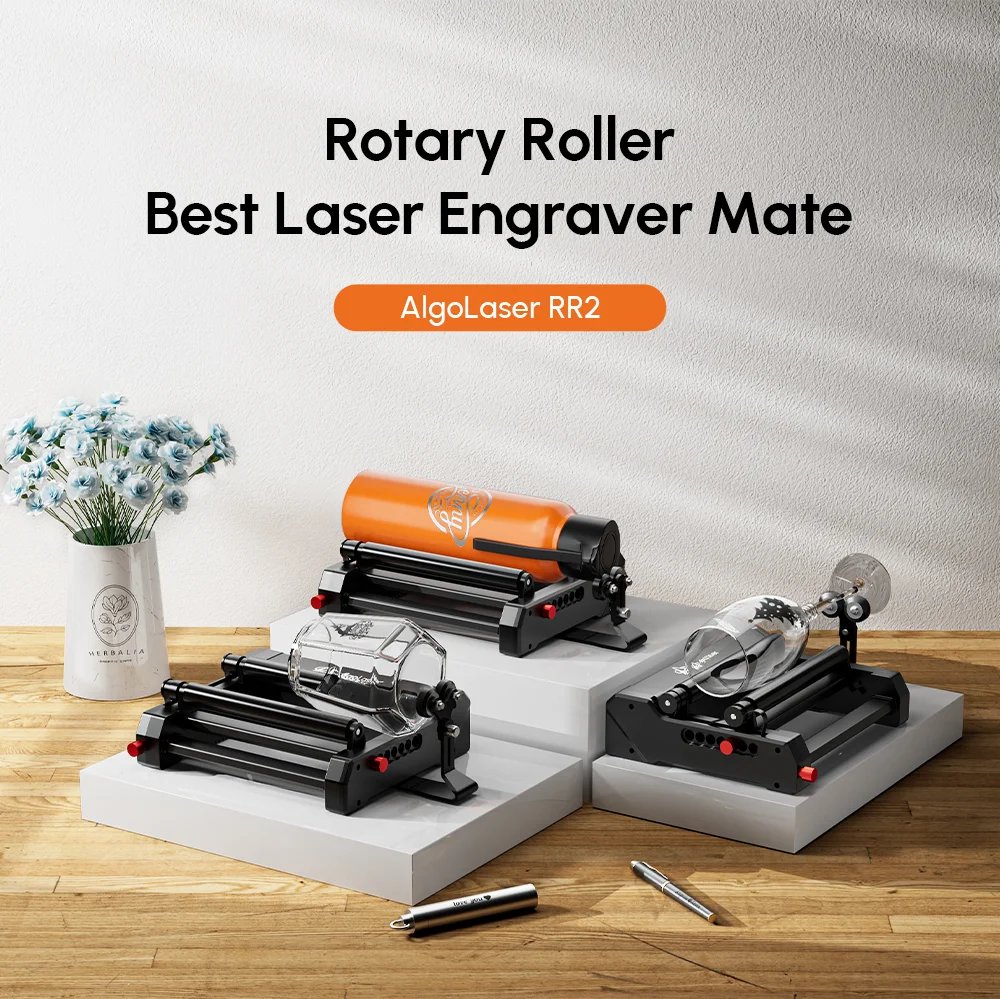

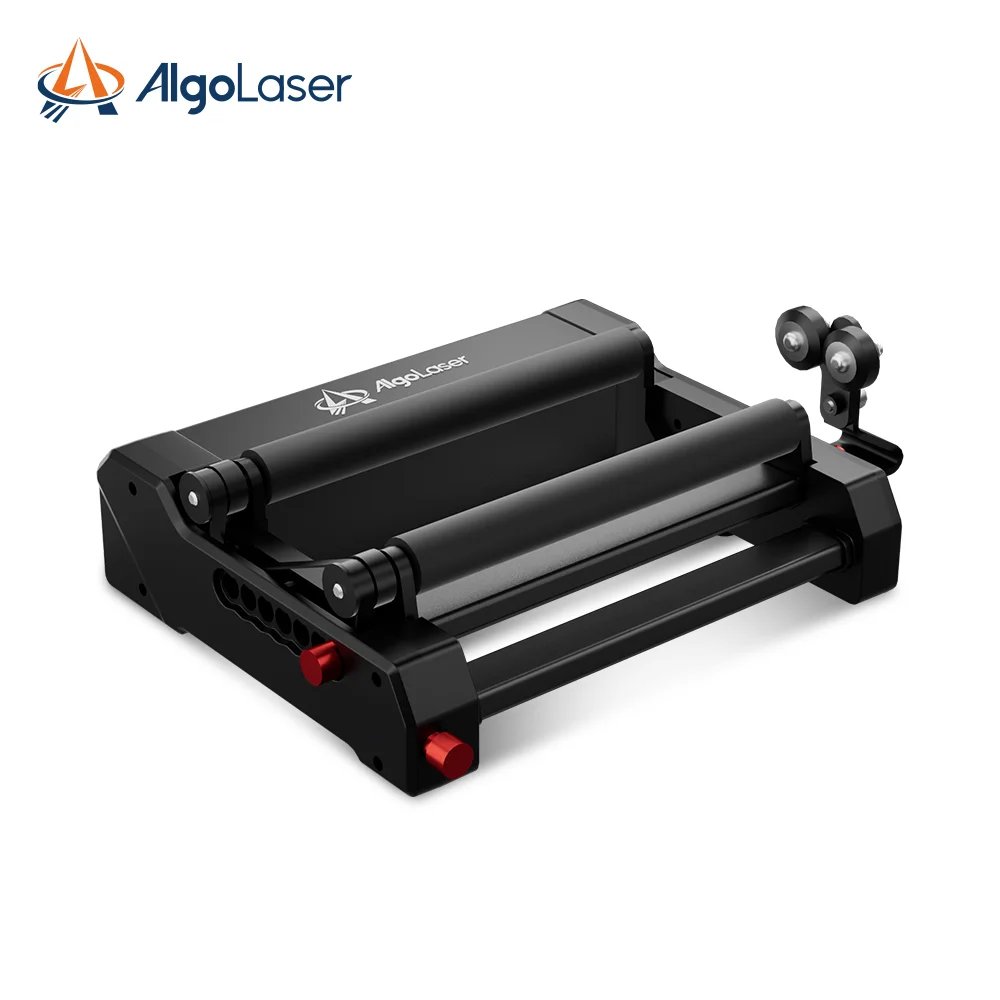

The AlgoLaser Rotary Roller (RR2) is a versatile, second-generation Y-axis rotary attachment designed to expand the capabilities of laser engraving machines to include cylindrical objects. It is engineered for high-precision, 360-degree engraving on items such as tumblers, cups, bottles, and pens.
Key Features:

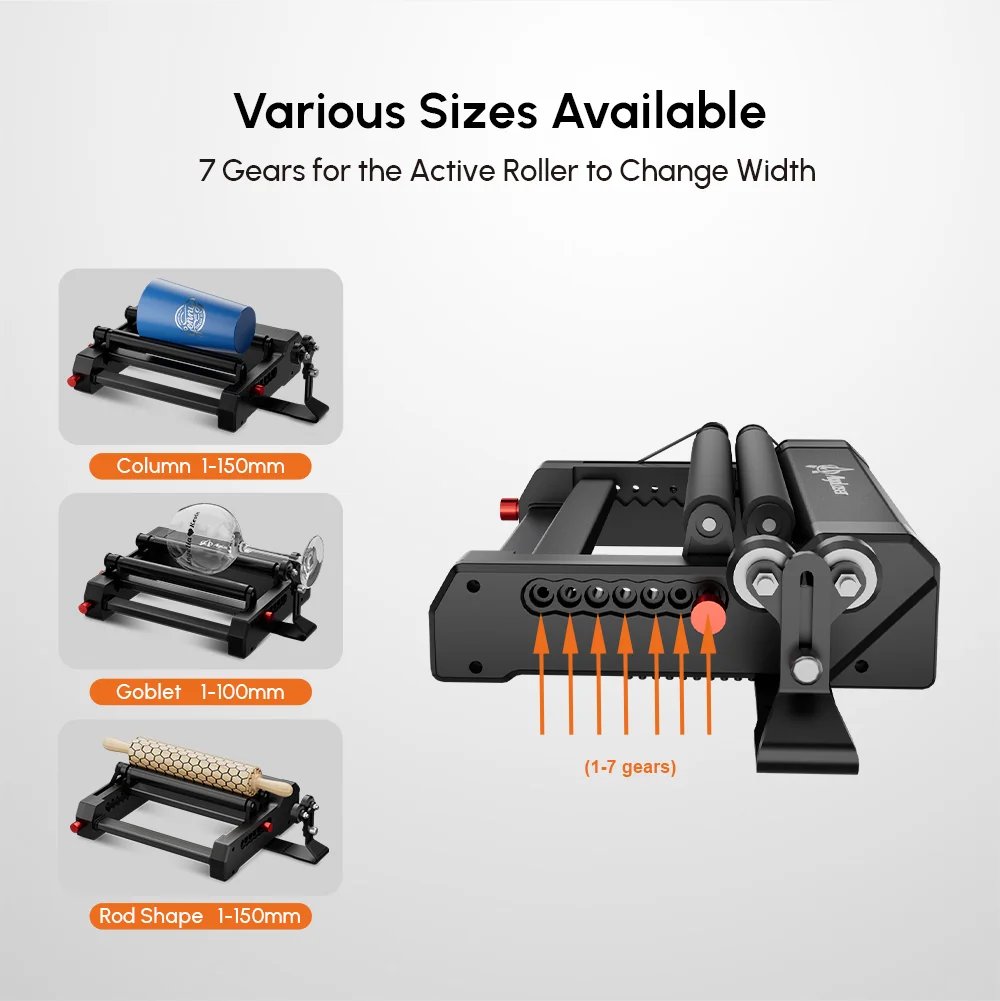

- 7-Gear Adjustable Width: Allows the roller width to be adjusted to accommodate cylindrical objects of varying sizes, from small pens to large bottles (1-150mm diameter).

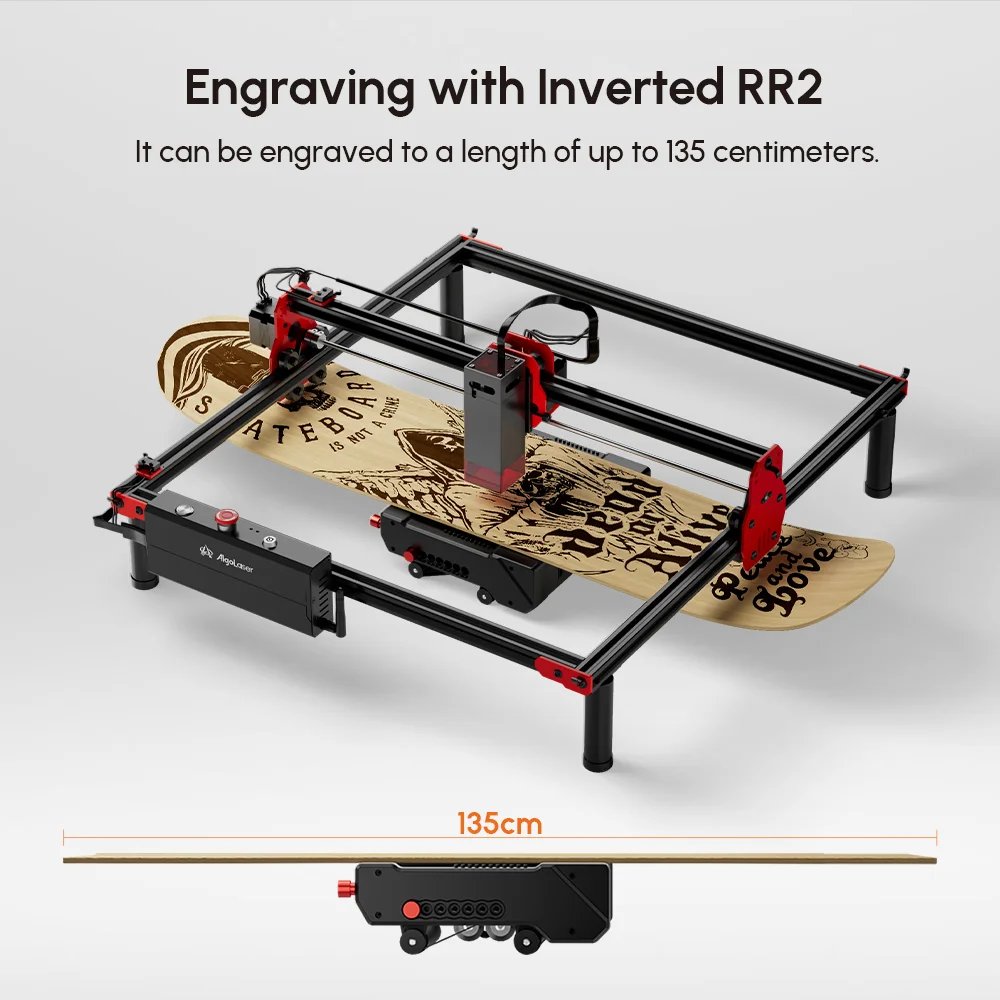

- Inverted Operation: The RR2 can be used in an inverted position to engrave on objects up to 135 cm in length, allowing for extended project sizes.

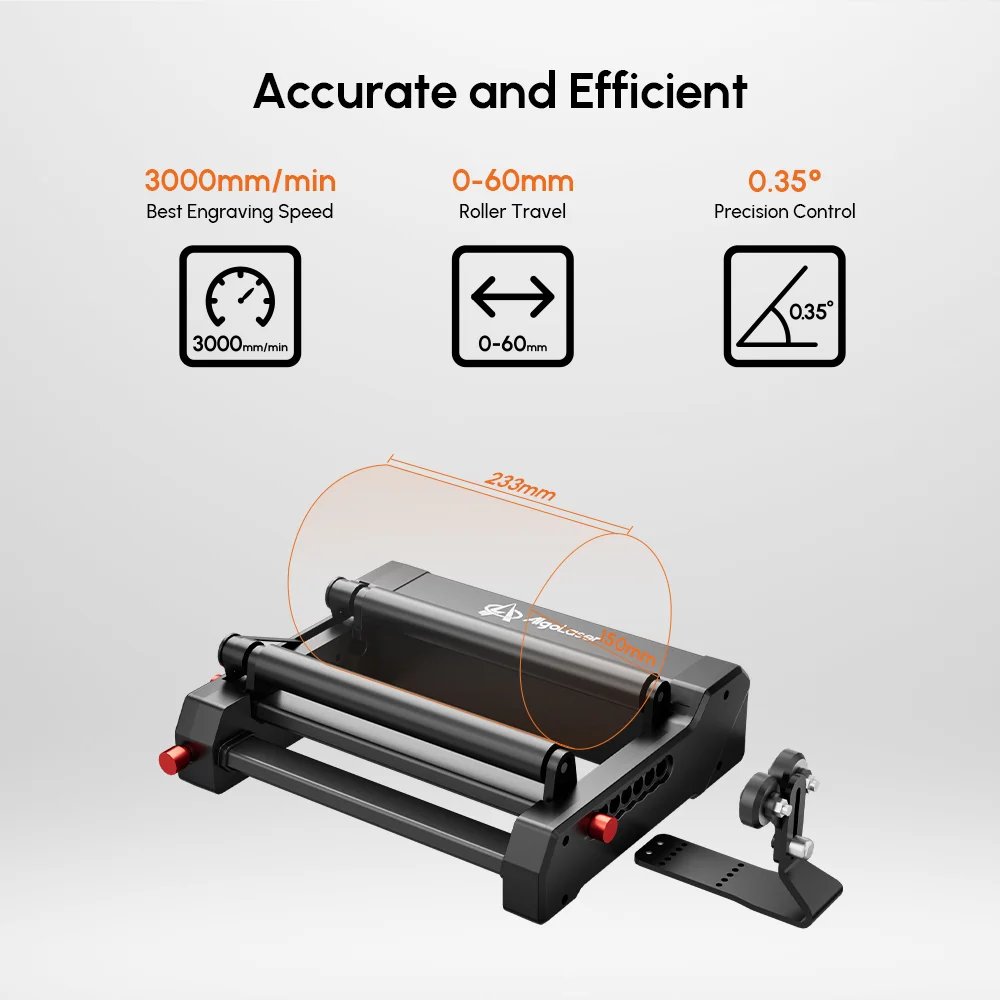

- High-Precision & Stability: Features silicone-covered rollers for improved grip and a 0.35° precision control system to ensure detailed engraving.
- Wide Compatibility: Works with 95% of engraving machines on the market, including AlgoLaser, SCULPFUN, Ortur, NEJE, and Atomstack.

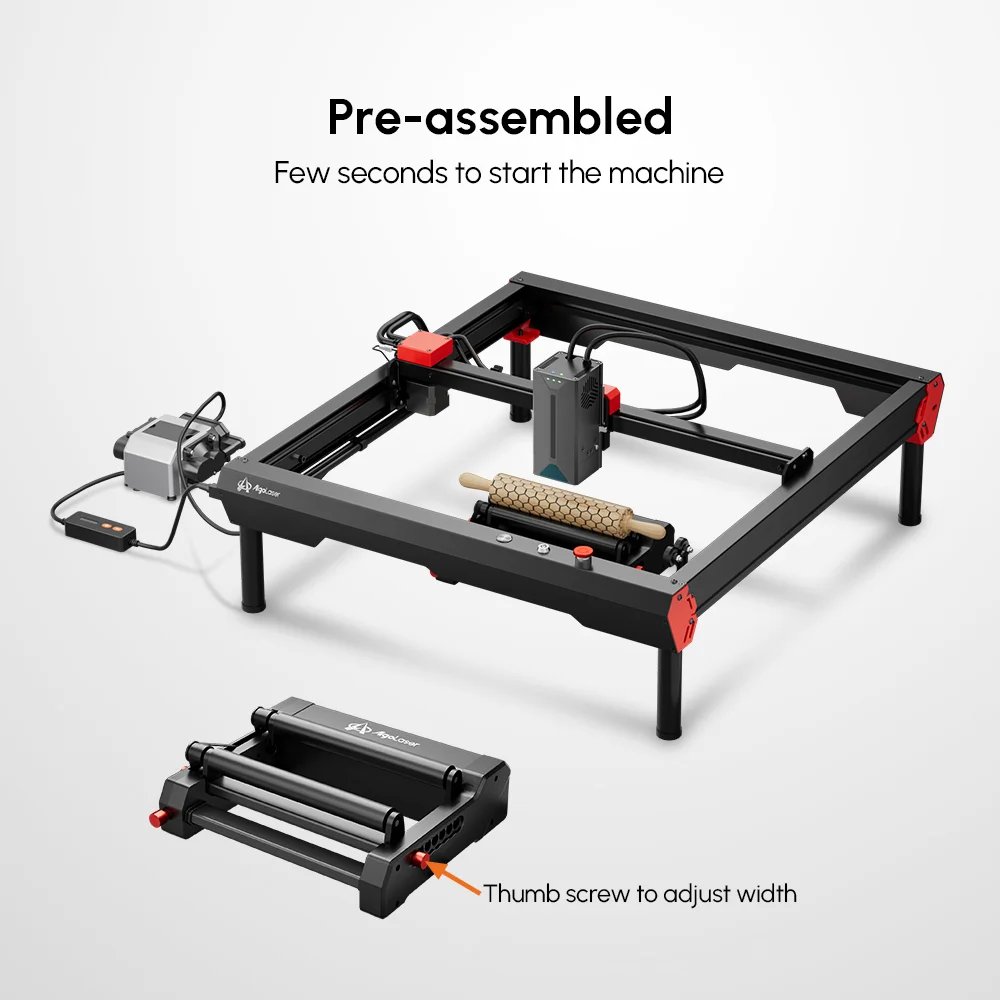

- Pre-assembled & Easy Setup: The unit comes pre-assembled for quick installation, connecting directly to the laser engraver’s Y-axis motor cable.

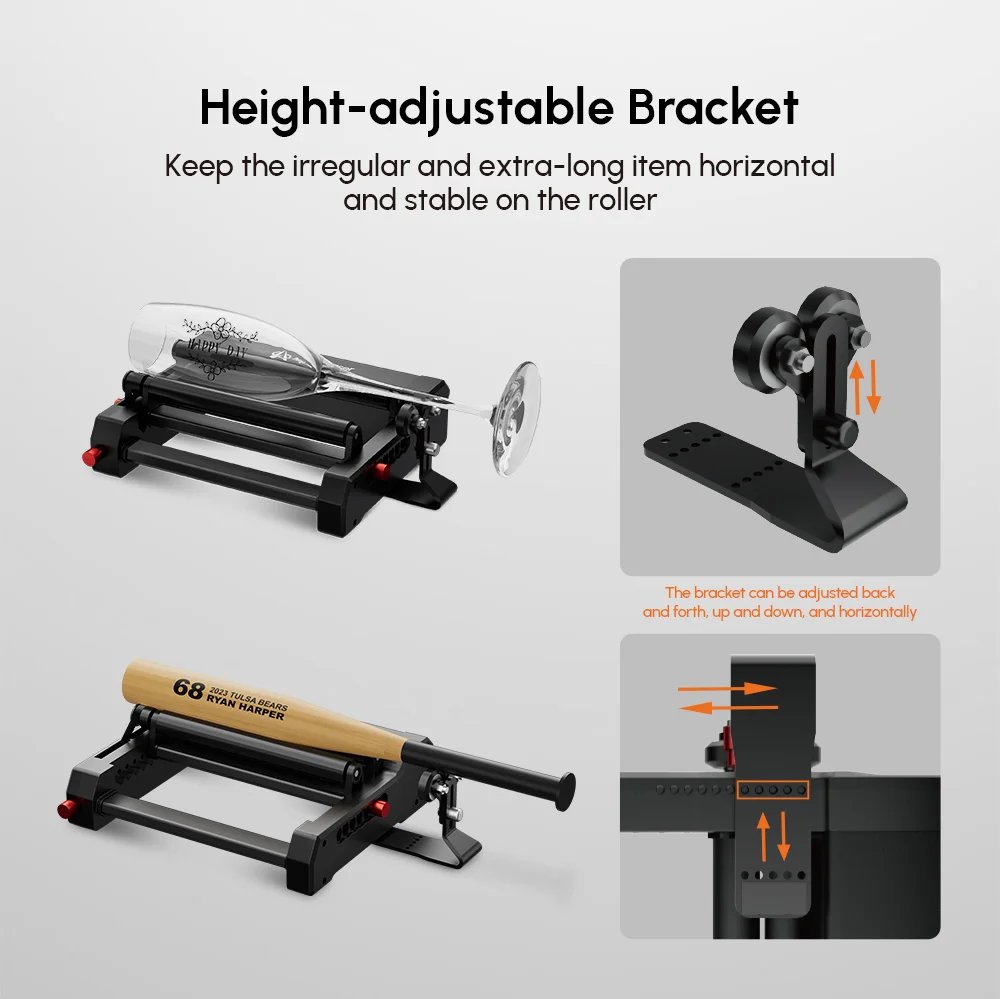

- Included Support Bracket: Features a height-adjustable bracket to keep long or irregular items stable during operation.
Compatibility & Setup:

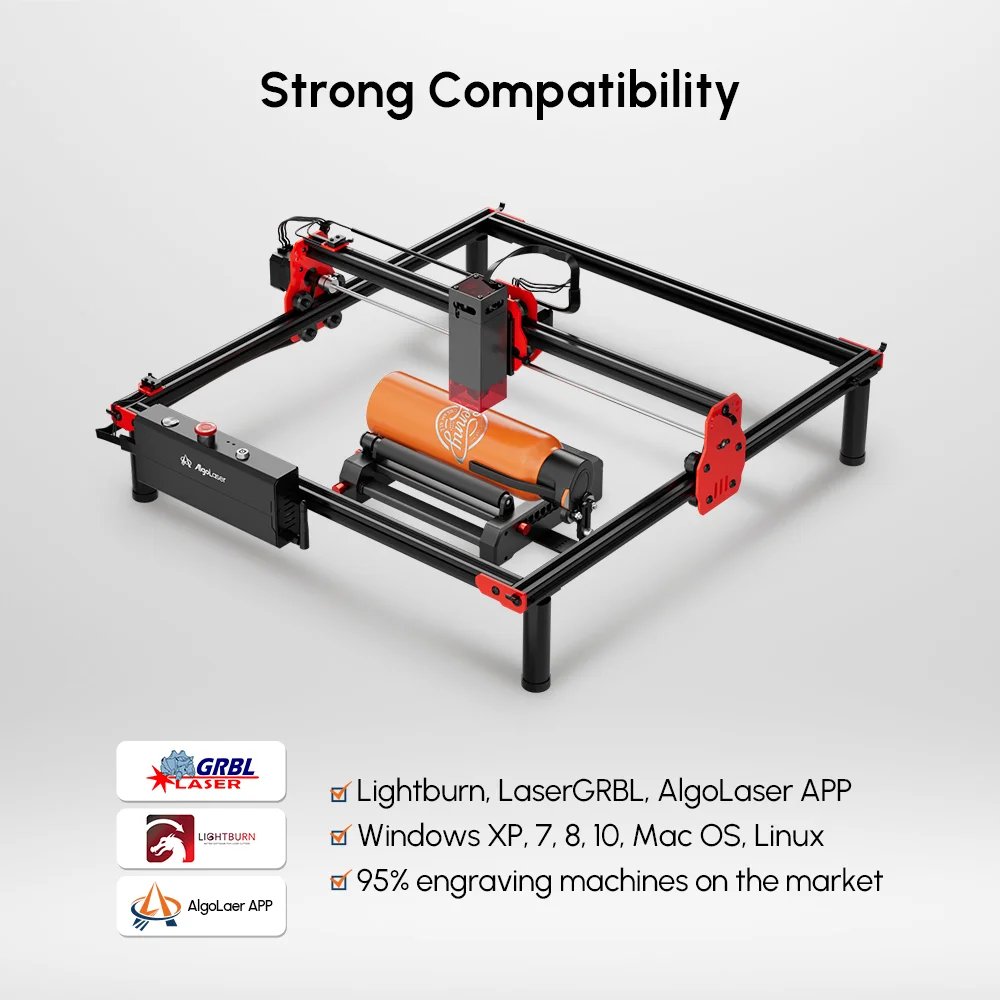

- Software: Seamlessly integrates with LightBurn, LaserGRBL, and the AlgoLaser App.
- Machine Support: Compatible with 95% of the laser engraving machines on the market, including the AlgoLaser Alpha, DIY Kit, and Delta series, as well as Ortur and Aufero models.
- Technical Setup: Requires unplugging the standard Y-axis motor and connecting the RR2 cable. In software like LightBurn, users typically set the Y-axis steps per mm to 80 and disable the homing cycle for best results.
Specifications:
- Model: RR2
- Product Type: Y-axis rotating roller (360° coverage)
- Dimensions: 265 x 195 x 70mm (including bracket)
- Weight: 1.15kg (including bracket)

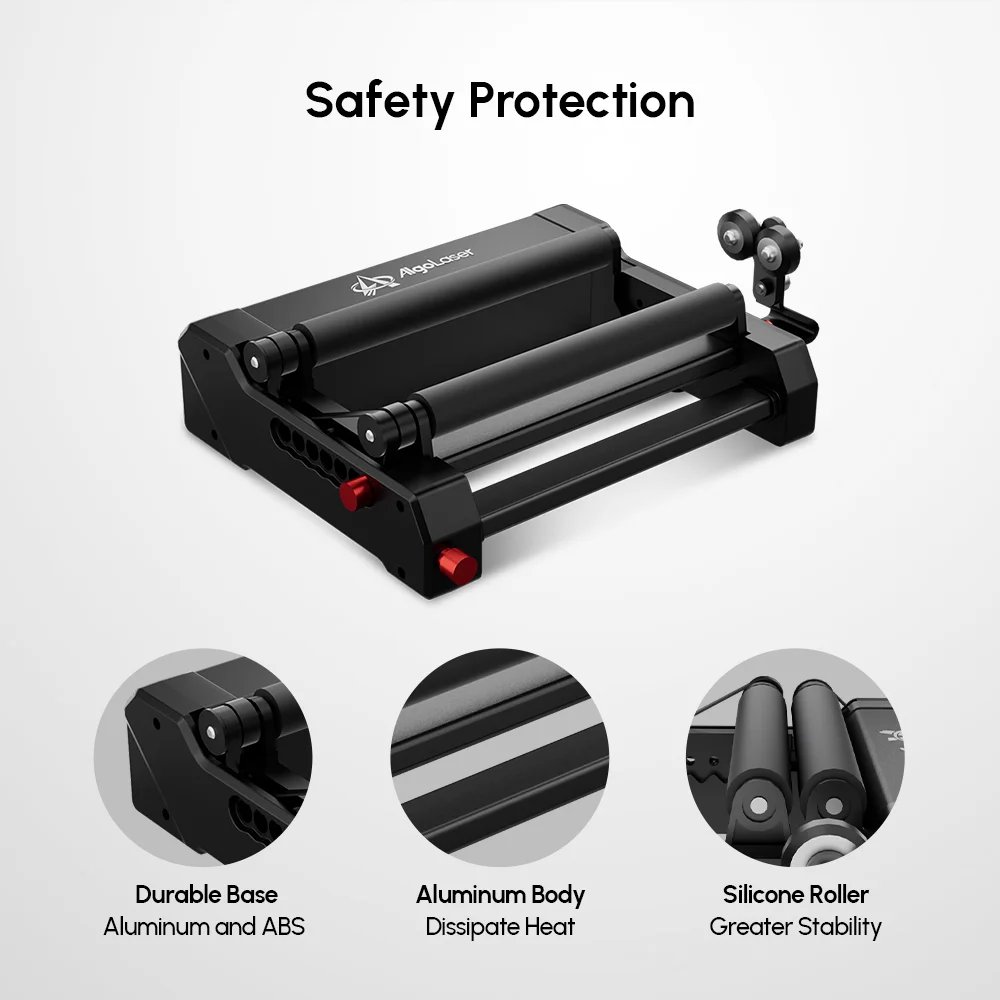

- Material: Aluminum and ABS base, Silicone rollers
- Drive Mode: Single motor drive
- Cylinder Diameter Support: 1mm – 150mm
- Goblet Diameter Support: 1mm – 100mm
- Maximum Length (Inverted): Up to 135 cm
- Best Engraving Speed: 3000mm/min
- Software Compatibility: LightBurn, LaserGRBL, AlgoLaser App

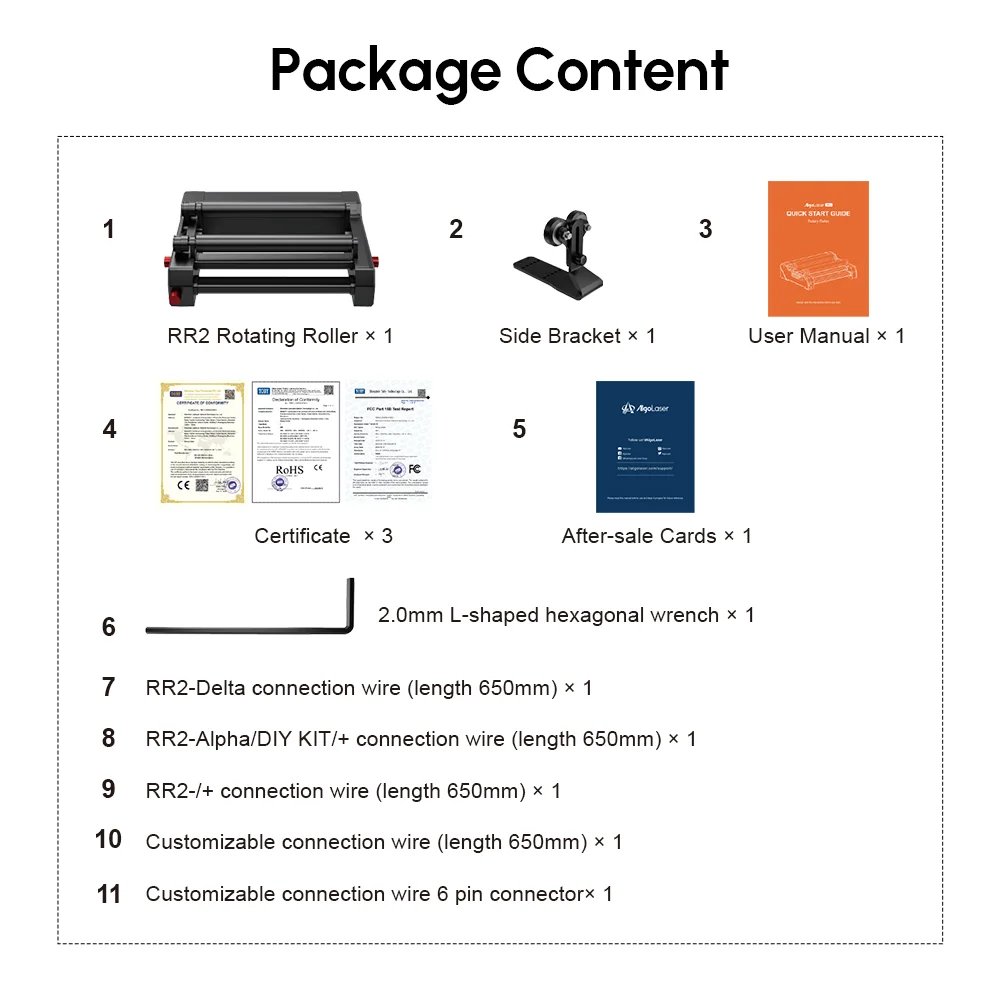

Package Contents:
- 1 x RR2 Rotary Roller
- 1 x Side Bracket
- 1 x 2.0mm L-shaped hexagonal wrench
- Various connection cables (RR2-Delta, RR2-Alpha/DIY, etc.)
| Size | 300x300mm, 400x400mm, 500x500mm |
|---|
Core Functionality:
- Type: Roller-style rotary attachment
- Purpose: Engraving cylindrical / curved objects
- Rotation Mechanism: Dual rubber rollers (friction-driven)
Size & Compatibility:
- Compatible Machines:
- AlgoLaser Alpha MK2 series
- AlgoLaser Delta series
- Most GRBL-based diode engravers
- Connection Type:
- Direct motor cable (replaces Y-axis motor)
Object Capacity:
- Supported Object Types:
- Bottles
- Tumblers
- Glasses
- Pipes / tubes
- Diameter Range (approx.):
- ~10 mm to 100 mm (adjustable)
- Max Object Length:
- Depends on engraver frame size
Build & Design:
- Material: Metal frame + rubber rollers
- Roller Type: Non-slip rubber
- Adjustment: Manual sliding rails for different diameters
- Motor: Stepper motor (precise rotation control)
