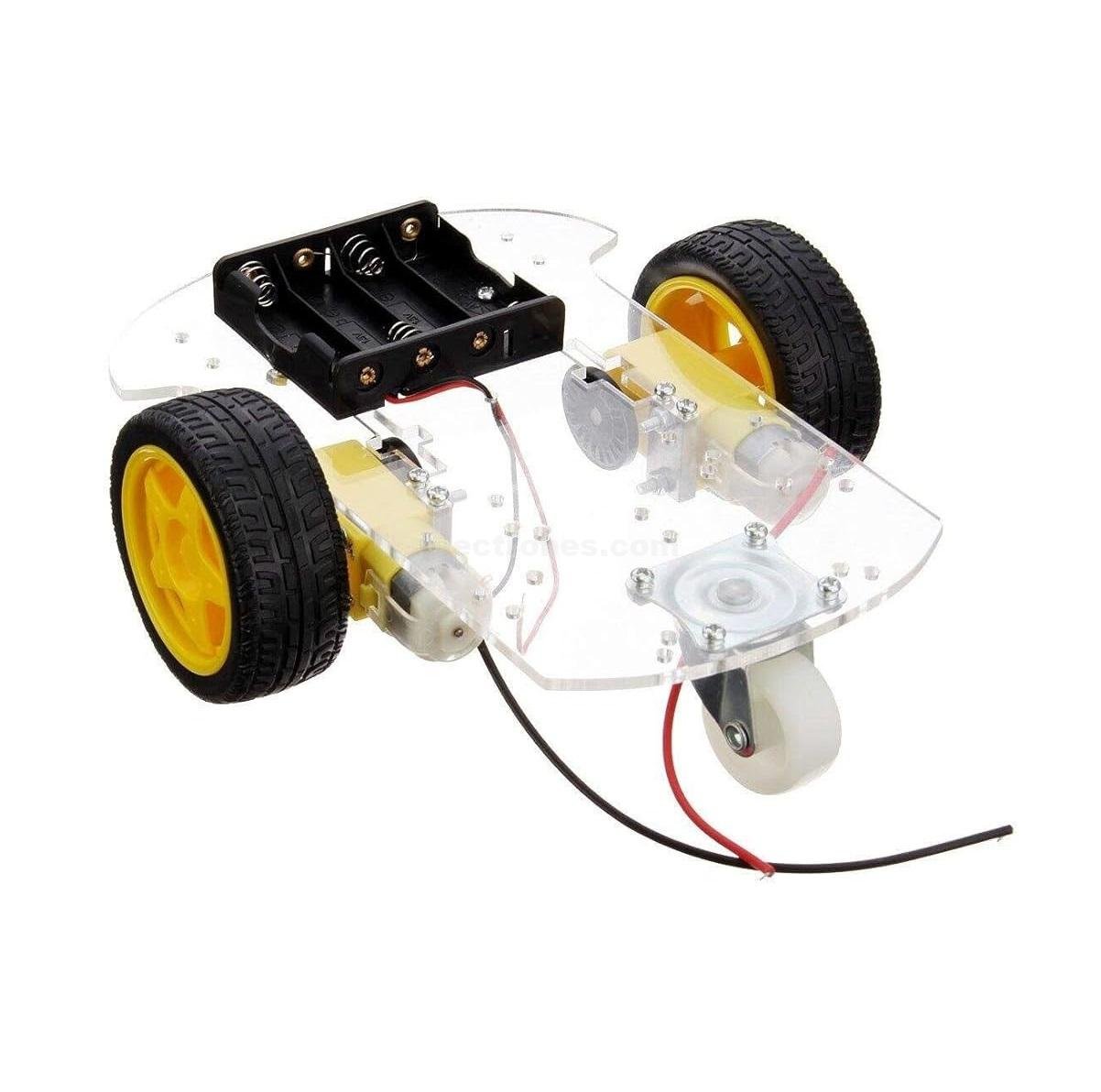

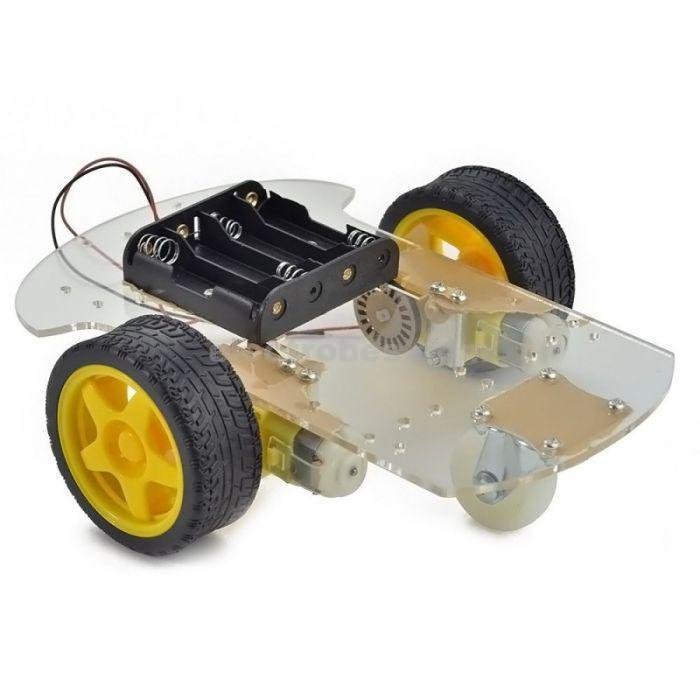

2WD Smart Robotics Robot Car Chassis Kit with DC Motor Set

This robot kit is perfect for your robot projects. The kit includes 2 wheels, 2 DC gear motors at speed 125 RPM and reduction ratio of 1:48.

This kit includes, 2 wheels, 2 gear motors, 4 x battery holder, laser cut acrylic single level chassis, 2 speed encoder disk, 1 caster, 1 screw driver and several screws and nuts.

The 2 DC gear motors has reduction ratio of 1:48 and speed of 125 RPM at 3V. The 2 speed encoder are used for measuring walking distance and speed. It has a 3rd caster so the robot can turn into any direction.

Features:

• Brand new and high quality imported chassis, motors, wheels, etc.
• Mechanical structure is simple, it is easy to install.
• This car comes with the tachometer encoder and with a 4 AA battery box.
• Can be used for distance measurement, velocity.
• Can use with other devices to realize function of tracing, obstacle avoidance, distance testing, speed testing, wireless remote control.

Note: motor power supply is 3V~6V. All the parameter above is tested without load.

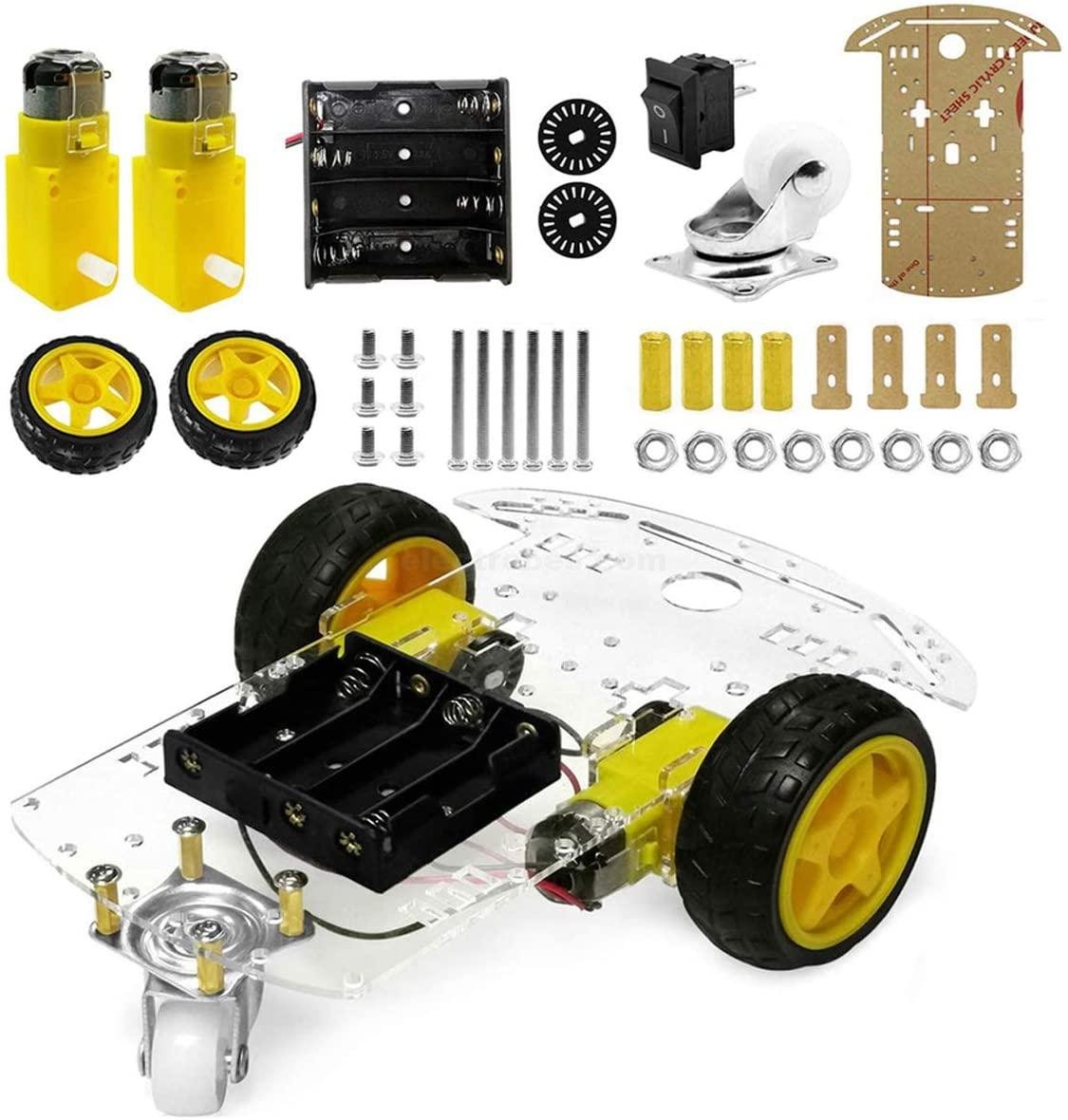

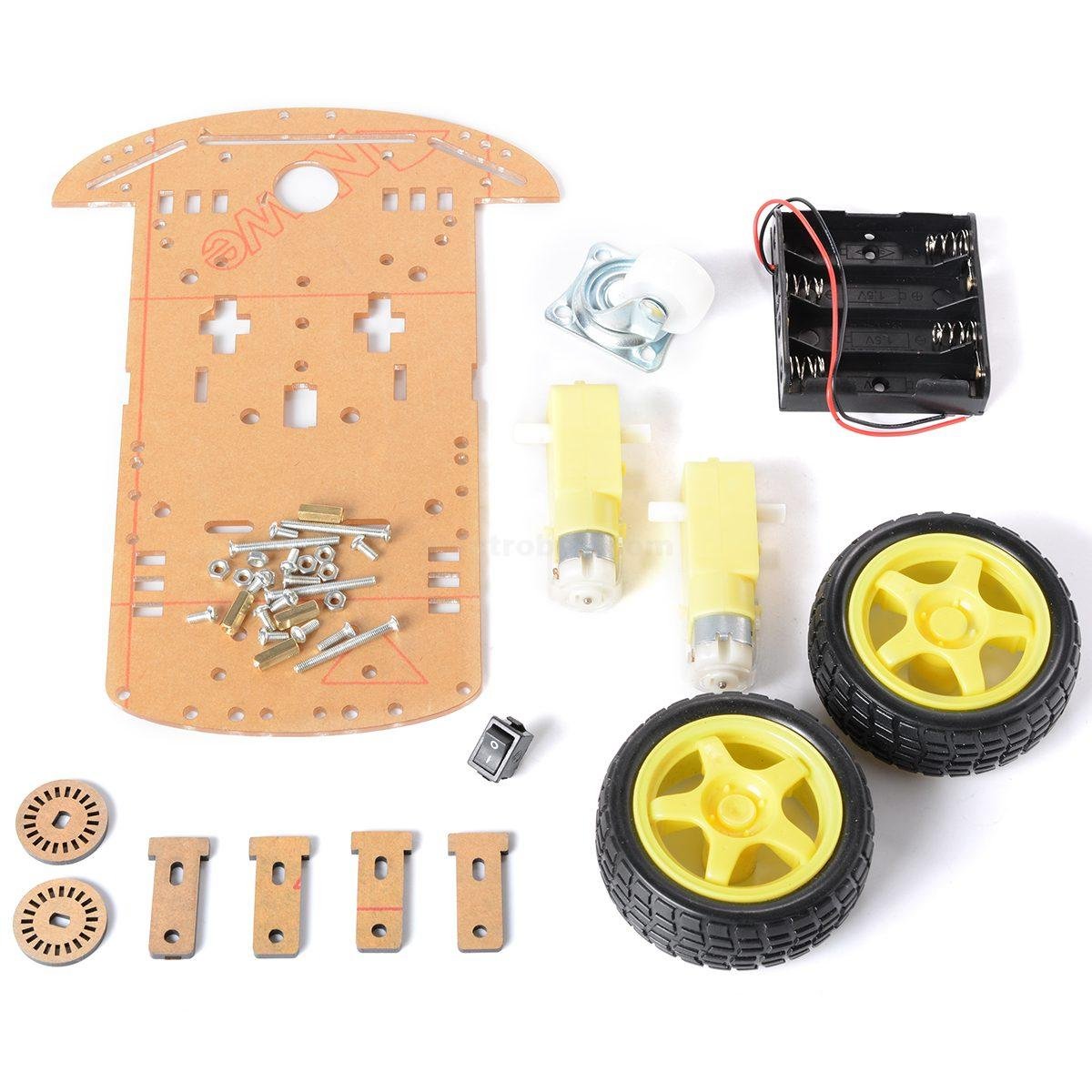

Package Contents with Specifications:

• high strength plexiglass panels, size 220mm * 150mm
• high-quality tires 66mm x 2
• biaxial gear motor x 2
• two sets of aluminum metal fasteners
• a caster wheel
• a battery case
• black speed encoder x 2
• Wires
• Screws
• Screw Driver
• DC Motor Specs:

• • DC gear motor no load speed: 125 RPM at 3 V
  • Reduction Ratio: 1:48
