Arduino Mega Atmega2560 With Cable – 16U2
Arduino Mega Atmega2560 With Cable based on the ATmega2560. It has 54 digital input/output pins, includes a 16 MHz crystal oscillator. Buy online in Pakistan.
In stock
₨ 3,700 ₨ 4,000
In stock
Arduino Mega Atmega2560 With Cable – 16U2

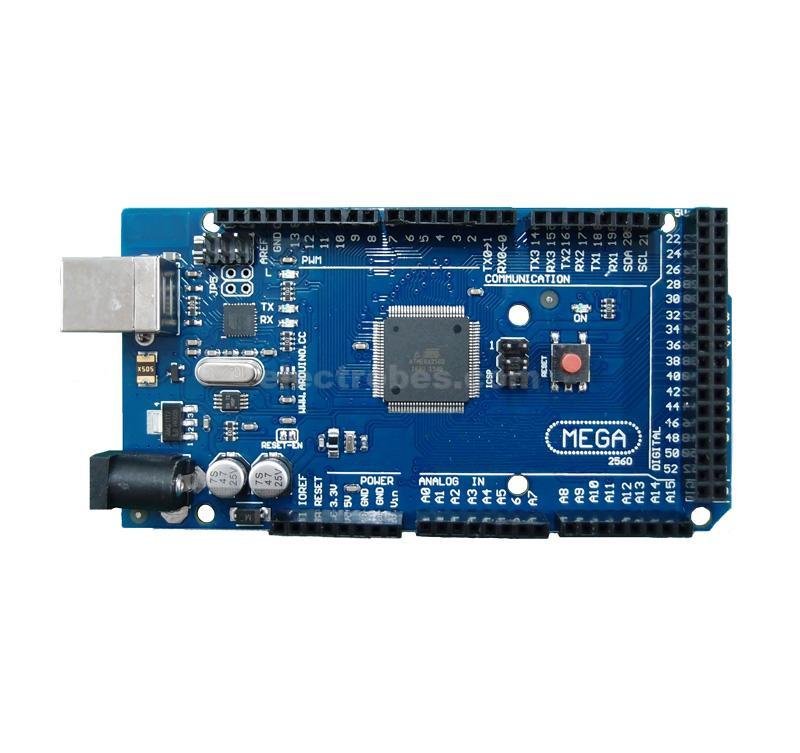

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.
Getting Started with Arduino MEGA2560
The Arduino MEGA 2560 is designed for projects that require more I/O lines, more sketch memory and more RAM. With 54 digital I/O pins, 16 analog inputs and a larger space for your sketch it is the recommended board for 3D printers and robotics projects. This gives your projects plenty of room and opportunities maintaining the simplicity and effectiveness of the Arduino platform. This document explains how to connect your Mega2560 board to the computer and upload your first sketch.
The Arduino Mega 2560 is programmed using the Arduino Software (IDE), our Integrated Development Environment common to all our boards and running both online and offline. For more information on how to get started with the Arduino Software visit the Getting Started page.
Pinout Diagram:
Package Includes:

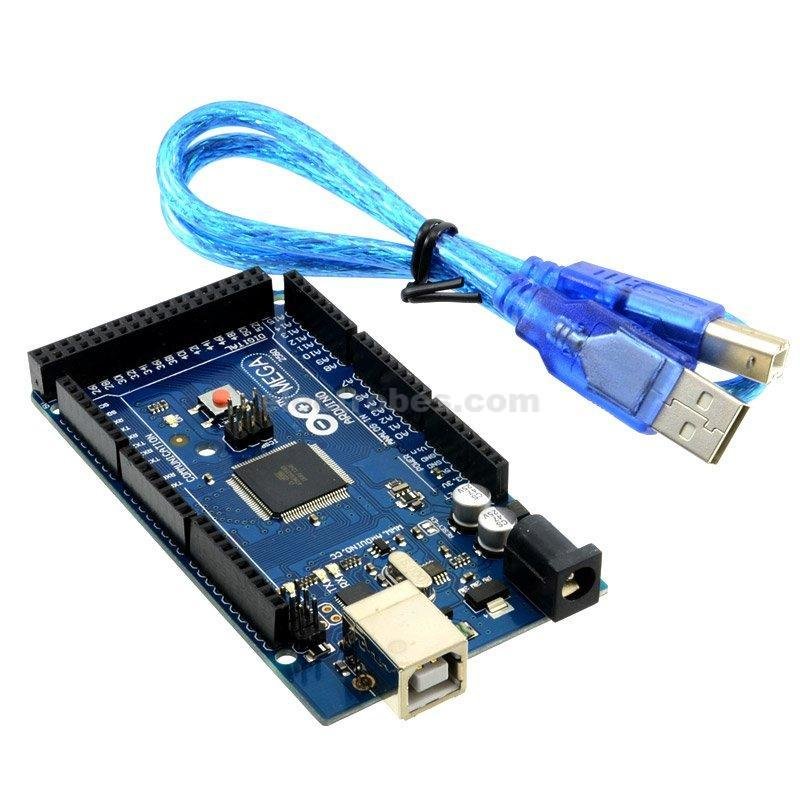

1 x Arduino Mega 2560
1 x USB Cable
| MicrocontrollerATmega2560 | |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Analog Input Pins | 16 |
| Digital I/O Pins | 54 (of which 14 provide PWM output) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16MHz |
| Flash Memory | 256 KB of which 8 KB used by bootloader |
