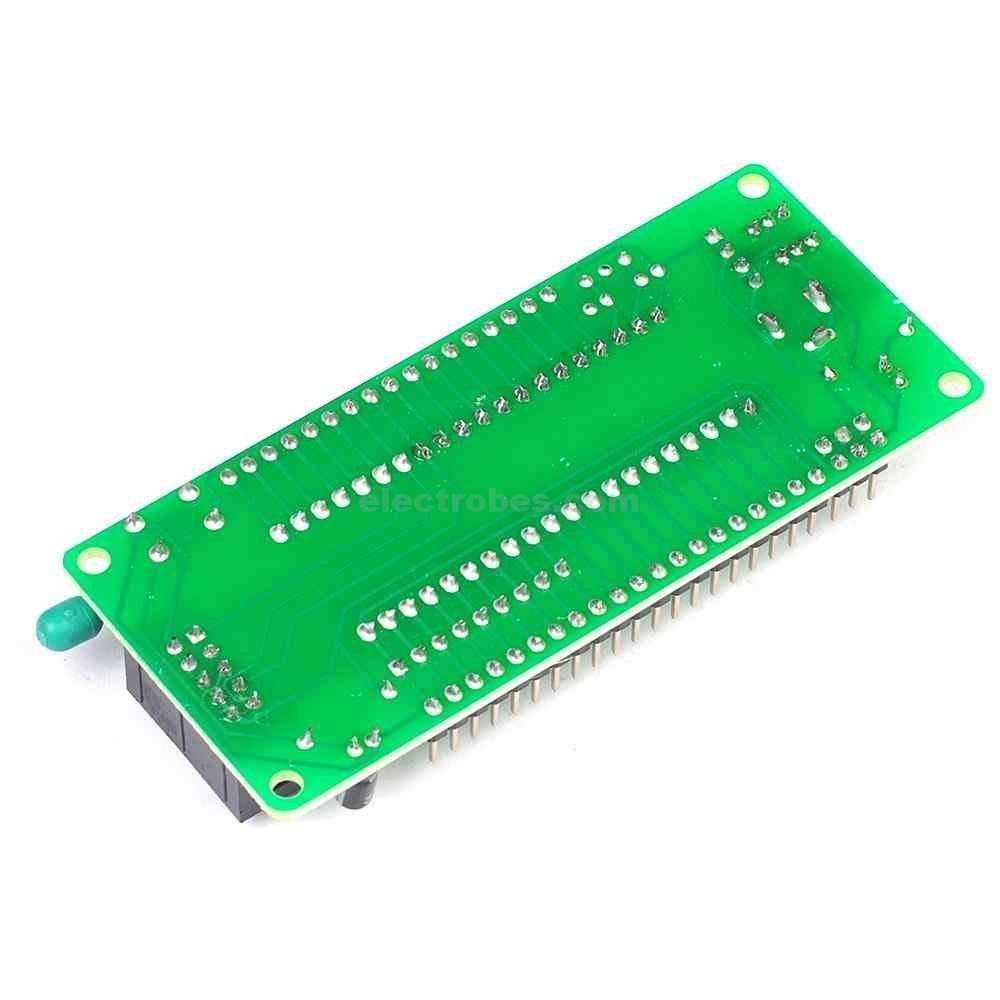

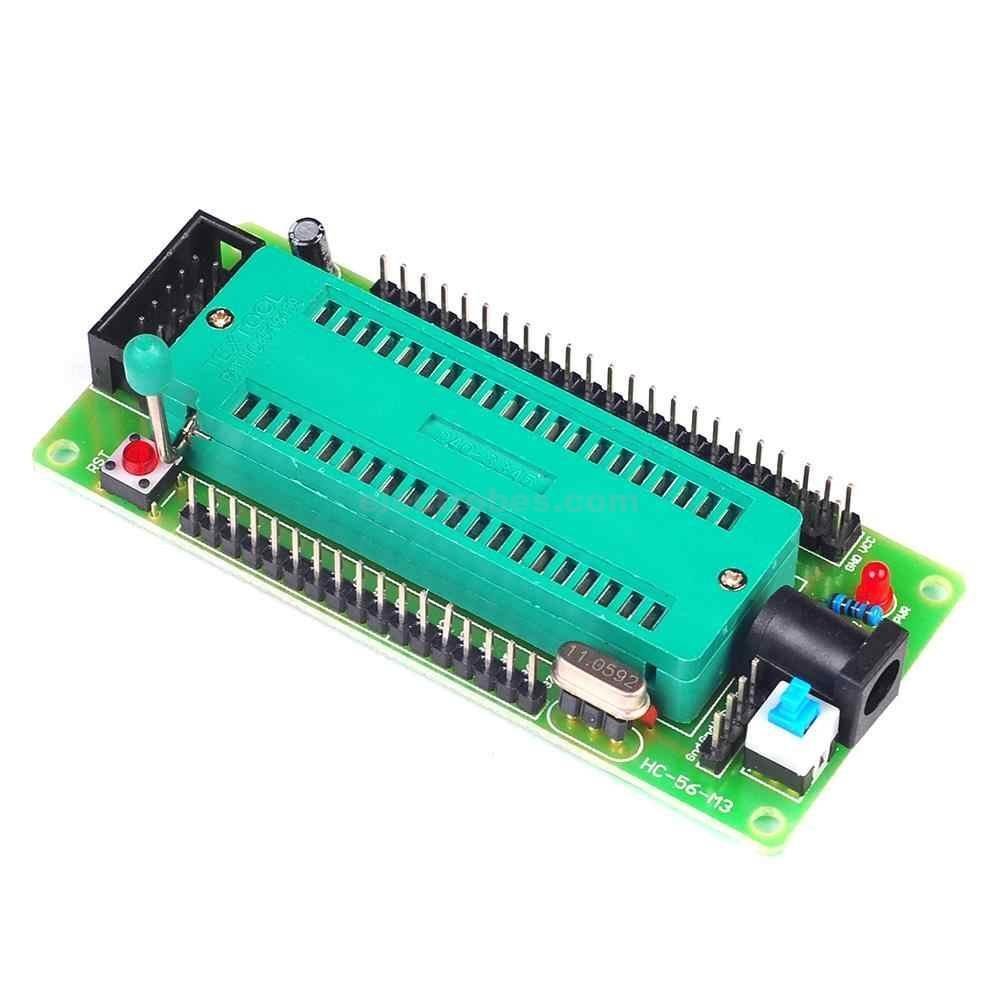

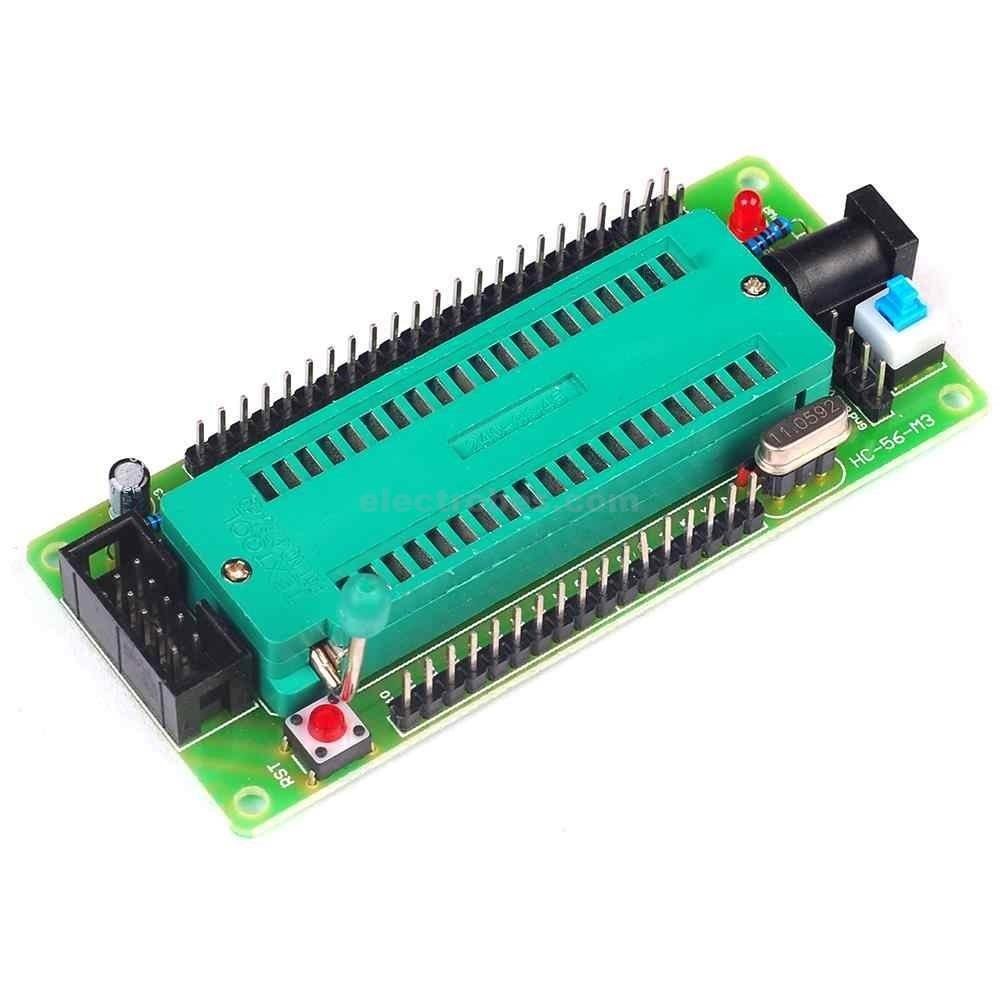

8051 AVR MCU Minimum System Development Board Microcontroller Programmer
If you are learning microcontrollers or want to quickly develop embedded project based on standard 8051 core, than this board will help you quick start with the application by giving you access to everything required to run the AT89S52 microcontroller. With this board you can develop and prototype with any of 8051 40 pin microcontrollers. The board have inbuilt user buttons, crystal and status LED.
In stock
₨ 450
In stock
8051 89C51 89C52 89S51 89S52 AVR MCU Minimum System Development Board Microcontroller Programmer
Features:
1. The IO port is all led out, the classic minimal 51 system, eliminating soldering problems
2. Integrated ISP 10P download interface, AT89S52 microcontroller easy to download.
3. Welding is a round hole outlet to easily replace the crystal oscillator (default is 11.0592 M)
4. Support chip: STC89C52 STC12C5A60S2 STC11 / 10x series AT89S52 chip compatible with the chip pin
5. A switch for an easy experience.
6. Power input 2 ways: DC-005 socket (the support seat is 5.5 * 2.1) and a row pin (next to the power switch)
7. Expand 3 channels of VCC and GND as shown in the headings of the pins in the figure.
8. Port P0 with extraction resistance.
9. Reset mode: power on reset and external button reset.
10. Use the green IC lock seat to facilitate chip replacement.
11. Size: 4.1cm * 8.9cm
Package Includes:
1 x 8051 Development Board
1 x 11.0592 Crystal Oscillator

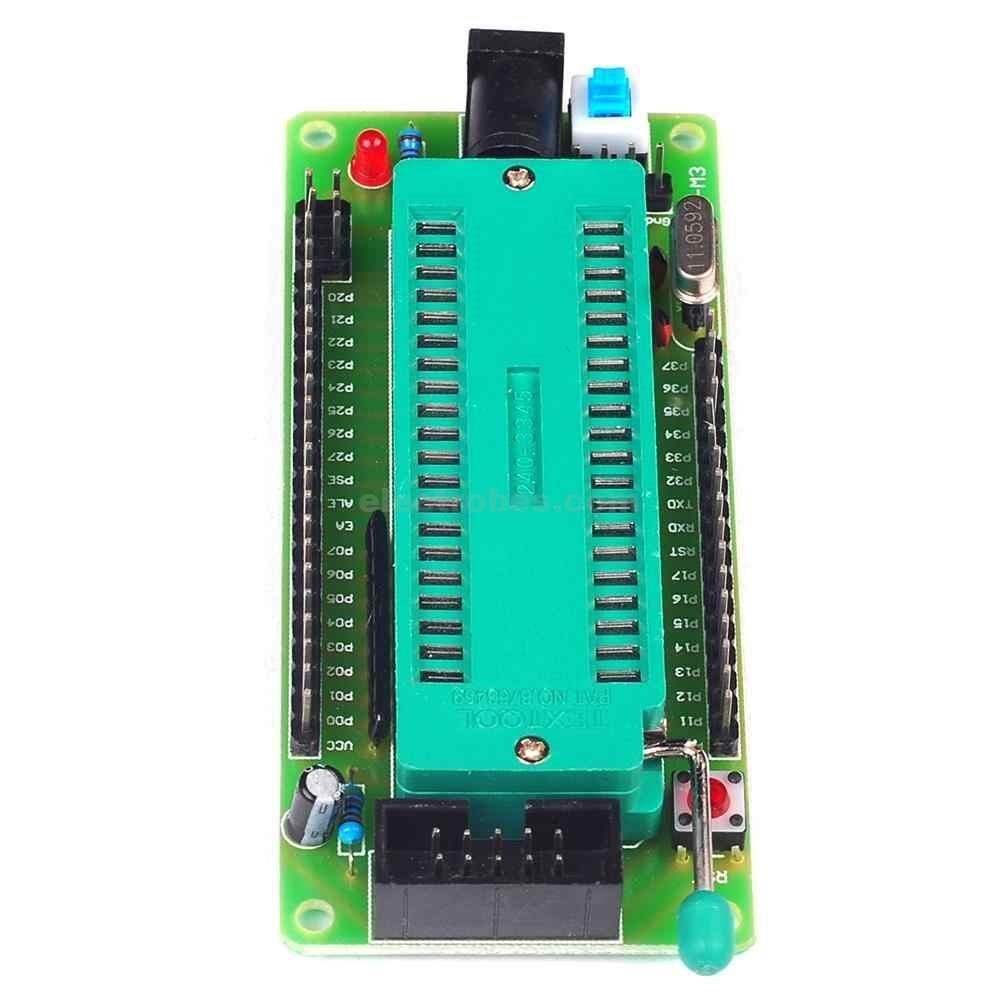

- All leads P0 P1 P2 P3 interface pin header, P0 pull-up resistor.
- There is 5V power connector, pin and DC5
- There are power indicator
- 12MHz crystal oscillator
- The convenient interface RXD TXD GND STC microcontroller serial download.
- There ATMEL ISP download port for easy AT89S series microcontroller downloaded.
- There are self-locking power switch
- There reset button
- Locking seat for easy replacement chip
- PCB size 40mm X 88mm
- There are four positioning mounting screw holes
