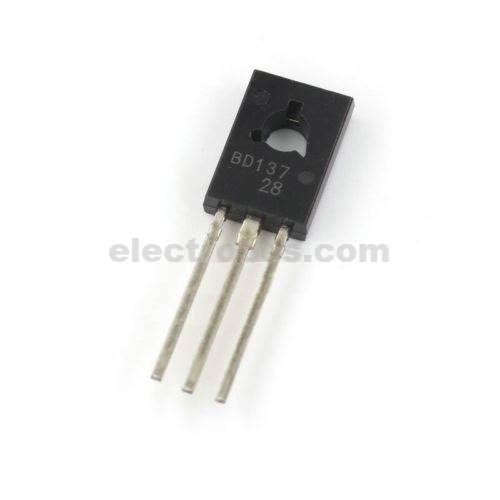

BD137 1.5 A 60V NPN Bipolar Power Transistor
- Type – NPN
- Collector-Emitter Voltage: 60 V
- Collector-Base Voltage: 60 V
- Emitter-Base Voltage: 5 V
- Collector Current: 1.5 A
- Collector Dissipation – 12.5 W
- DC Current Gain (hfe) – 40 to 250
- Operating and Storage Junction Temperature Range -55 to +150 °C
- Package – TO-126
Availability:
Out of stock
₨ 15
Out of stock
Pin Configuration:
| Pin Number | Pin Name | Description |
| 1 | Emitter | Current Drains out through emitter, normally connected to ground |
| 2 | Collector | Current flows in through collector, normally connected to load |
| 3 | Base | Controls the biasing of transistor, Used to turn ON or OFF the transistor. |
