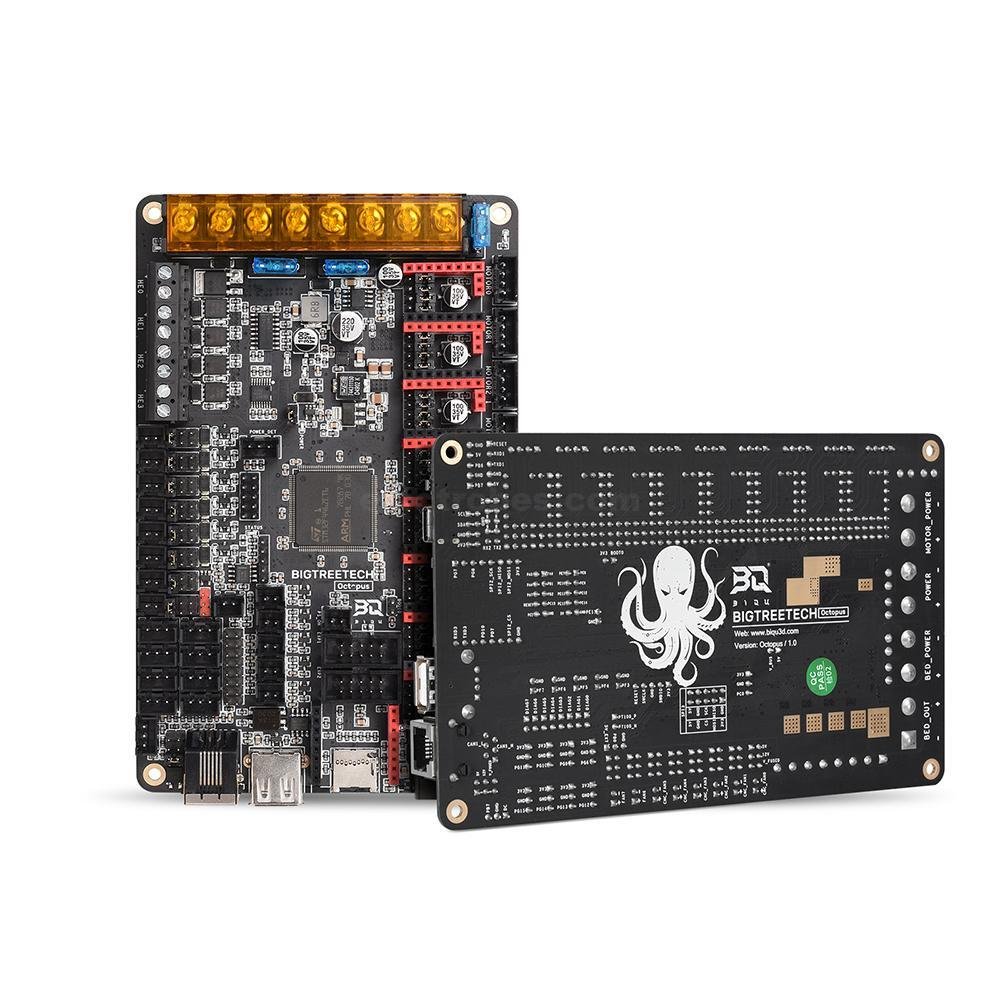

BIGTREETECH Octopus V1.1 Control Board 32bit Compatible TFT Series Screen, Support DIY Klipper Firmware and Raspberry Pi Online Printing for Voron V2.4 Upgrade 3D Printer
BIGTREETECH Octopus Pro is a very powerful motherboard with 8 stepper driver support, so this motherboard can control up to 8 different axes. This feature is especially suitable for multi-colour printing and tool changer, for the use of different tools/modules such as different 3D print heads, laser engraving, laser cutting etc.
The mainboard is compatible with Klipper, RepRap and Marlin and supports Raspberry Pi and Octoprint. FDM 3d printers are available at electrobes. You can buy this kit at the best price online in Pakistan.
BIGTREETECH Octopus V1.1 Control Board 32bit Compatible TFT Series Screen, Support DIY Klipper Firmware and Raspberry Pi Online Printing for Voron V2.4 Upgrade 3D Printer
Features:
Main Control Chip: Uses a 32-bit ARM Cortex-M4 series STM32F446ZET6 main control chip with a core frequency of 180MHz.
Strong DIY Support: This motherboard supports up to 8 stepper drivers with 9 stepper driver outputs in total; And up to 6 PWM fans and 2 always-on fans with the ability to individually select the voltage rail that will drive each fan. Select from Vin, 12V or 5V.
Motherboard Expansion Function: Support BLTouch, locked-rotor detection, shutdown after printing, resume printing after power failure, CAN bus, U disk function, IIC expansion; at the same time reserved WIFI interface, PT100 thermistor interface (optional), dual Z-axis printer.
TMC2209 Driver Features: The TMC2209 stepper driver is not easy to lose steps and is in an ultra-quiet mode; the module has a large area of heat dissipation pad, which can reduce the temperature of the driver when it is working; the module supports three modes: STEP / DIR and UART.
TMC2209 Driver Mode: TMC Motor drivers can be used in SPI or UART mode by simply adjusting the onboard jumpers beneath each motor driver. Additionally you can connect or disconnect the TMC DIAG pin using an onboard jumper allowing you to use hard endstops or sensorless homing without the need to cut any pins.
