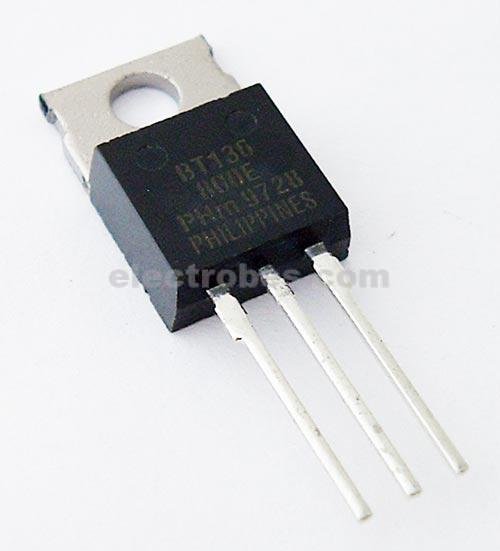

BT136 BT-136 TRIAC 600E Switching Transistor
The BT136 is a four-quadrant TRIAC from NXP that can handle medium power switching of loads up to 600V and 16A. With the ability to work in four quadrants, it can switch both positive and negative currents and operate with a positive or negative gate current.
In stock
₨ 40
In stock
Pin Configuration
| Pin Number | Pin Name | Description |
| 1 | Main Terminal 1 | Connected to Phase or neutral of AC mains |
| 2 | Main Terminal 2 | Connected to Phase or neutral of AC mains |
| 3 | Gate | Used to trigger the SCR. |
Features:
- Maximum Terminal current: 4A
- On-state Gate voltage: 1.4V
- Gate trigger current: 10mA
- Max Terminal Voltage is 600 V
- Holding current: 2.2mA
- Latching current: 4mA
- Available in To-220 Package
Applications
- AC Light dimmers
- Strode lights
- AC motor speed control
- Noise coupling circuits
- Controlling AC loads using MCU/MPU
- Ac/DC Power control
Datasheet:
- Maximum Terminal current: 4A
- On-state Gate voltage: 1.4V
- Gate trigger current: 10mA
- Max Terminal Voltage is 600 V
- Holding current: 2.2mA
- Latching current: 4mA
- Available in To-220 Package
