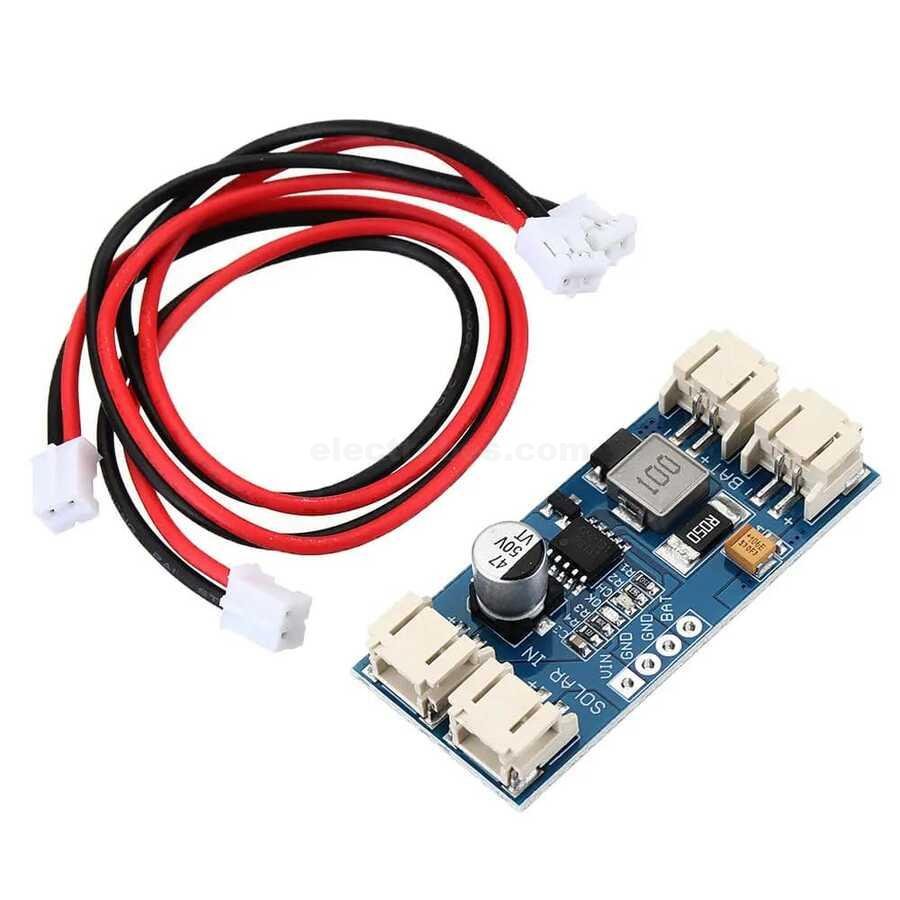

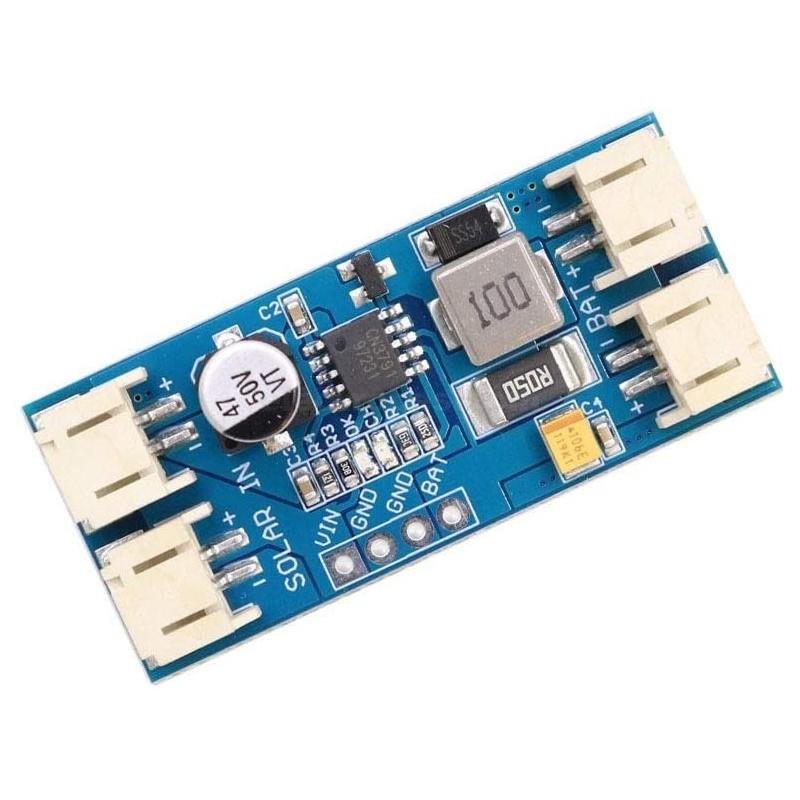

CN3791 MPPT Solar Charge Controller Board 11.1V to 12.6V 3 Cell Lithium Battery Charging Module with 12V 2 Pin JST Connector

Description:

• This is a maximum power point tracking (MPPT) solar charger for single-cell LiPo batteries.

• This MPPT solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargeable LiPo battery.
• Set-up is easy as well, just plug your solar panel into one side of the solar charger and your battery into the other and you are good to start charging
• Solar maximum power point tracking (MPPT) is to ensure that the light intensity change, photovoltaic cells output maximum power, to make full use of solar energy. In general, need to use a switch mode DC – DC converter to realize MPPT function, keep the output voltage and charging current product maximize (output)
• The output of the Solar Charger is intended to charge a single polymer lithium-ion cell. The load should be connected in parallel with the battery. Each Solar Charger comes equipped with a CN3791 power tracking battery charging circuit and pre-installed four 2-pin JST/PH2.0 connectors.

Features:

• Trickle charging of deeply discharged batteries
• Automatic recharge
• Charge status and charge end status indication
• Soft start
• Battery overvoltage protection
• Solar panel maximum power point tracking
• Complete charge management for single-cell lithium batteries

Specifications:

• Input voltage: select the corresponding module according to the nominal voltage of the solar panel
• Input voltage: DC 12V
• Output voltage: nominal 11.1V full charge voltage 12.6V lithium battery
• Interface: 2-pin JST connectors (or PH2.0)
• Max Charging current: 2A
• PWM switching frequency: 300KHz
• Charging voltage: 12.6V ± 1%
• Working environment temperature: -40 ° C to +85 ° C
• Size: 45X20X9.5mm

Package Includes:

1 x CN3791 12V MPPT Solar Charger Module
1 x Pair of wires with 2-pin JST connector on both sides;
