Creality CR-Scan Raptor Pro 3D Scanner for 3D Printing
Creality CR-Scan Raptor Pro 3D Scanner – high-precision, multi-mode 3D scanner ideal for 3D printing, reverse engineering, quality control, and digital archiving.
Available on backorder
₨ 1,040,000
Available on backorder
Creality CR-Scan Raptor Pro 3D Scanner for 3D Printing, Multiple-line Blue & NIR Consumer Handheld Scanner with 0.02mm Accuracy, Anti-Shake Tracking, 24-Bit Fast Full-Color Scanning

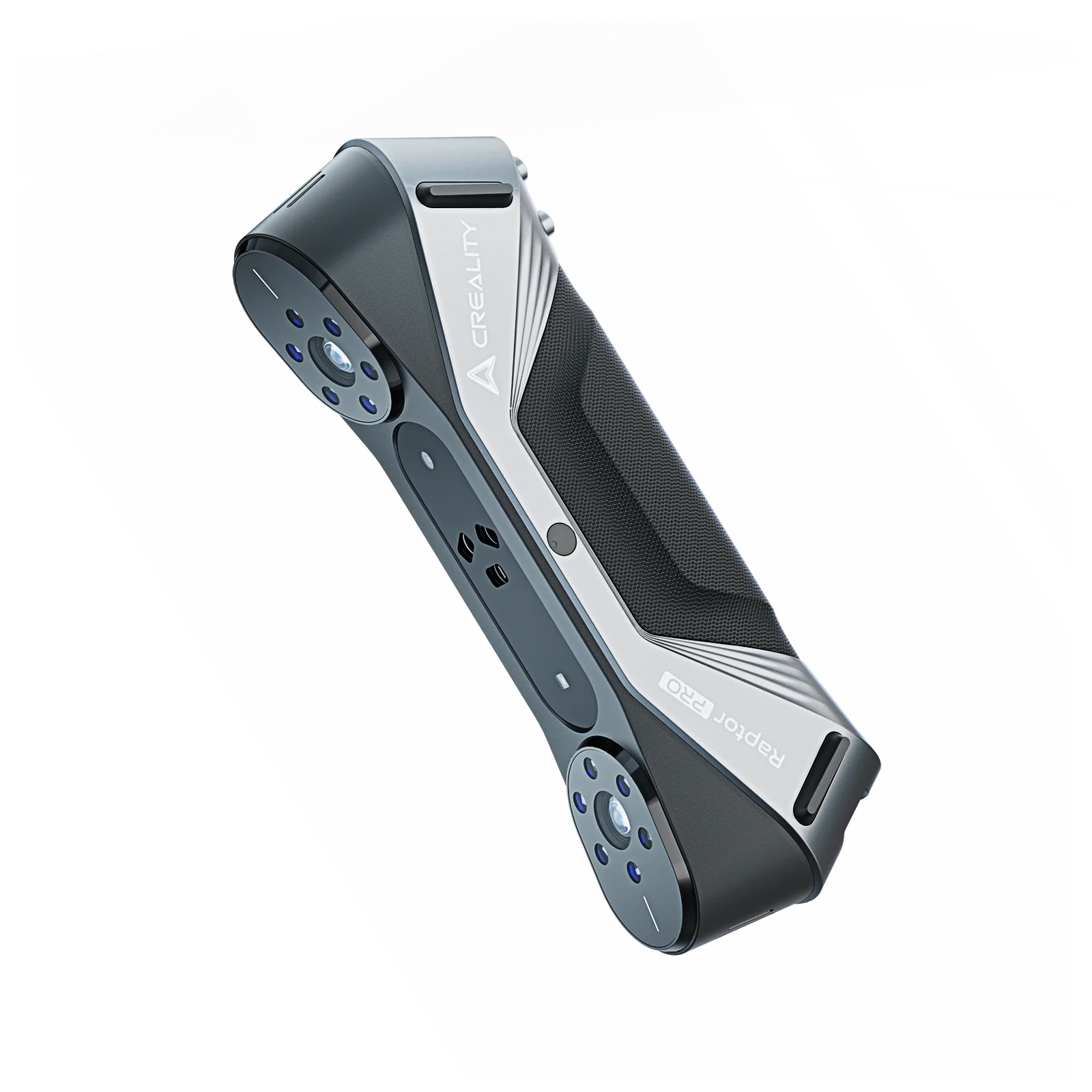

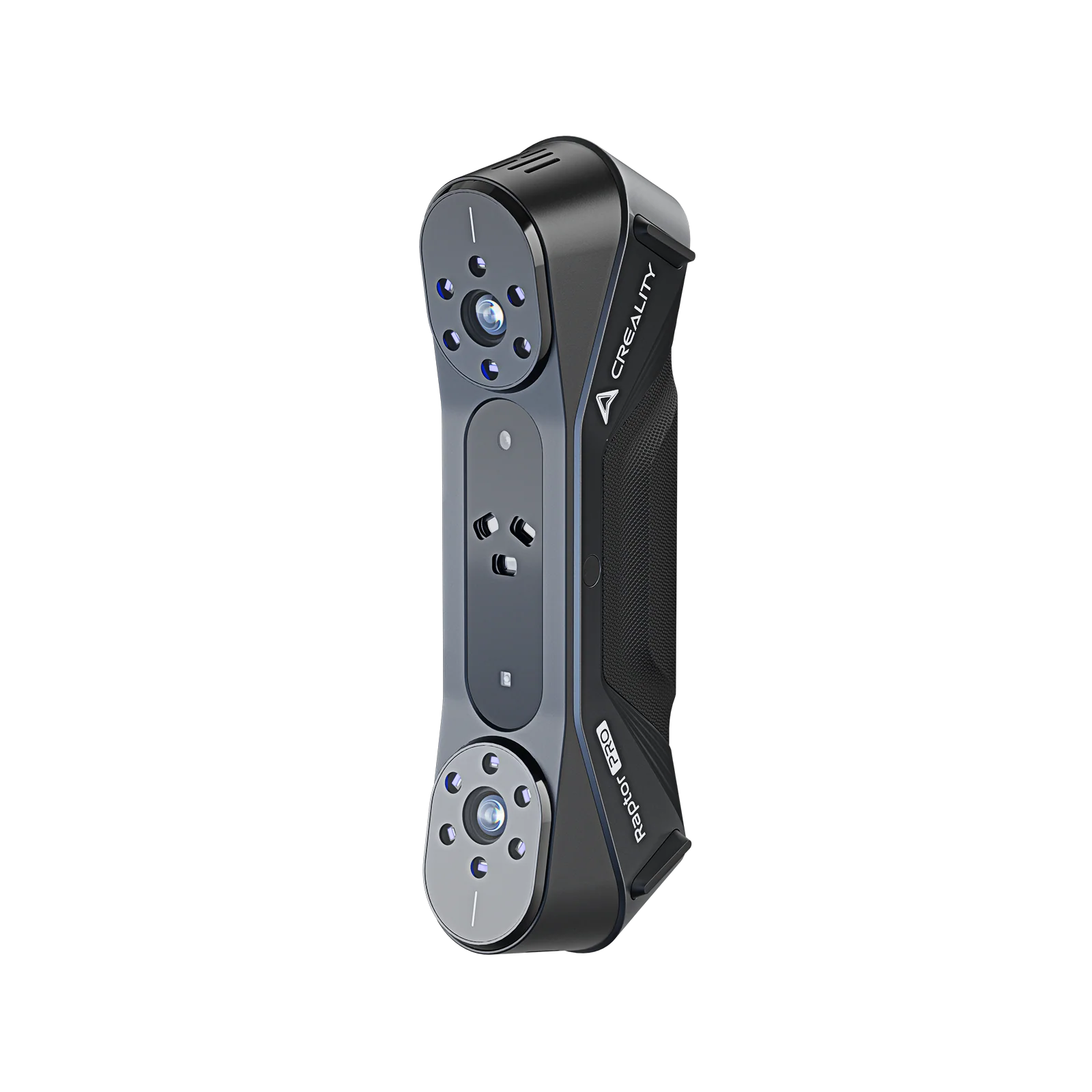

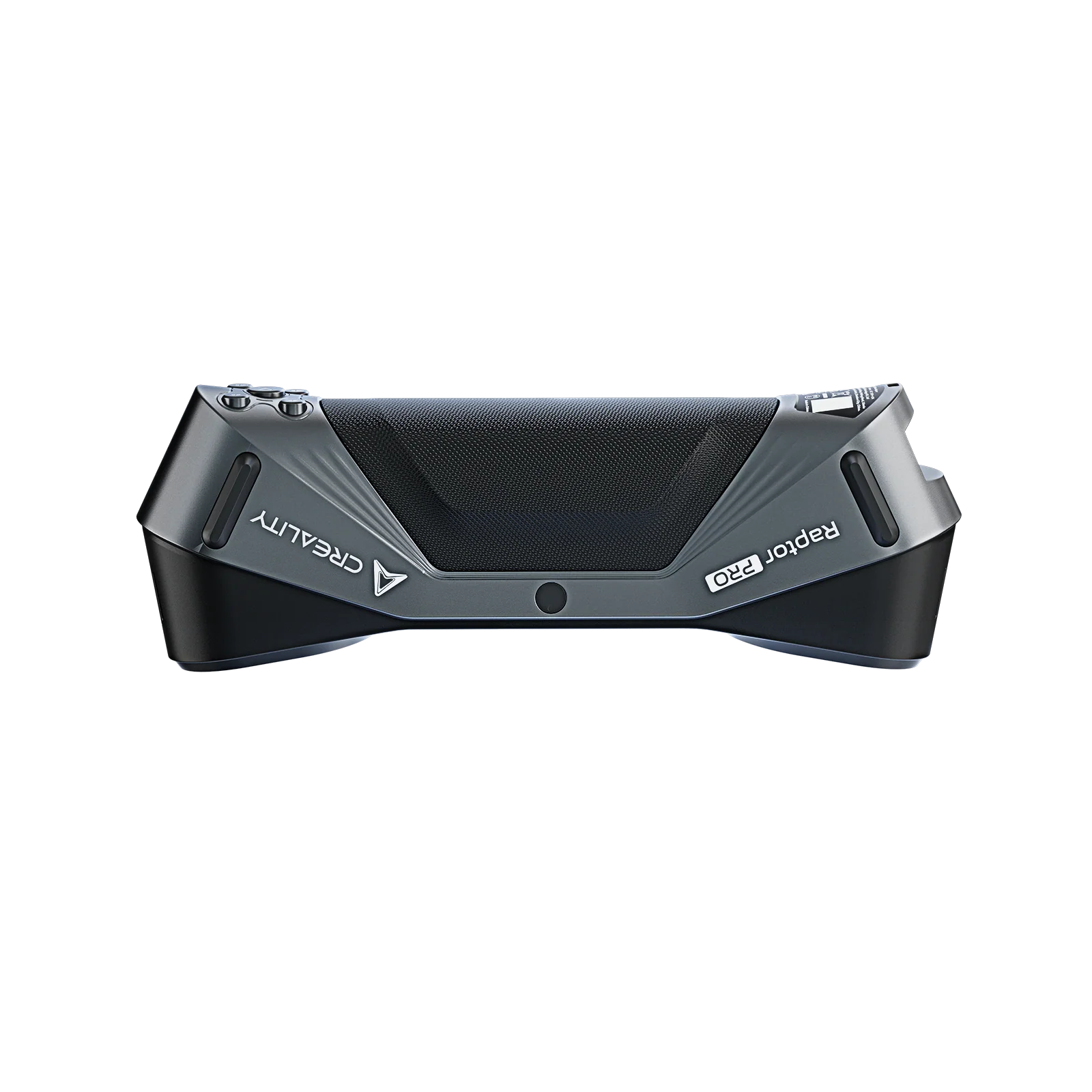

The Creality CR-Scan Raptor Pro is a professional-grade handheld 3D scanner that combines blue laser line technology with structured near-infrared (NIR) light to deliver fast, accurate, and versatile scanning of objects ranging from tiny parts to large assemblies. Designed for ease of use and robust performance, it supports spray-free scanning of difficult surfaces such as black or metallic materials. With high-speed capture, broad scan range, and color capture capabilities, the Raptor Pro is suitable for hobbyists, makers, engineers, and designers alike.
Key Features:
Dual Scan Technology
-

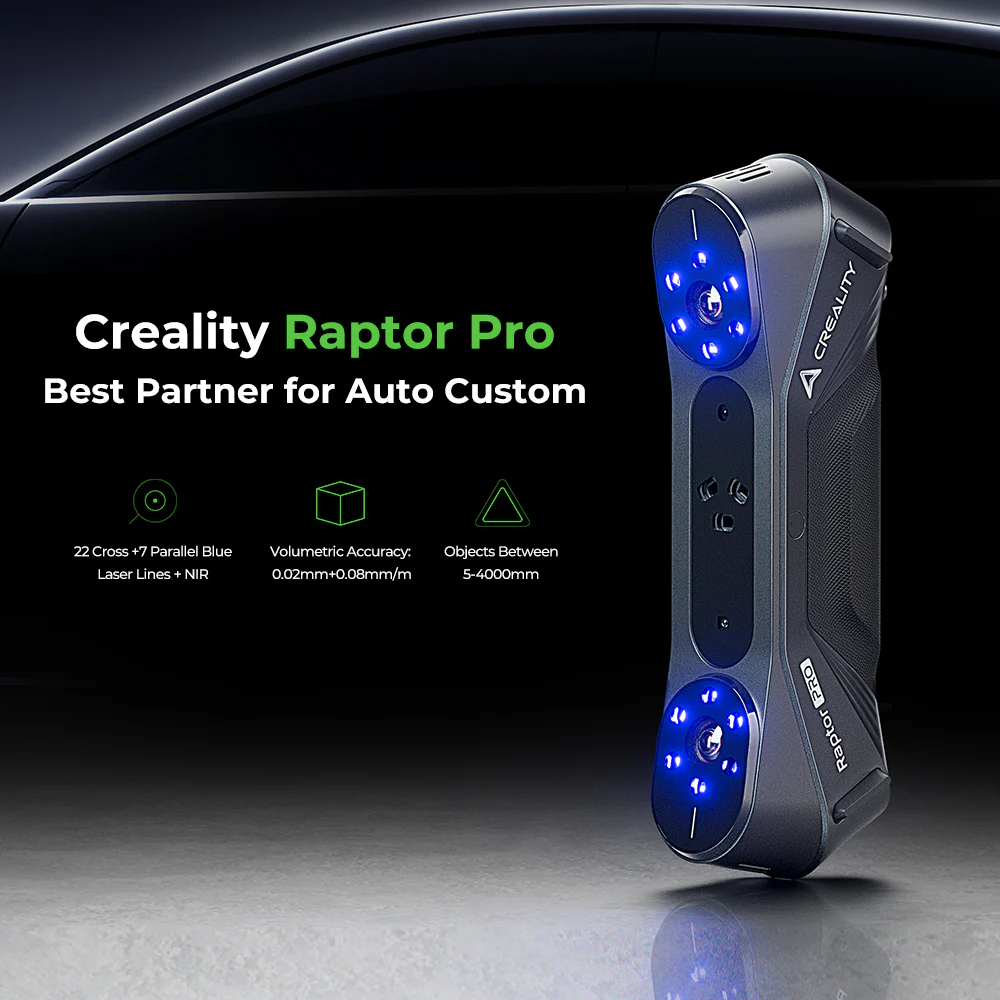

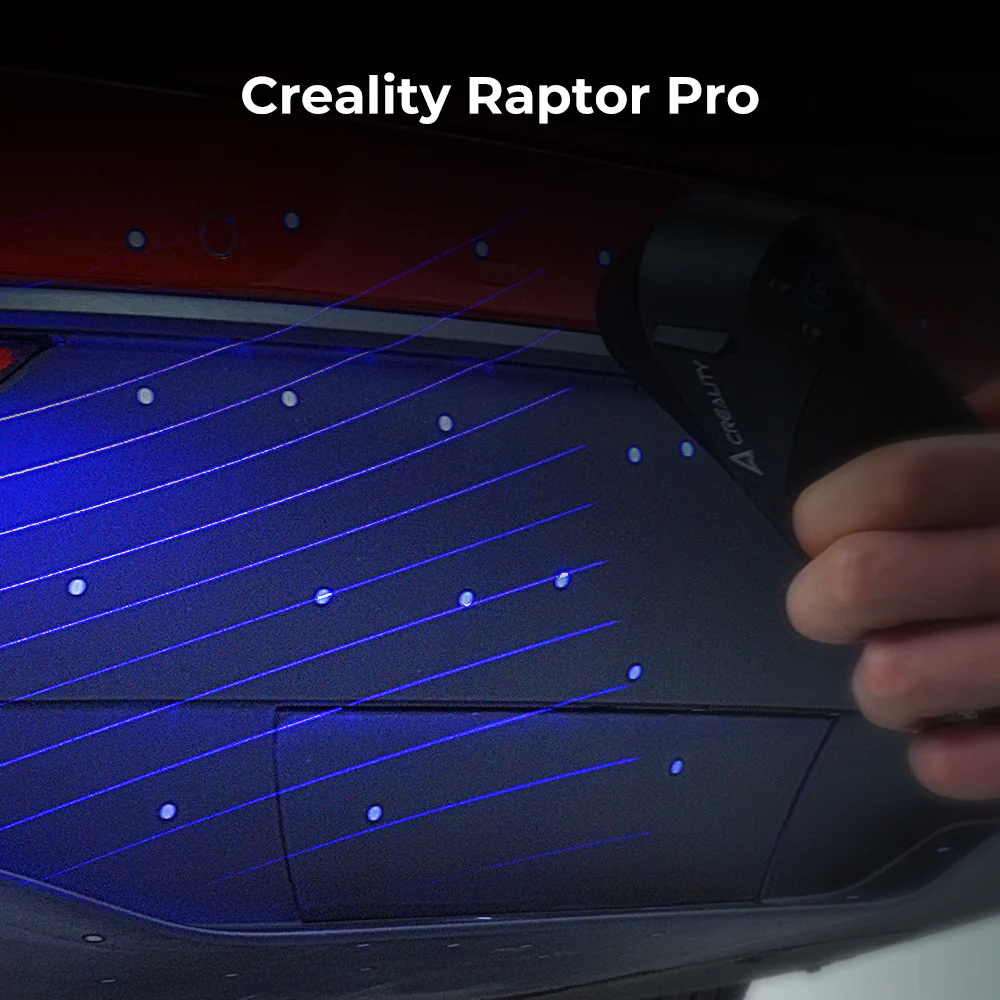

Blue laser lines: Combines 22 cross and 7 parallel blue laser lines for efficient and detailed scanning.
-
NIR structured light: Infrared scanning mode for larger volumes and color capture.
High Precision & Speed
-
Volumetric accuracy: ~0.02 mm + 0.08 mm/m for laser scanning.
-

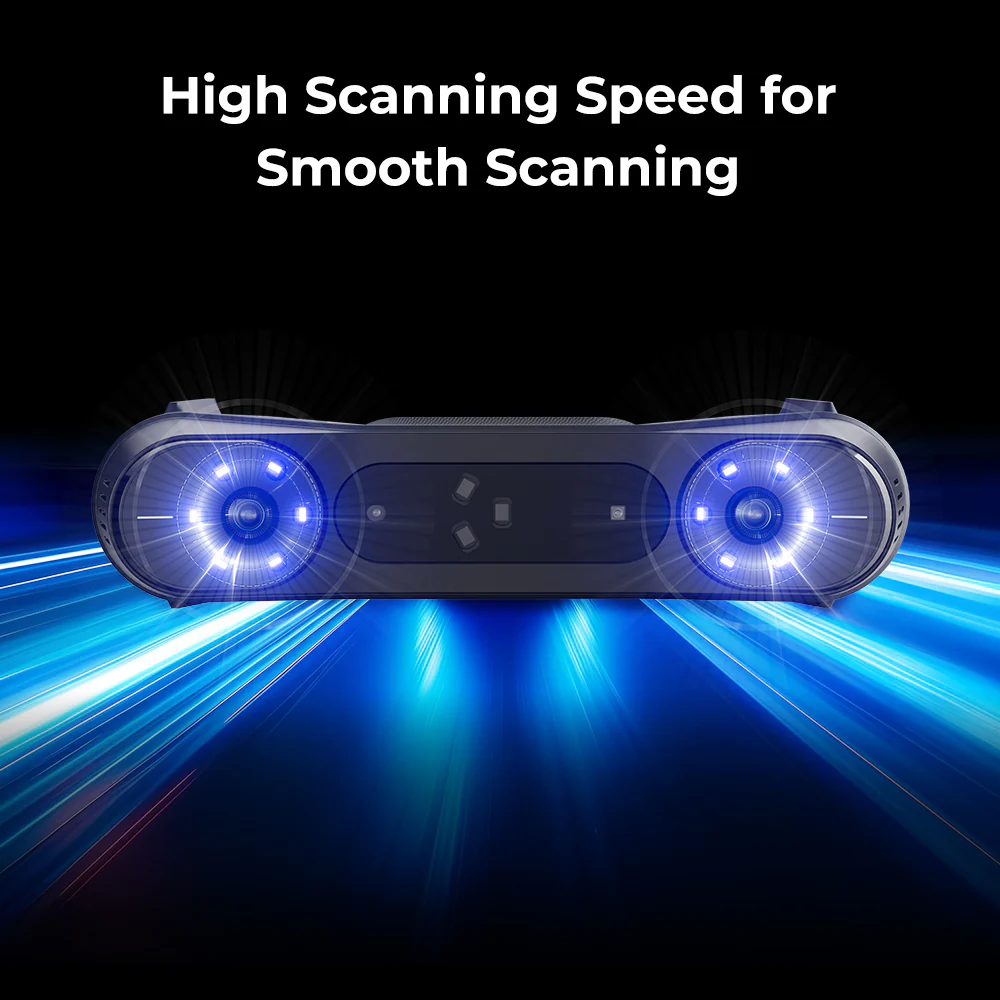

Scan rates:
• Up to 60 fps and 660,000 points/s (laser mode)
• Up to 30 fps (NIR mode)
Wide Scanning Range
-

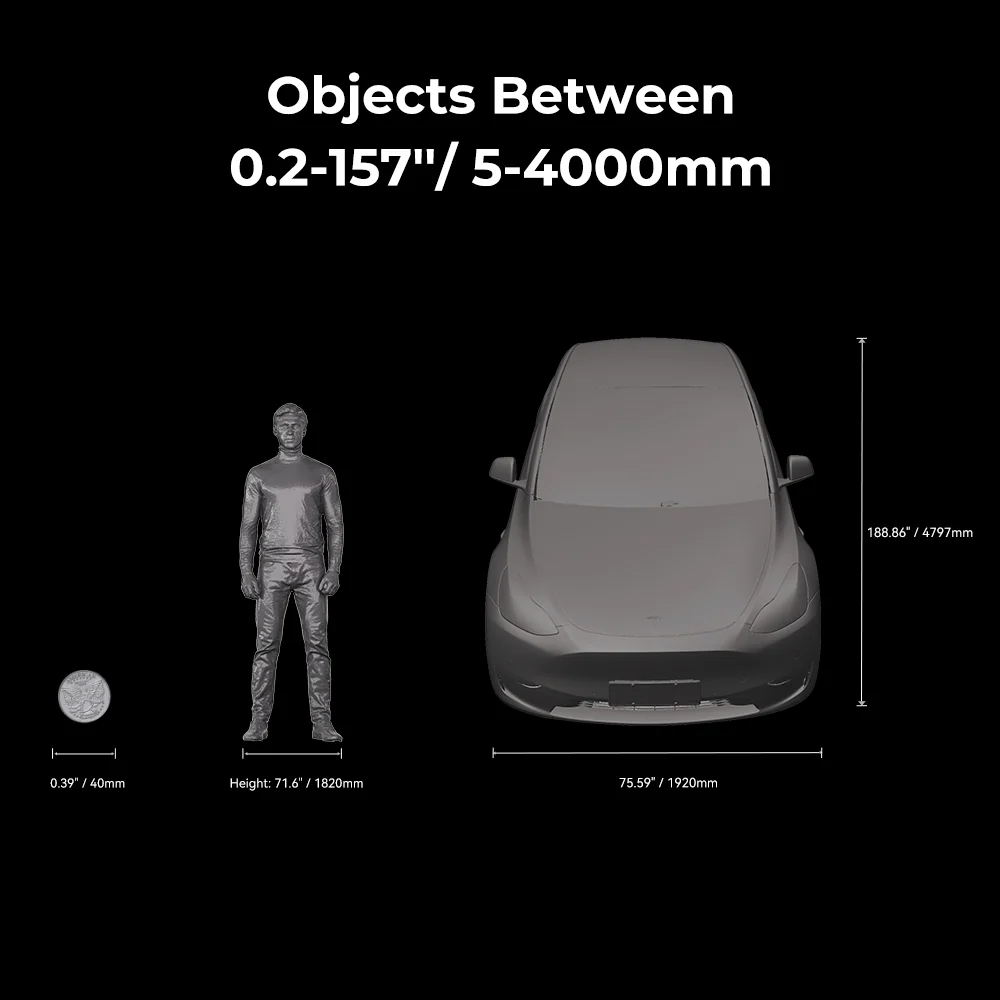

Object size: From 5 mm up to 4000 mm (0.2–157 in).
-
Working distance: ~160–1000 mm depending on mode.
Color & Surface Flexibility
-
24-bit full-color scanning with integrated white light.
-
Can scan black and metal objects without needing spray coating.

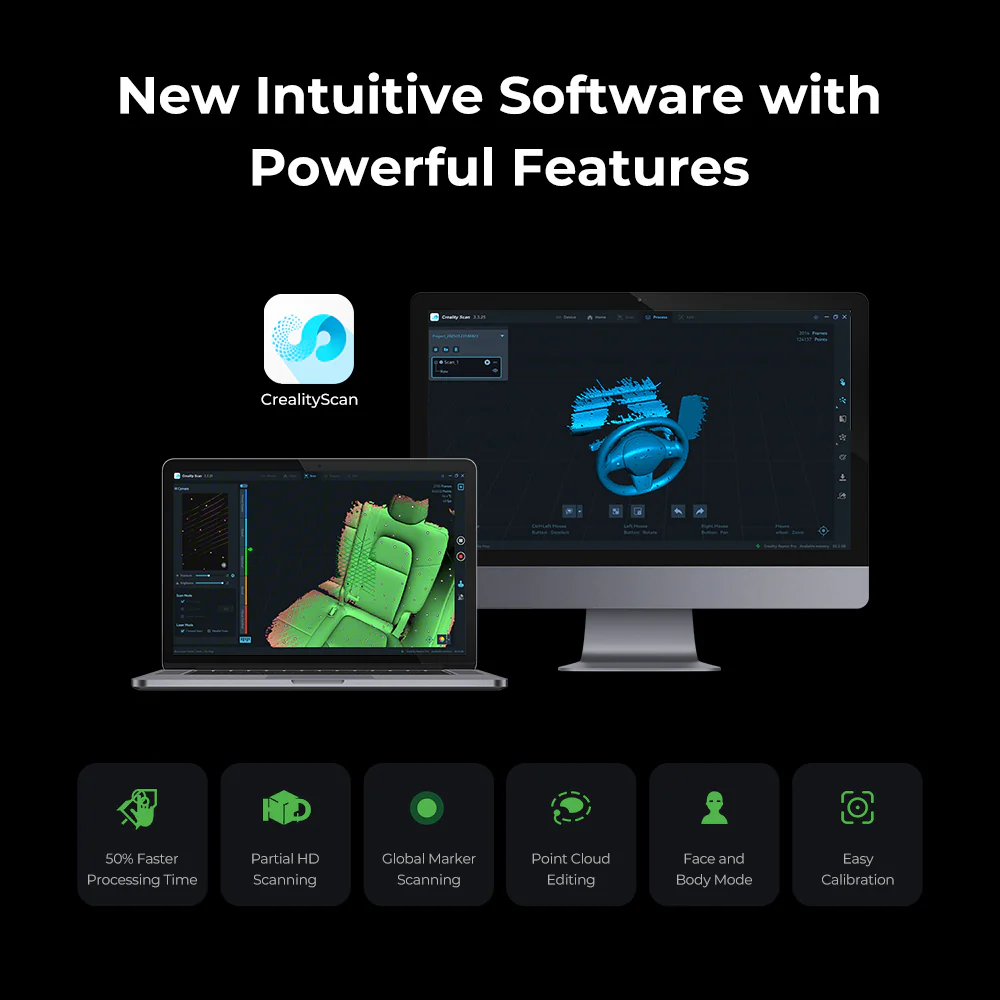

Smart Scanning Software
-
Compatible with advanced scanning tools for mesh editing, alignment modes (marker, geometry, and texture), and efficient point cloud handling.

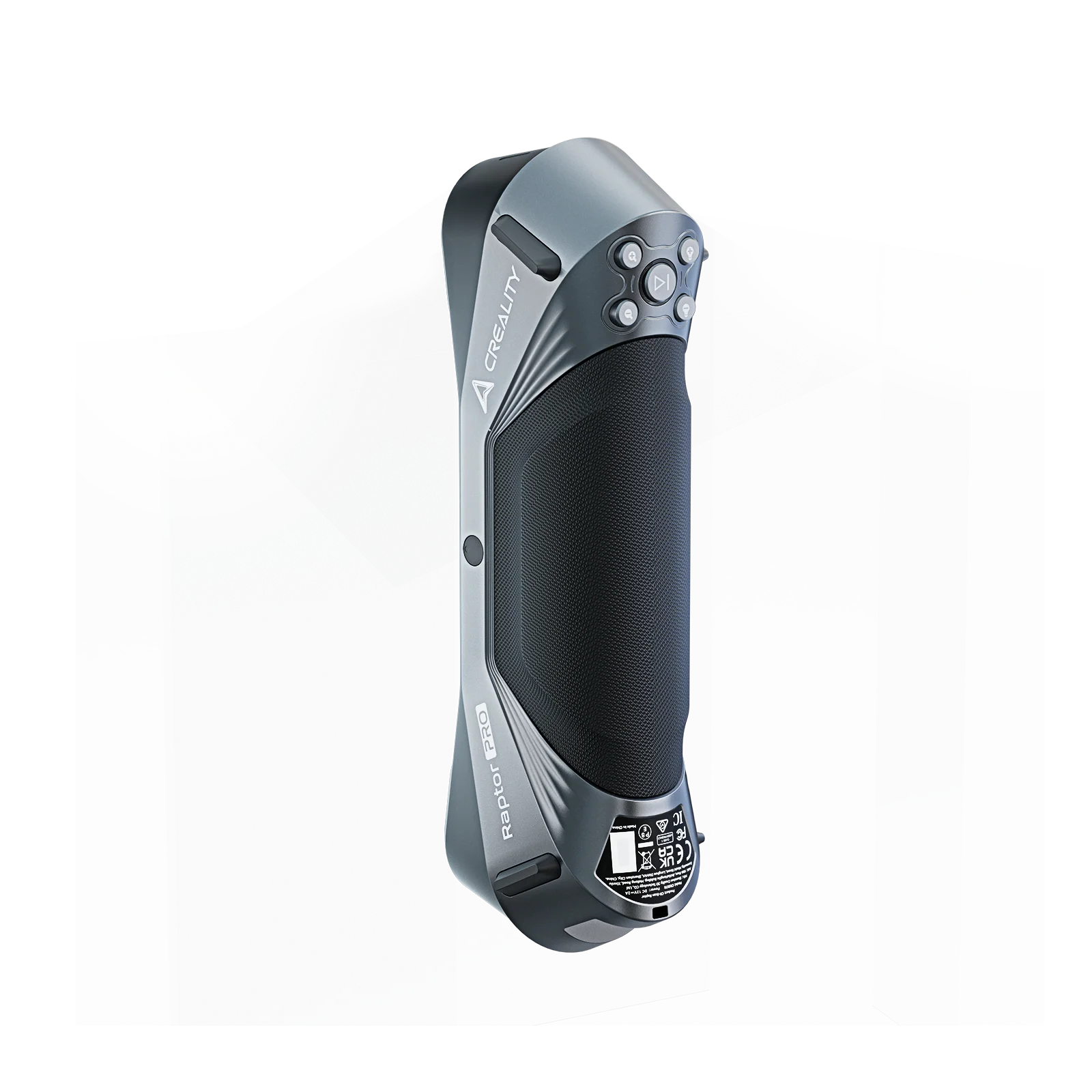

User-Friendly Design
-

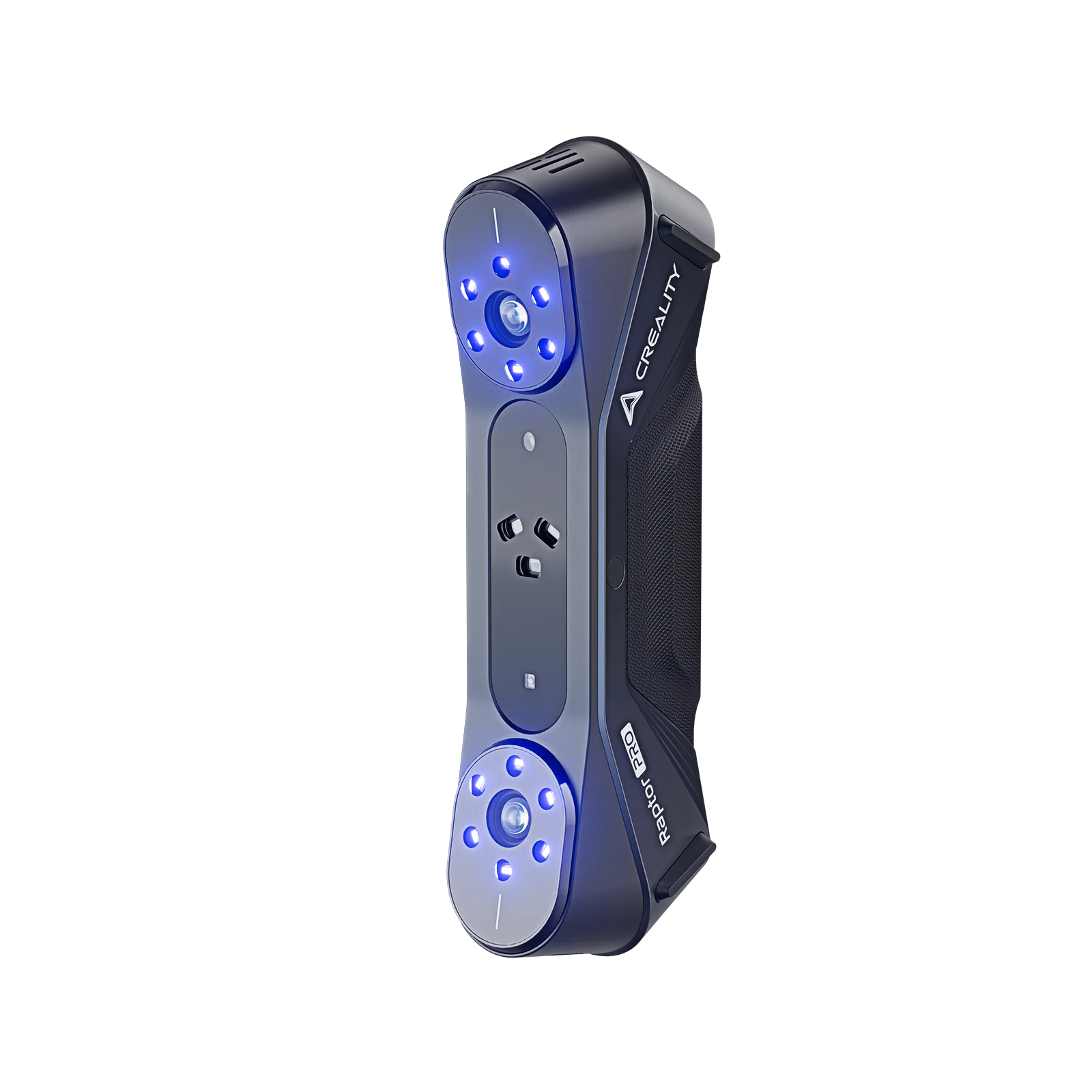

LED ring and onboard buttons simplify handheld scanning.
-
Lightweight and portable for mobile use.
Ideal Use Cases
- Rapid capture for 3D printing preparation
- Reverse engineering mechanical parts
- Cultural preservation and object digitization
- Quality control and inspection
- Body and face scanning (fast human scans)
What’s Included:
- CR-Scan Raptor Pro 3D scanner
- USB-C data cable
- Power adapter & international plugs
- Reflective markers
- Calibration board
- Scanning pad
- Cleaning cloth
- Portable carrying case
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Feature | Specification |
|---|---|
| Scanning Technologies | Blue Laser Lines & NIR Structured Light |
| Laser Accuracy | Up to 0.02 mm |
| Volumetric Accuracy | 0.02 mm + 0.08 mm/m |
| Scanning Speed | Up to 660,000 points/s (laser), 30 fps (NIR) |
| Scan Range | 5 – 4000 mm |
| Working Distance | 160 – 1000 mm |
| Camera Resolution | ~1920 × 1200 |
| Color Capture | 24-bit RGB |
| Output Formats | OBJ, STL, PLY, ASC |
| Interface | USB-C / USB 3.0 |
| OS Support | Windows 10/11 & macOS |
| Weight | ~372-405 g |
| Dimensions | ~215 × 50 × 74 mm |
| Power | 12 V / 2 A |
