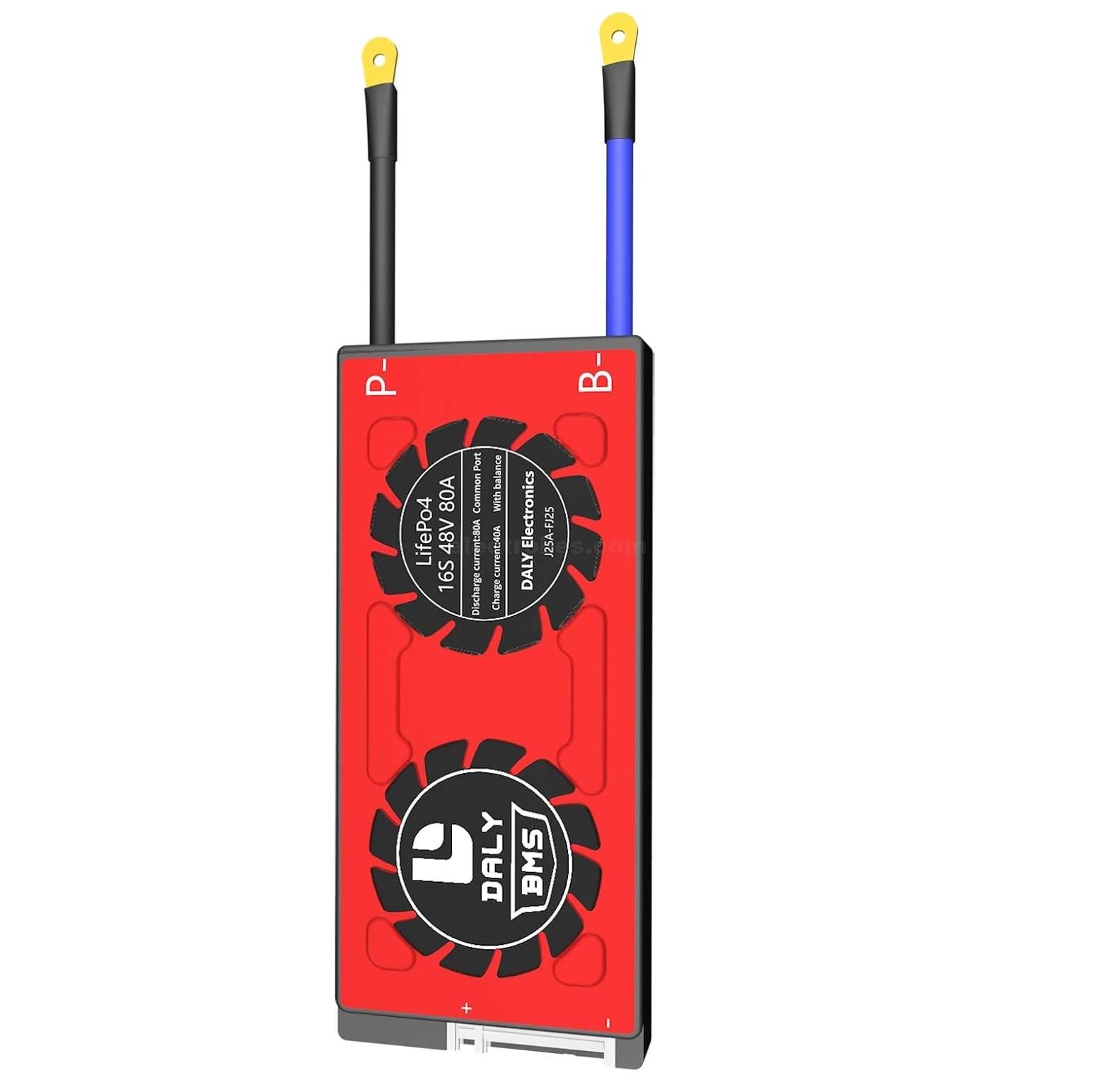

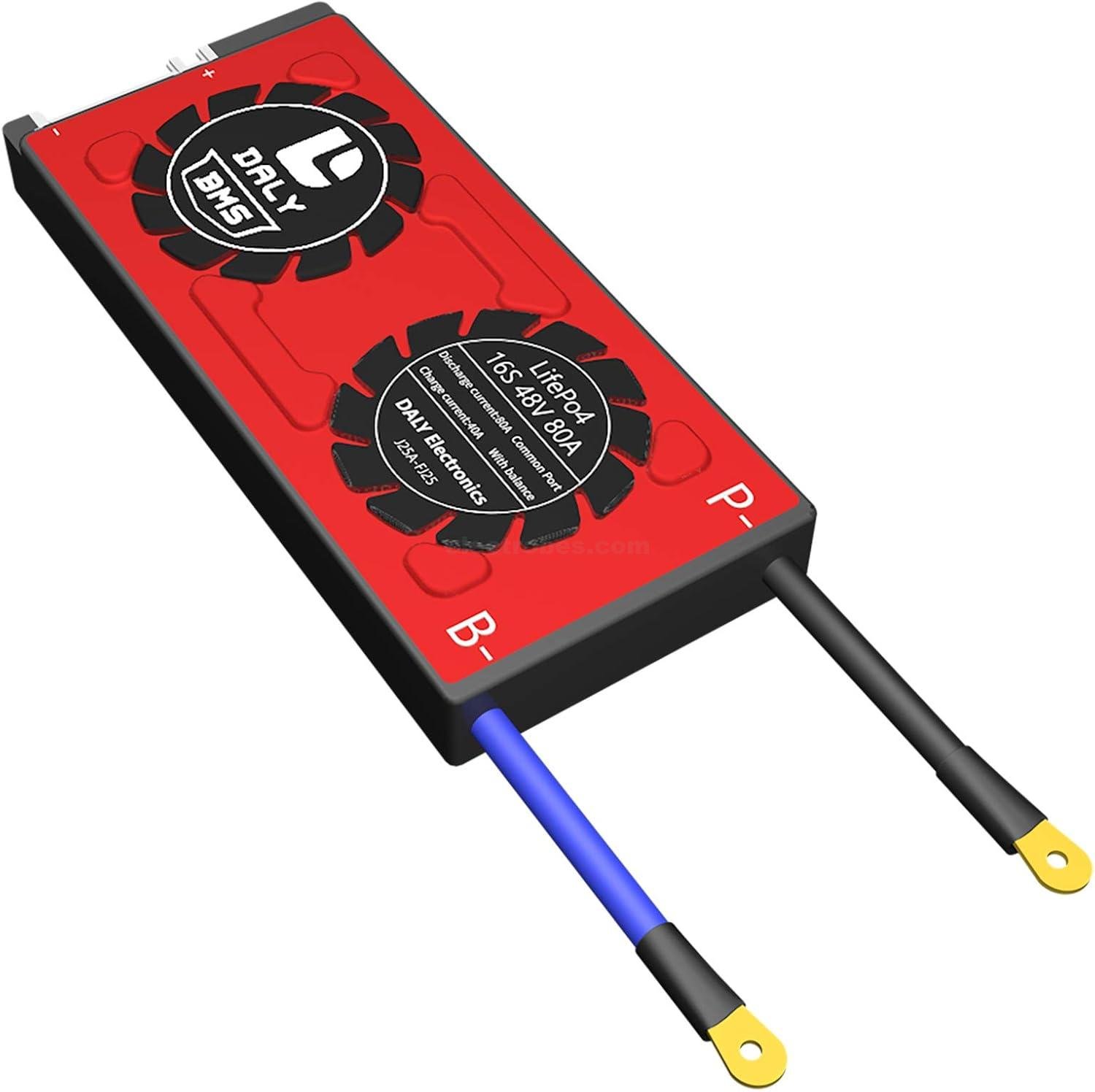

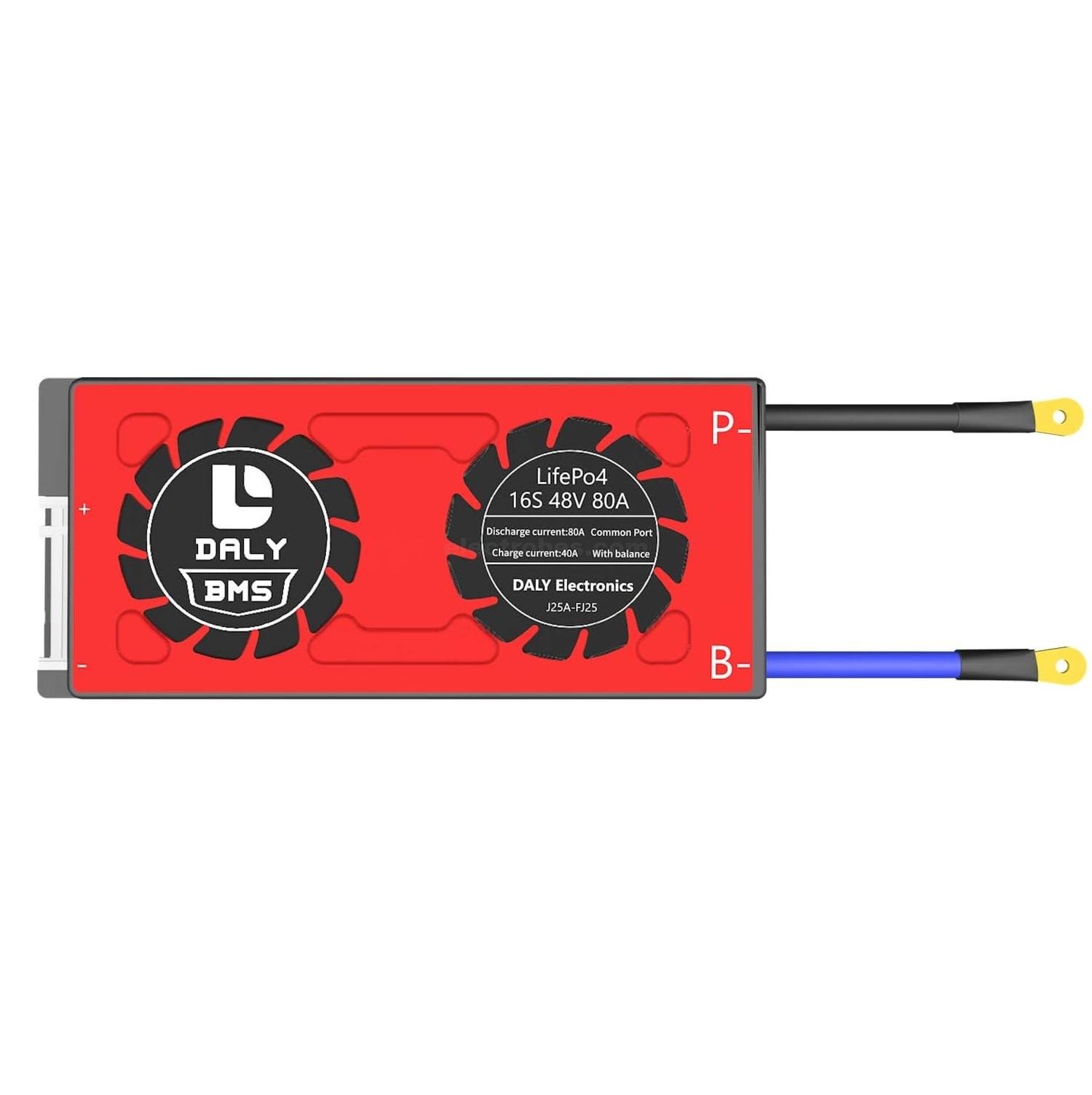

DALY BMS LFP LifePo4 16S 48V 80A BMS Battery Management System for Lifepo4 Battery Pack Balanced Charging Board
DALY BMS 16S 48V LifePO4 PCB Protection Board with Balance Wire and Temperature Sensor for 16 3.2V Cells 48V LiFePO4 Lithium Battery Pack with over-voltage protection charging module. Buy online in Pakistan
In stock
₨ 14,200
In stock
DALY BMS 16S 48V LifePO4 PCB Protection Board with Balance Wire and Temperature Sensor for 16 3.2V Cells 48V LiFePO4 Lithium Battery Pack
Introduction for 16S LFP BMS:
This is a 16S fixed configuration basically it cannot be used for any other battery pack configurations. Because it is only a lithium iron phosphate battery management system only. As a result that they cannot be used for Li-Ion, Li-Metal or LTO batteries. It is strictly for LiFePo4 battery packs only.
Over charge and over discharge protection:
The LiFePo4 battery pack will stop charge after the single cell voltage reaches 3.7V and stop discharge when its voltage reaches 2.5V.
Temperature Protection:
In high temperatures the BMS ranges from 70℃ discharging battery protection.
Meanwhile in low temperatures the BMS ranges up to -20℃ battery protection.
Short circuit protection:
When there is a defect or damage to the circuit at same time the BMS will shut down the whole Battery.
Certifications Approved:
ISO/ FCC/ RoHS/ PSE and CE APPROVED
Applications:
Solar and RV, Electric bikes and Skateboard including camping boats and Power tools, Lawn moving and household energy storage systems etc.
Conclusion:
Most important that it is only a waterproof BMS available in lithium industry.
This BMS is also for all kinds of lithium-ion cells including 18650, 21700, 36500 cylindrical cells and prismatic cells.
Package Includes:
- 16S LiFePo4 80A rated voltage with 48V BMS
- Balanced wire sense cable (17 Wire sense cable with connector)

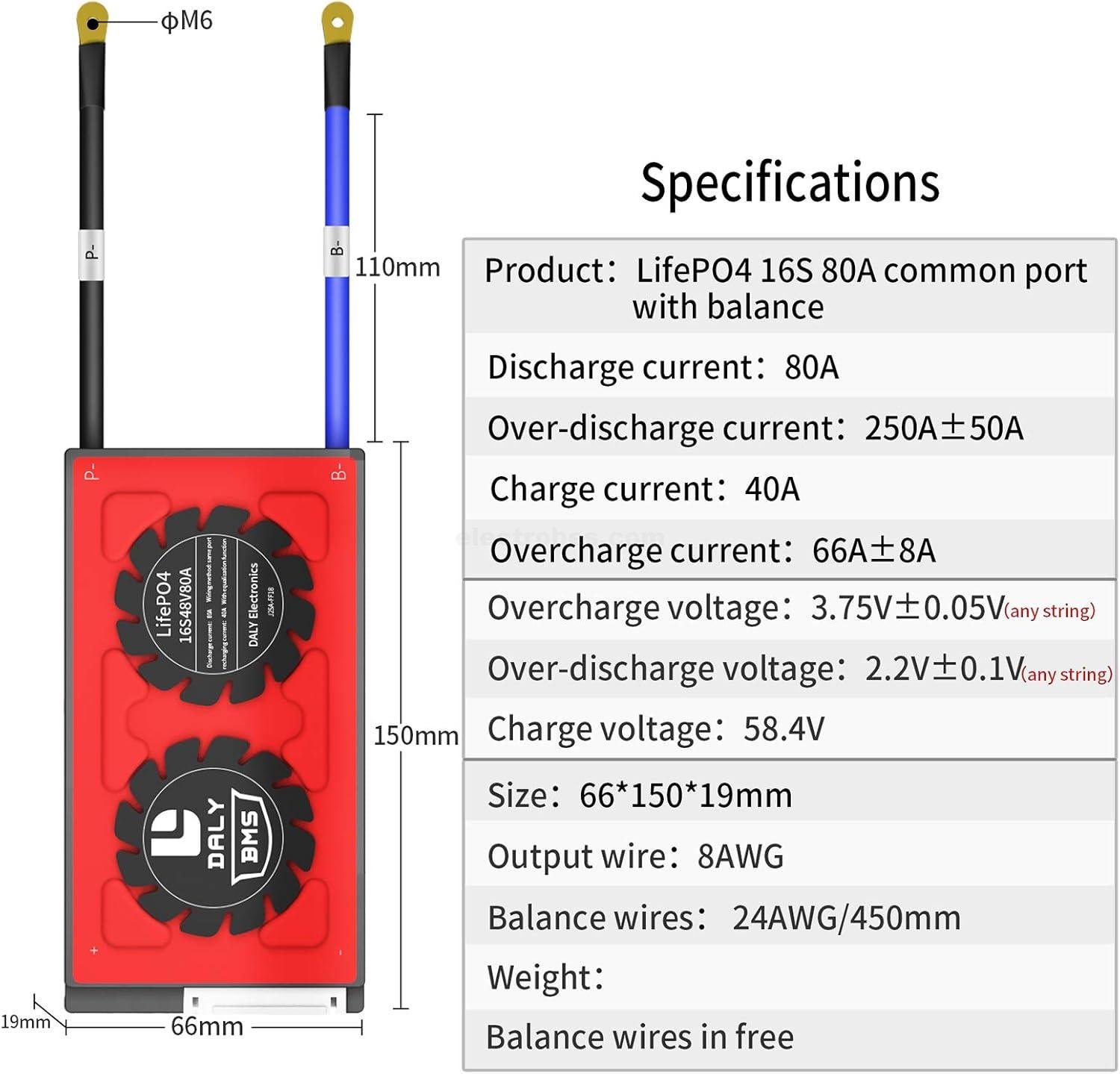

| DESCRIPTION | SPECIFICATION |
|---|---|
| BATTERY TYPE | LiFePo4 |
| Continue discharge current | 80A |
| Peak current | 240±40A |
| main circuit inner resistance | ≤ 20mΩ |
| Charge Voltage | S*3.75V |
| Charge Current | 40A |
| Over charge detect voltage | 3.75 ± 0.05V |
| Over charge protection delay | 1S |
| over charge release voltage | 3.65 ± 0.05V |
| Balance detect voltage | 3.5 V |
| Balance release voltage | 3.5 V |
| Balance current | 30 ± 5 mA |
| Over discharge detect voltage | 2.7 ± 0.1 V |
| Over discharge detect delay | 1S |
| Over discharge release voltage | 2.7 ± 0.1 V |
| Over current detect delay | 1MS |
| Over current detect voltage | Off load |
| Short circuit protection condition | Short circuit external load |
| Short circuit detect delay | 250µS |
| Short circuit protection relay condition | Off load |
| Temp protection | Charge <-5 ͦ C or >50 ͦ Cdischarge < 70 ͦ C |
| working current | 100µA |
| Sleeping current (when in discharge) | 20µA |
| Working temp range | -20 ̴ 70 ͦc |
| Sleeping temp range | -40 ̴ 80 ͦc |
| Weight | 1 Pound |
| Size | 6*2.6*0.8inches |
