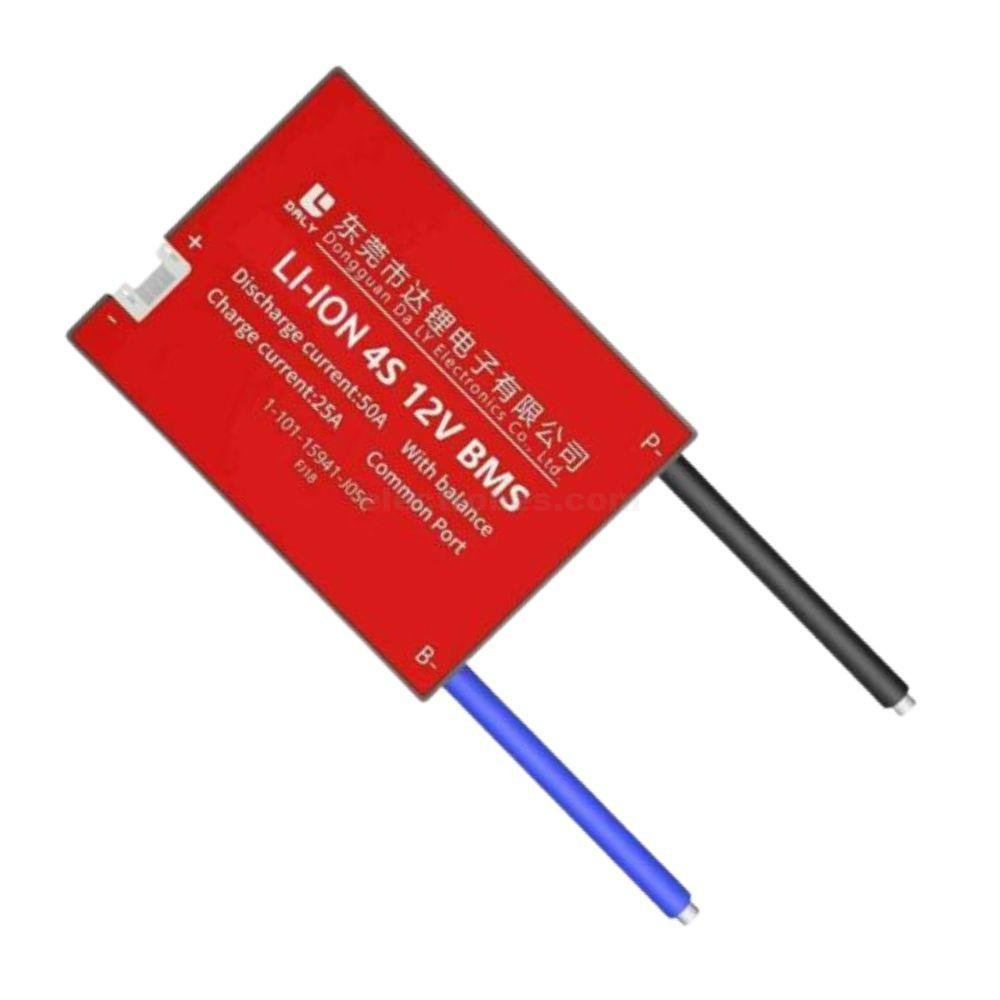

DALY BMS LFP LifePo4 4S 12V 50A BMS Battery Management System for Lifepo4 Battery Pack Balanced Charging Board

DALY BMS 4S 12V LifePO4 PCB Protection Board with Balance Wire and Temperature Sensor for 4 3.2V Cells 12V LiFePO4 Lithium Battery Pack with over-voltage protection charging module. Buy online in Pakistan

Compare
Availability:

In stock

 4,600

In stock

DALY BMS 4S 12V LifePO4 PCB Protection Board with Balance Wire and Temperature Sensor for 4 3.2V Cells 12V LiFePO4 Lithium Battery Pack

Introduction about this BMS:

This is a 4S fixed configuration basically it cannot be used for any other battery pack configurations. Because it is only a lithium iron phosphate battery management system only. As a result that they cannot be used for Li-Ion, Li-Metal or LTO batteries. It is strictly for LiFePo4 battery packs only.

Over charge and over discharge protection:

The LiFePo4 battery pack will stop charge after the single cell voltage reaches 3.7V and stop discharge when its voltage reaches 2.5V.

Temperature Protection:

In high temperatures the BMS ranges from 70℃ discharging battery protection.

Meanwhile in low temperatures the BMS ranges up to -20℃ battery protection.

Short circuit protection:

When there is a defect or damage to the circuit at same time the BMS will shut down the whole Battery.

Certifications Approved:

ISO/ FCC/ RoHS/ PSE and CE APPROVED

Applications:

Solar and RV, Electric bikes and Skateboard including camping boats and Power tools, Lawn moving and household energy storage systems etc.

What you will get:

  • 4S LiFePo4 50A rated voltage with 12V BMS
  • Balanced wire sense cable (5 Wire sense cable with connector)
  • Instruction Manual

Conclusion:

Most important that it is only a waterproof BMS available in lithium industry.

This BMS is also for all kinds of lithium-ion cells including 18650 ,21700, 36500 cylindrical cells and prismatic cells.

Package Includes:

1 x 4S 12V 50A LifePo4 BMS

1 x Connecting Cable

DESCRIPTIONSPECIFICATION
BATTERY TYPELi-ion
Continue discharge current50A
Peak current150A±25A
main circuit inner resistance≤ 20mΩ
Charge VoltageS*4.25V
Charge Current25A
Over charge detect  voltage4.25 ± 0.05V
Over charge protection delay      1 Sec
over charge release voltage4.15 ± 0.05V
Balance detect voltage4.18V
Balance release voltage4.18V
Balance current30± 5mA
Over discharge detect voltage2.7 ± 0.1V
Over discharge detect delay1 Sec
Over discharge release voltage3.0 ± 1.0V
Over current detect delay1 mS
Over current detect voltageOFF LOAD
Short circuit protection conditionShort circuit external load
Short circuit detect delay250µS
Short circuit protection  relay conditionOff load
Temp protectionCharge  <-5  ͦ or >50  ͦdischarge < 70  ͦ
working current100µA
Sleeping current (when in discharge)20µA
 Working temp range-20   ̴ 70 ͦc
Sleeping temp range -40   ̴ 80 ͦc
Weight5.5 ounces
Size2.5*3.1*0.6 inches
